GAS SERIES
/
BALL VALVES FOR GAS
/
9F00
BALL VALVES FOR GAS

9F00

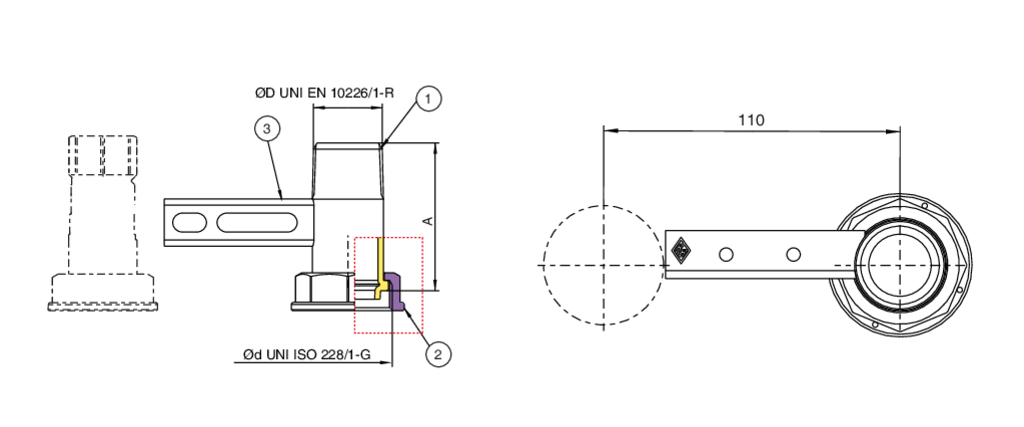

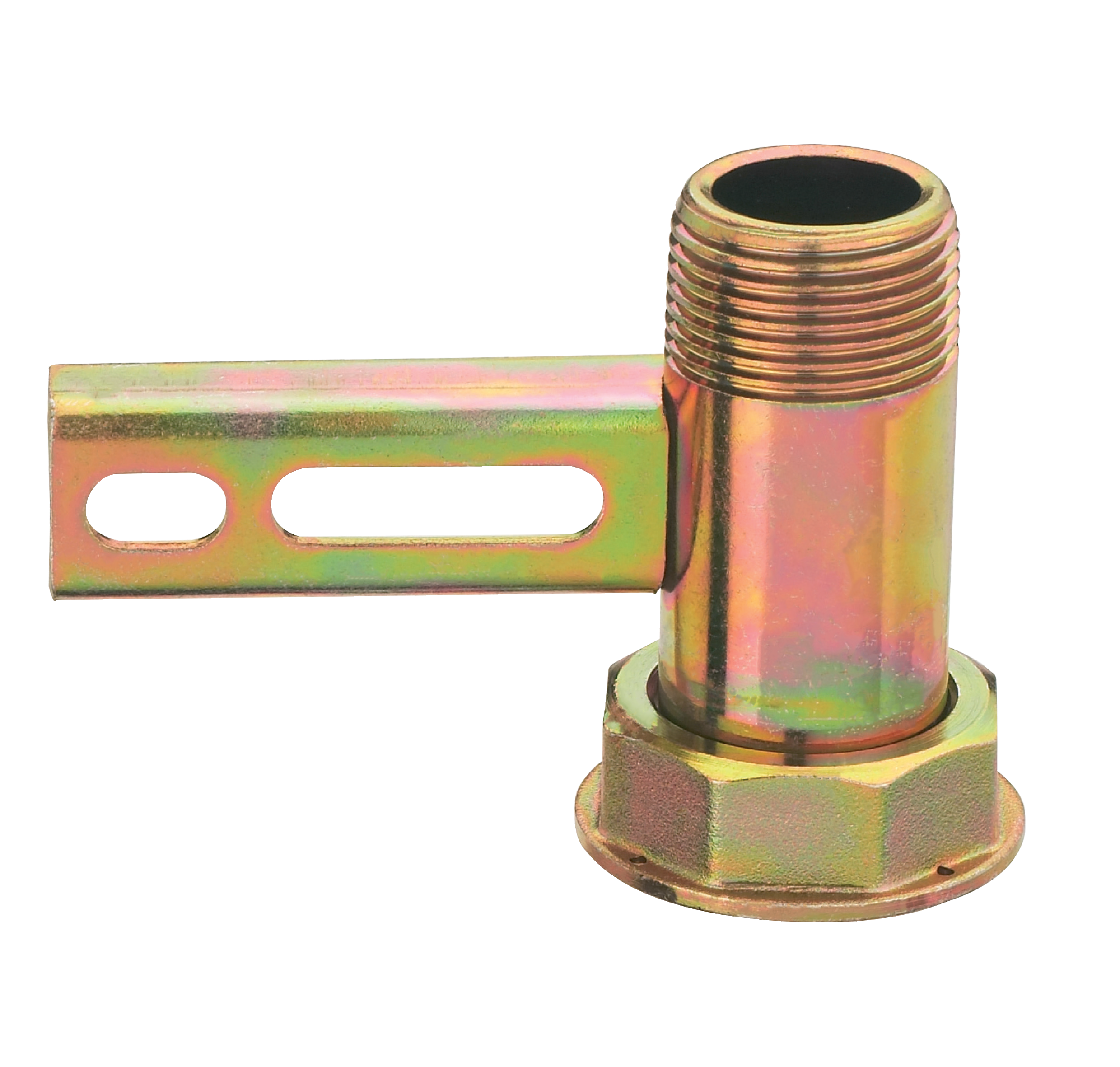

Steel cross beam, center distance 110 mm, with threaded union tail  EN 10226-1, without fixing plate.

Technical specifications
Position Part name Material Treatment N.° pieces
1 UNION TAIL STEEL S235JR UNI EN 10025 ZINC TROPICALIZED 1
2 NUT BRASS CW617N UNI EN 12165 ZINC TROPICALIZED 1
3 BEAM STEEL S235JR UNI EN 10025 ZINC TROPICALIZED 1
4 SUPPORT STEEL S235JR UNI EN 10025 ZINC TROPICALIZED 1
5 PLATE STEEL UNI 7070 ZINC TROPICALIZED 1
6 NUT STEEL ZINC COATING 1
7 SCREW STEEL ZINC COATING 2
ØD x Ød MASTER BOX CODE A
1/2" x 3/4" 25 9F00260000 63
1/2" x 1"1/4 25 9F00790000 74
1" x 1"1/4 25 9F00290000 70,5
Applications
