BALL VALVES FOR GAS

947 E

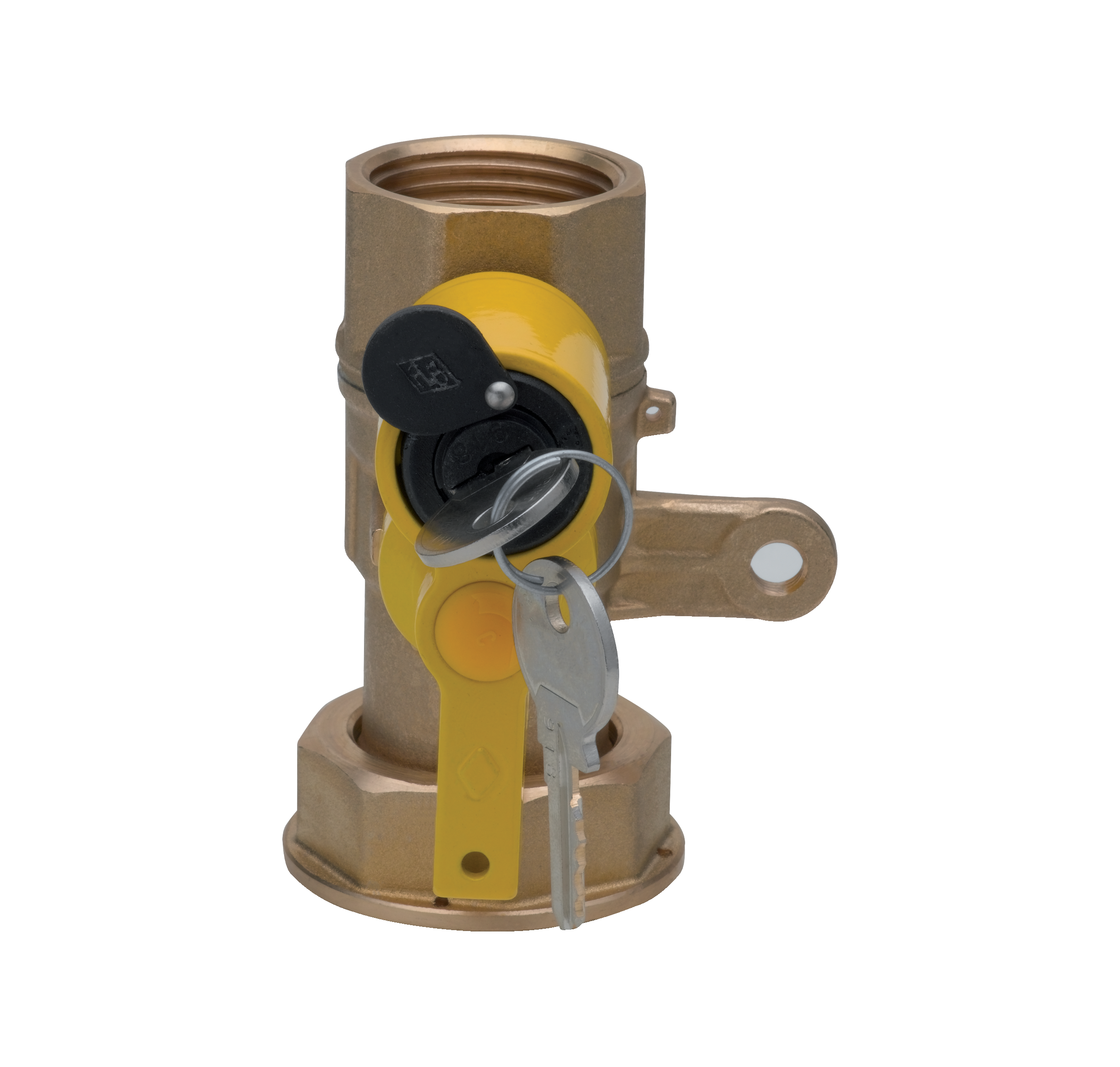

Ball valve for gas meter, with connection for meter bracket and security lock.

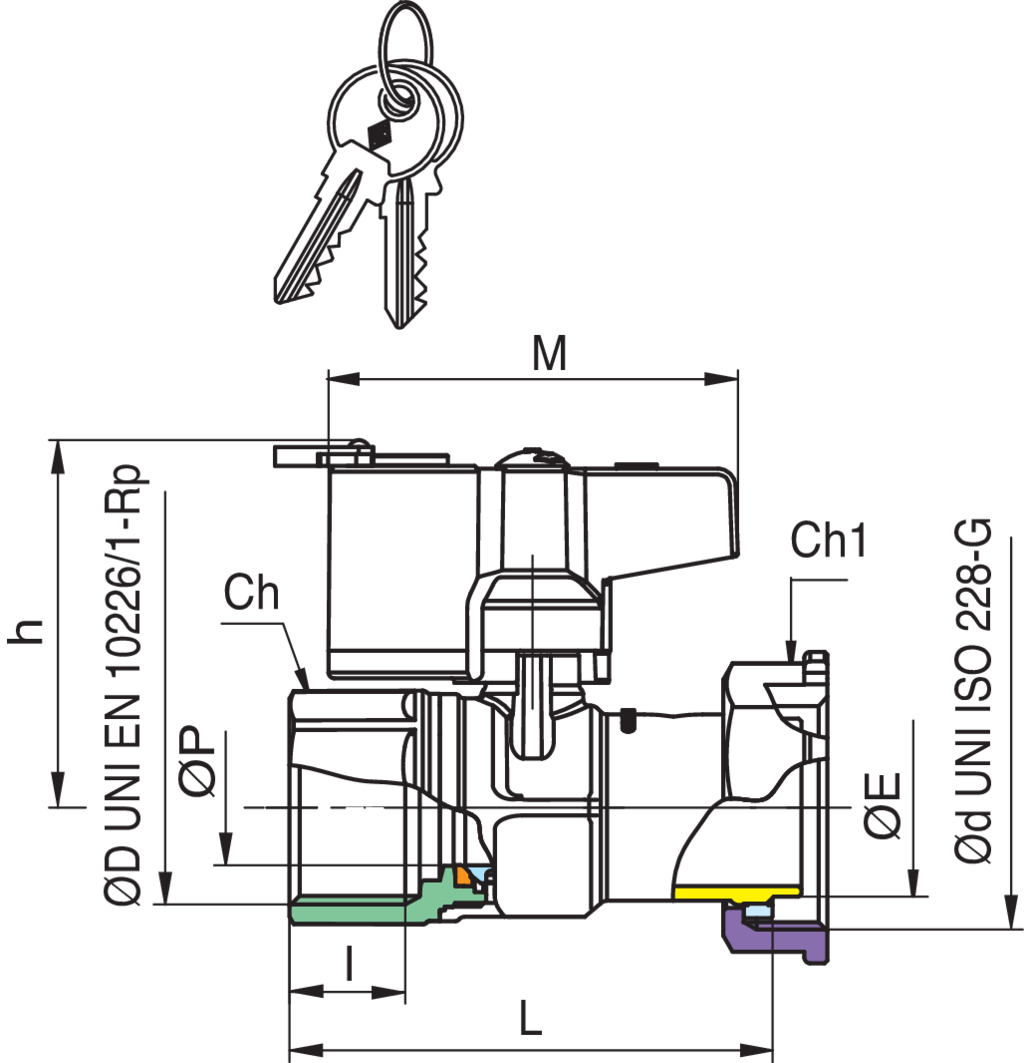

Technical specifications

ØD x Ød	BOX	MASTER BOX	CODE	ØP	I	Ch	Ch1	L	h	ØE	M	MOP	Kg
1'' x 1''1/4	-	25	947E290025	20	19,1	38	46	83,5	63	30,5	71	5	0,56
1'' x 1''1/4	-	25	947E291925	22	19,1	38	46	82,5	64,5	30,7	71	5	0,60
3/4'' x 1''1/4	-	25	947E280025	16	16,3	31	46	76,5	61	30,5	71	5	0,48

Temperature range: -20°C +60°C.
