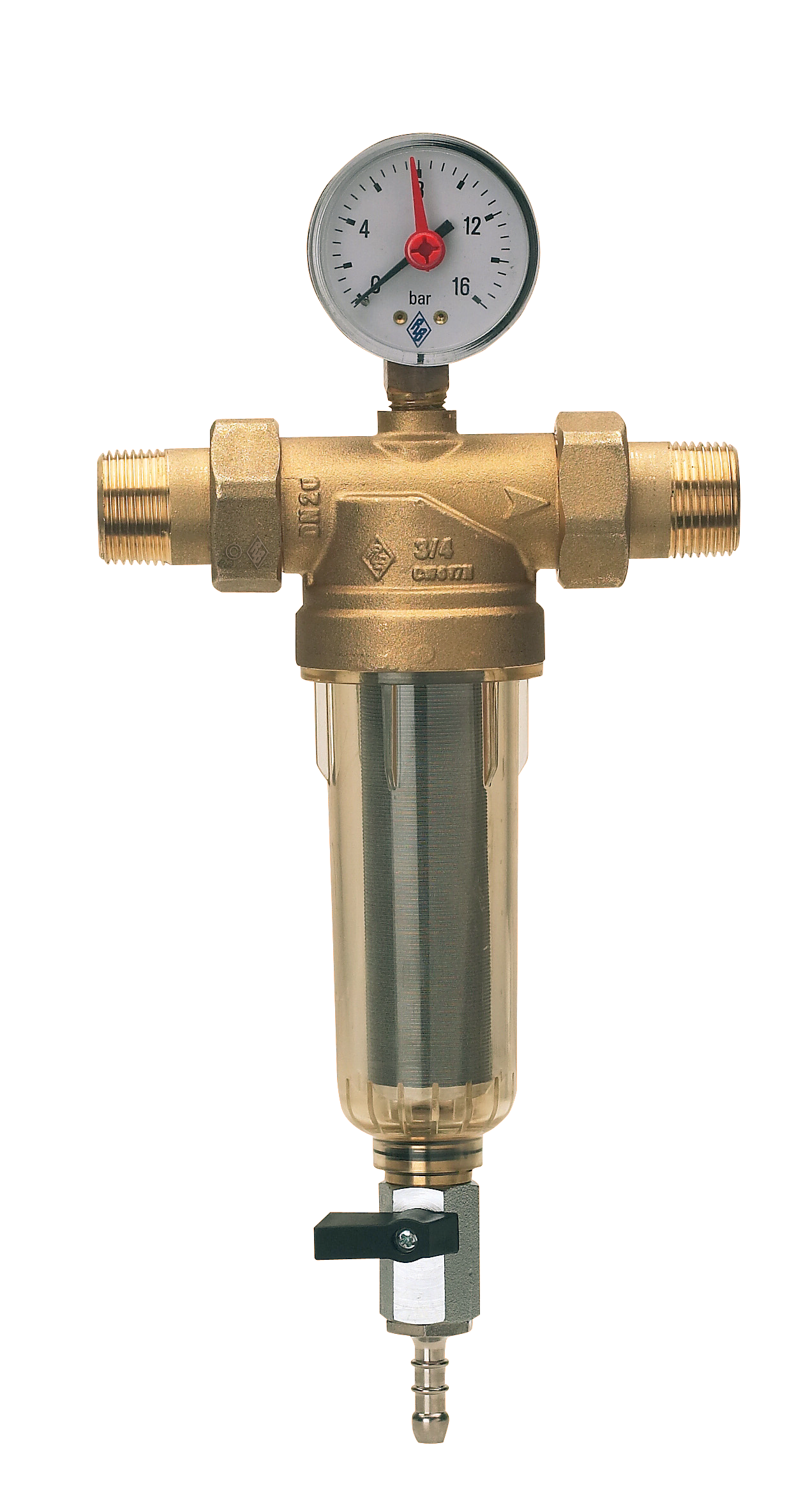

Self-cleaning strainer, 100 micron mesh, with nut and union.
Technical specifications

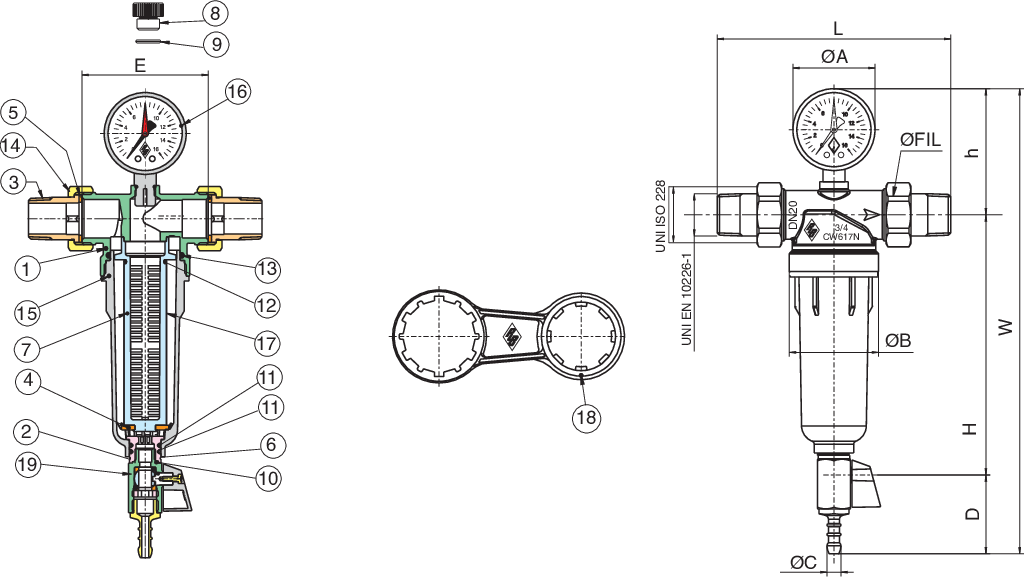

Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12165
1
2
SEEGER
HARMONIC STEEL
1
3
MALE UNION TAIL
BRASS CW617N UNI EN 12165
2
4
FLAT SEAT
NBR
1
5
FLAT SEAT
GREEN ECOLOGICAL FIBER
2
6
CONNECTION
BRASS CW614N UNI EN 12164
1
7
STREINER SUPPORT
POM
1
8
PRESSURE GAUGE CAP
POM
1
9
O-RING
NBR
1
10
O-RING
EPDM
1
11
O-RING
EPDM
2
12
O-RING
EPDM
1
13
O-RING
EPDM
1
14
NUT
BRASS CW617N UNI EN 12165
2
15
BOWL
PSU
1
16

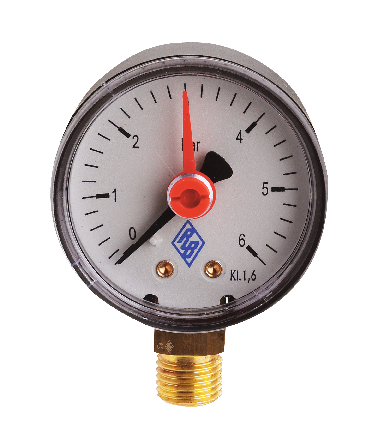

PRESSURE GAUGE
-
1
17
METALLIC STRAINER
STAINLESS STEEL AISI 304
1
18
SERVICE KEY
PA6.6
1
19
DRAIN VALVE
-
1
SIZE
DN
BOX
MASTER BOX
CODE
ØFIL
W
h
H
ØA
ØB
ØC
ØD
E
L
Kv
PN
Kg
1/2"
15
1
6
30020004
3/4"
289
77
162
52
56,5
9
50
80
140
4,4
16
0,80
3/4"
20
1
6
30020005
1"
295
80
165
52
56,5
9
50
80
148
7,5
16
0,90
1"
25
1
2
30020006
1"1/4
301
83,5
167
52
56,5
9
50
100
180
8,5
16
1,28
Nominal operating temperature: equal to 30 °C, in compliance with UNI EN 13443-1 standard - for different operating conditions, consult the technical staff of Rubinetterie Bresciane Bonomi.
