JUNIOR-SFER

1301

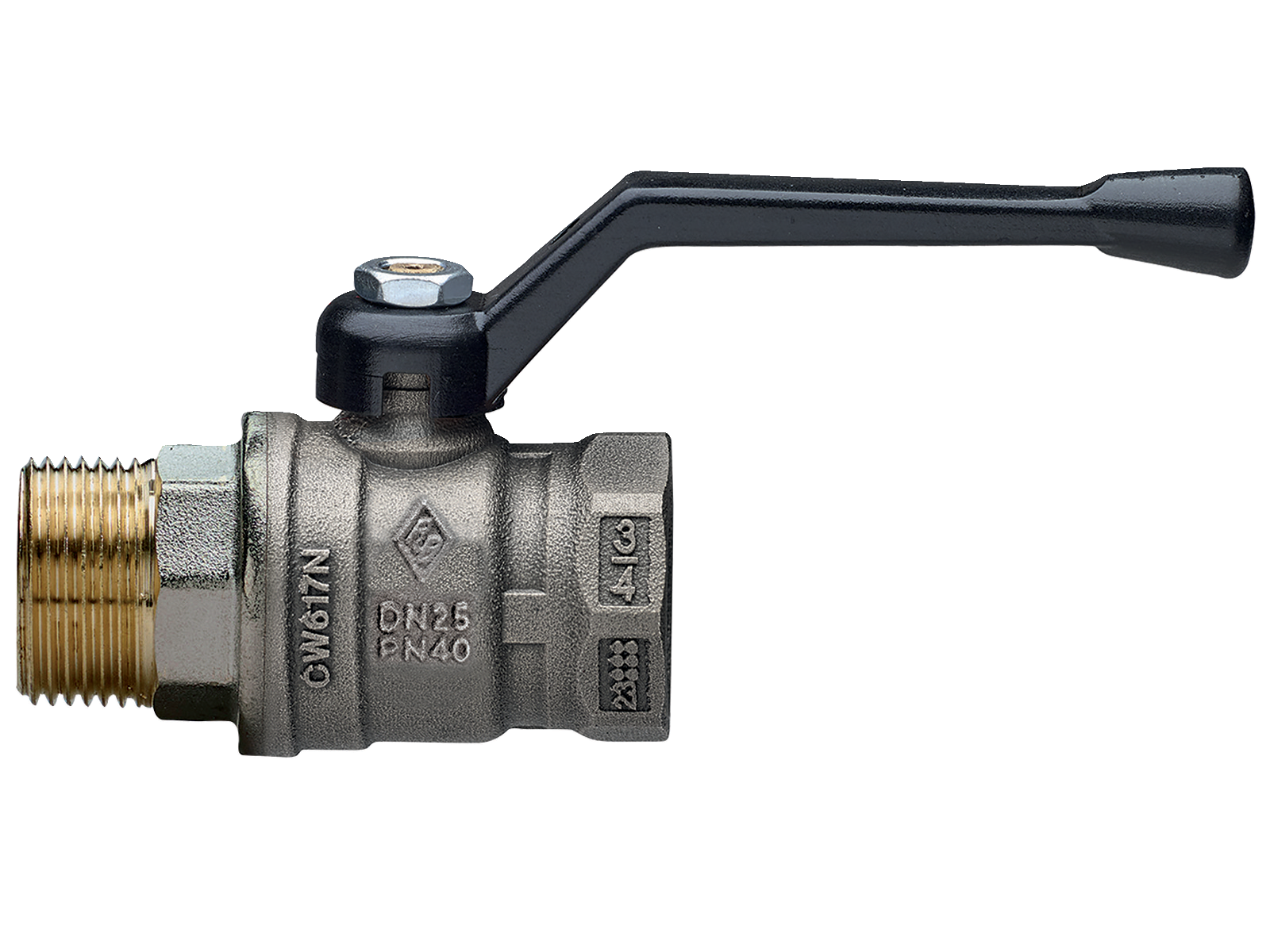

Full bore ball valve, M/F threaded, with aluminium handle.

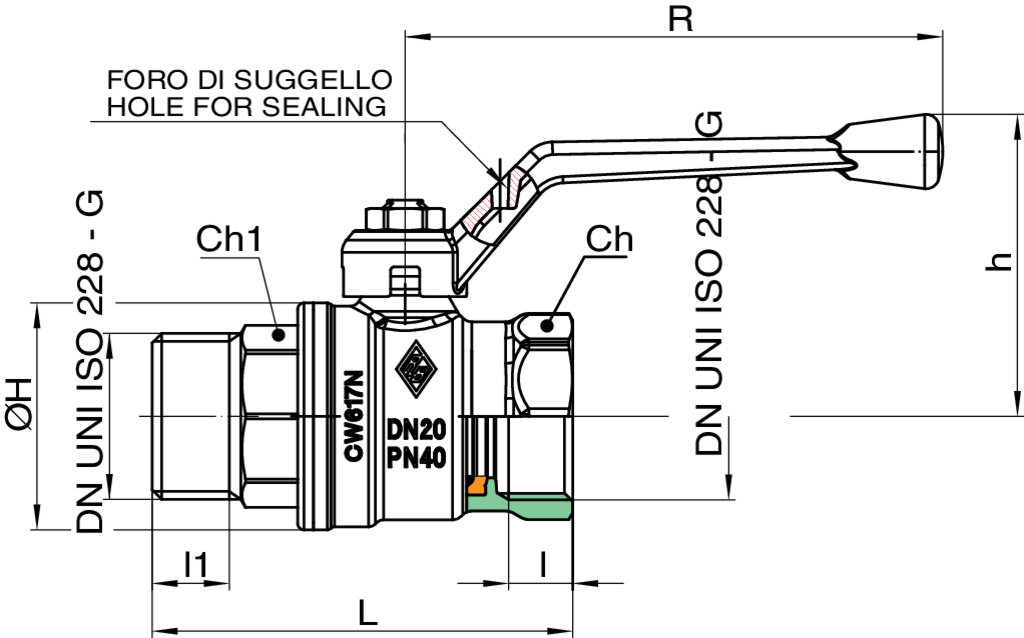

Technical specifications

SIZE	DN	BOX	MASTER BOX	CODE	I	Ch	ØH	L	h	R	Kv	PN	Kg
1/2''	15	20	80	1301040000	11	25	28,5	46,5	45	85	16,3	40	0,14
3/4"	20	10	40	1301050000	12	31	36	53	48	85	29,5	40	0,21
1"	25	10	20	1301060000	14	37,5	43,5	63,5	57	105	43	40	0,35
1"1/4	32	6	12	1301070000	16	47	53	76	62	105	89	25	0,50
1"1/2	40	4	8	1301080000	17,5	53	67,5	90	82	130	221	25	0,89
2"	50	2	4	130110000	19	65	80	103	87	130	265	25	1,30

Temperature range: -20°C + 160°C.
