PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
599200
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
599200

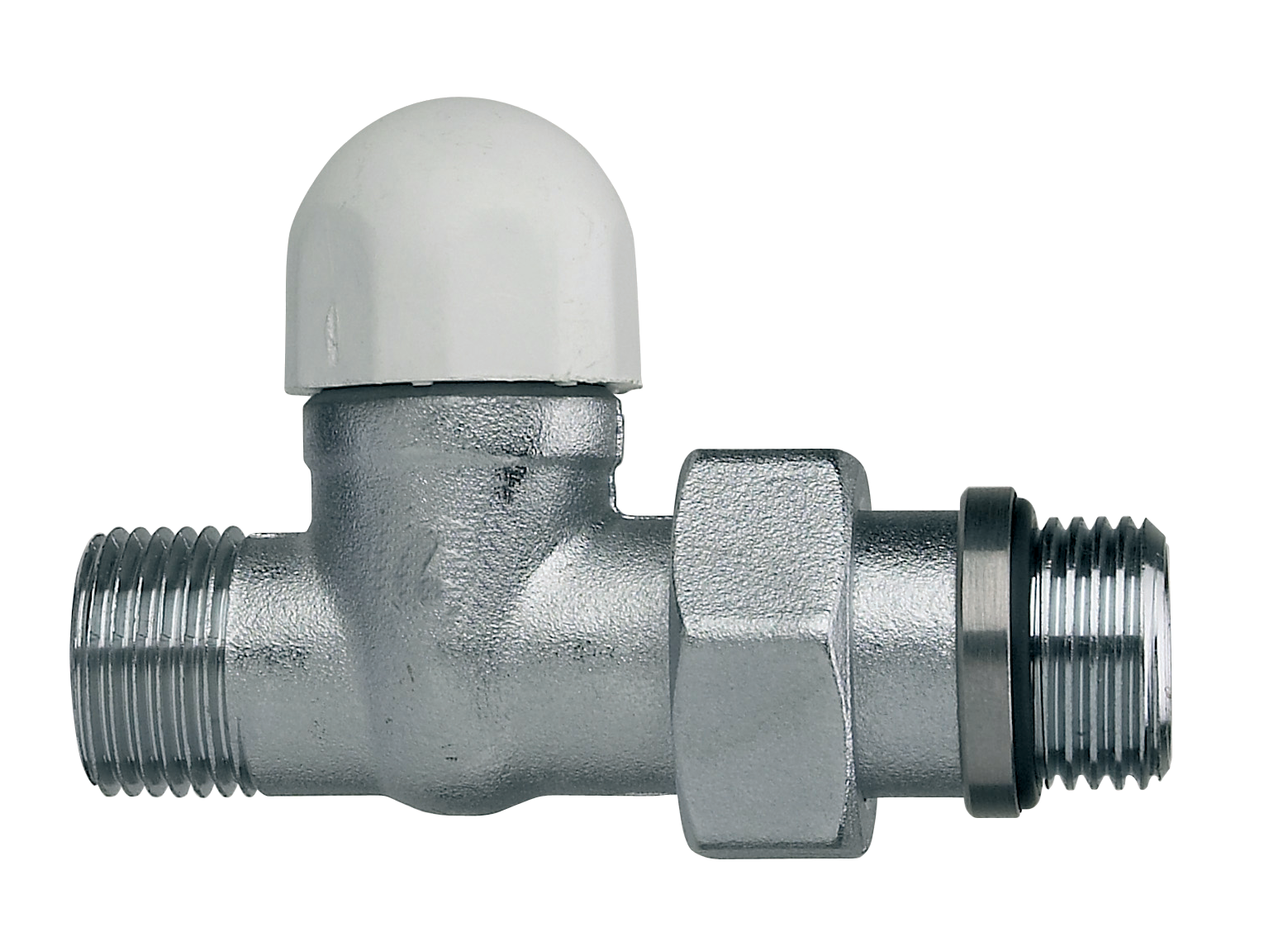

Straight lockshield copper multilayer pipe connections.

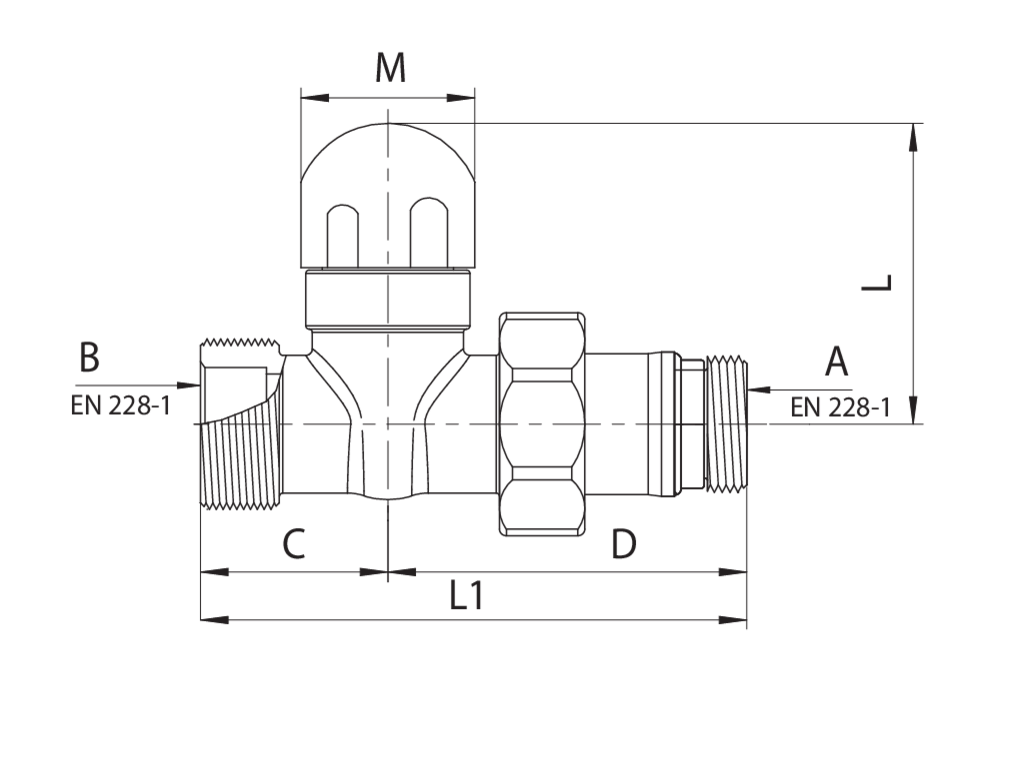

Technical specifications
TRATTAMENTO - TREATMENT
A
B
BOX
MASTER BOX
CODE
C
D
L1
L
M
Nichelato - Nickel plated
3/8"
16 x 1/2"
15
90
5992000403
30
50
80
45
27
Nichelato - Nickel plated
1/2"
16 x 1/2"
15
90
5992000404
30
53
83
45
27
