PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
599105
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
599105

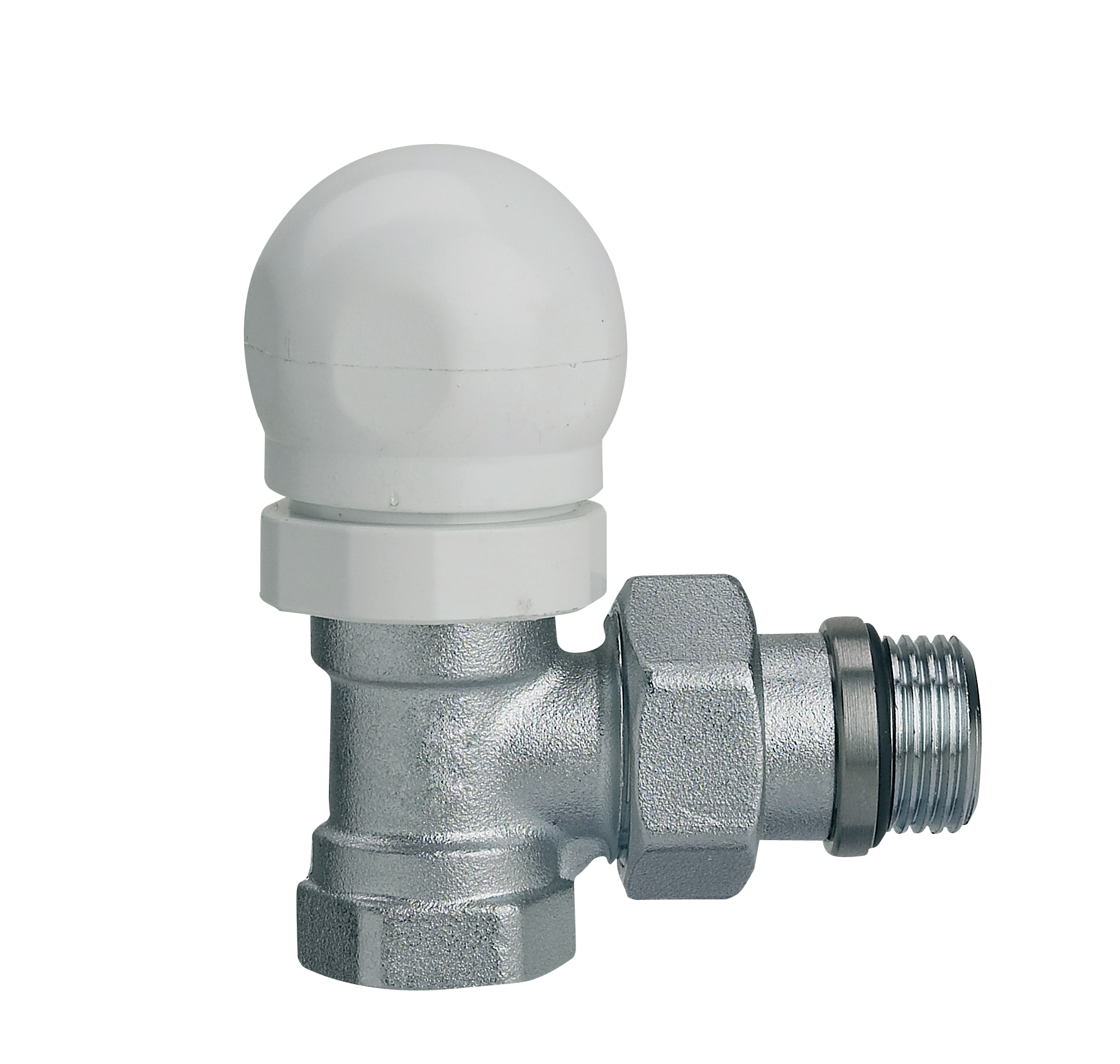

Angle valve with thermostatic option iron pipe connections.

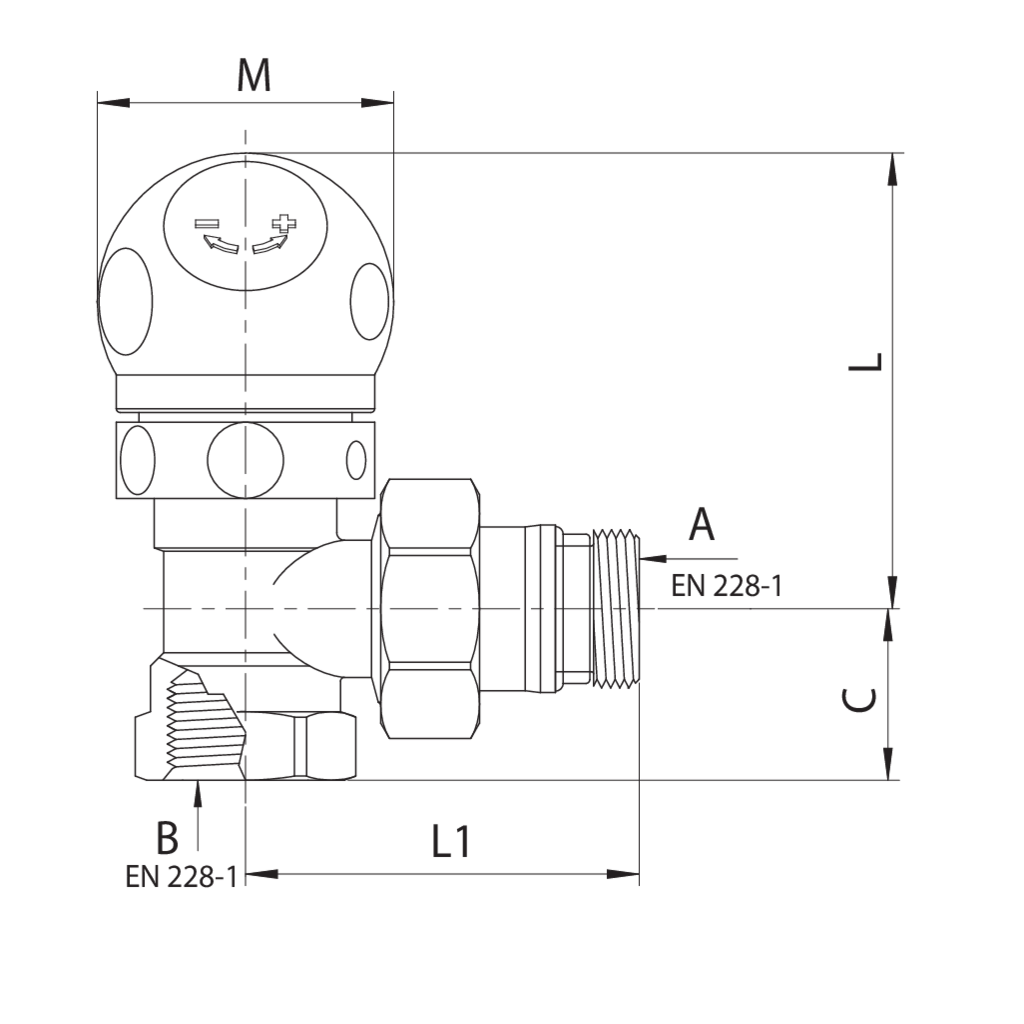

Technical specifications
TRATTAMENTO - TREATMENT
A x B
BOX
MASTER BOX
CODE
C
L
L1
M
Nichelato - Nickel plated
3/8" x 3/8"
15
90
59910503
20
50
60
39
Nichelato - Nickel plated
1/2" x 1/2"
15
90
59910504
23
54
60
39
Nichelato - Nickel plated
3/4" x 3/4"
10
60
59910505
26
60
60
39
