PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
591200
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
591200

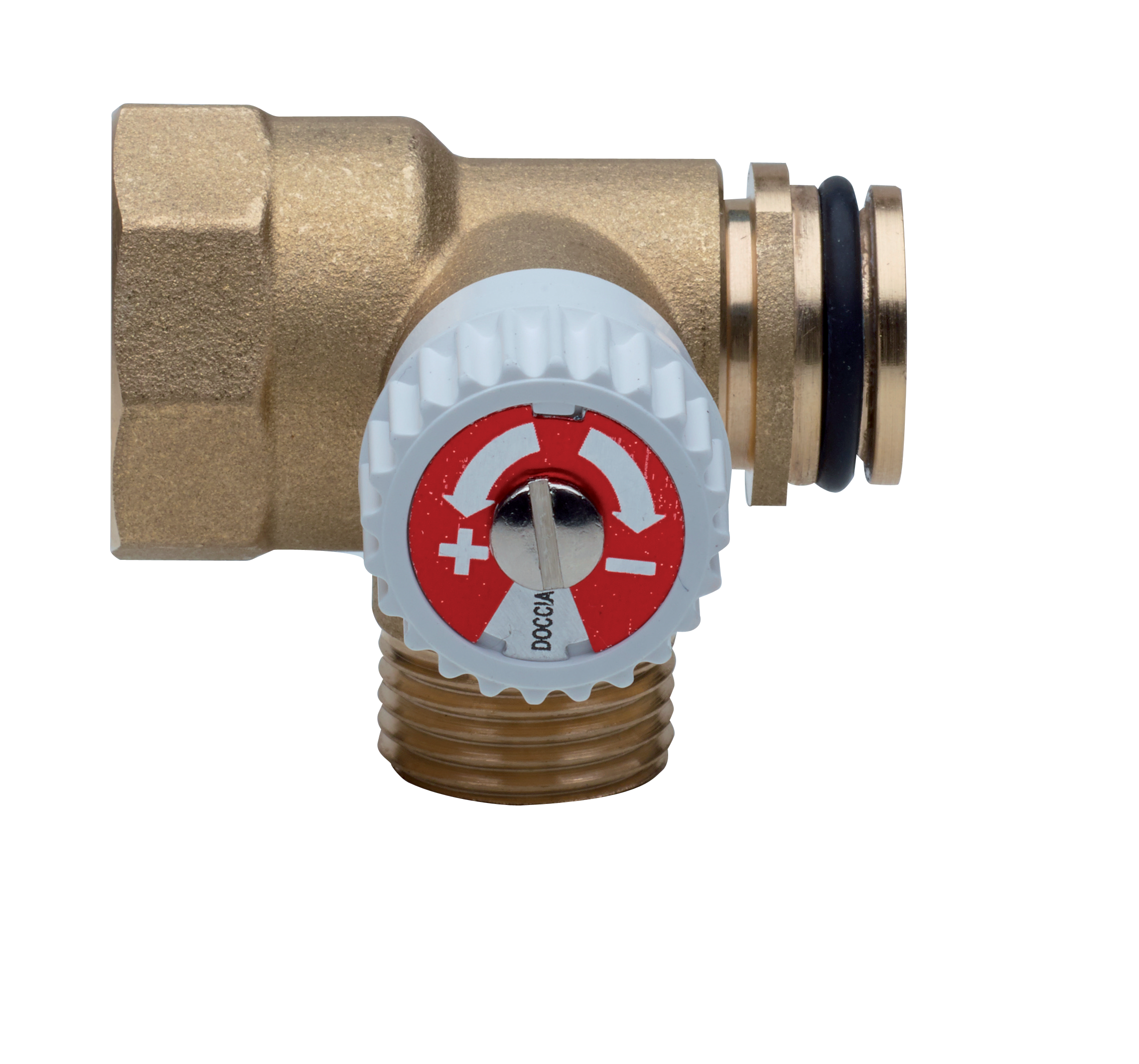

Discharge module, female, with shut-off valve for composable manifold.

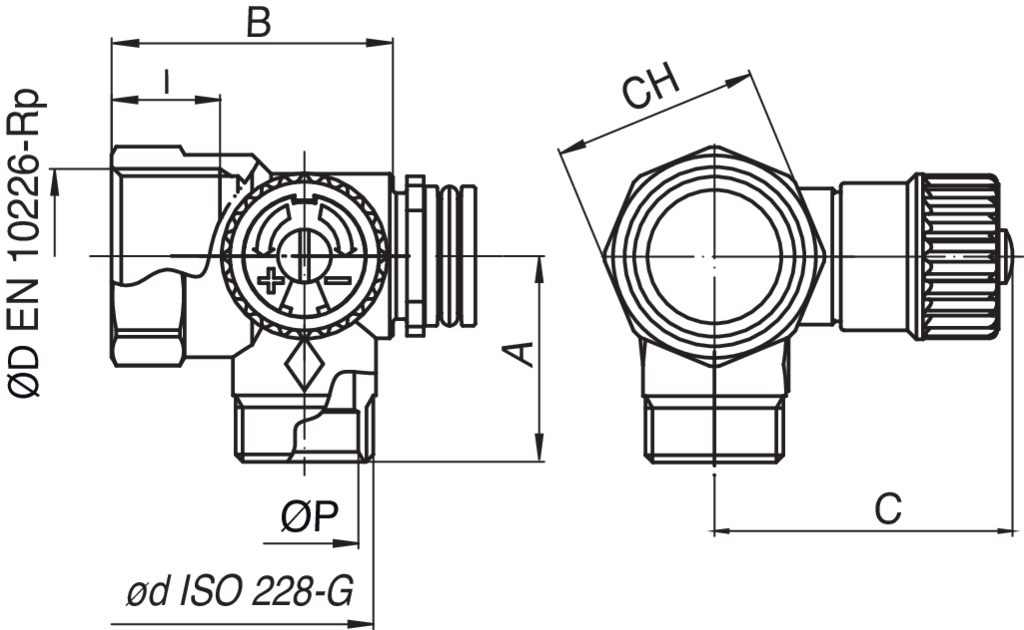

Technical specifications
ØD x Ød
BAG
BOX
MASTER BOX
CODE
ØP
A
B
C
CH
I
3/4" x 1/2"
1
10
80
5912002601
16
31
42,3
45
31
16,3
