PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
590100
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
590100

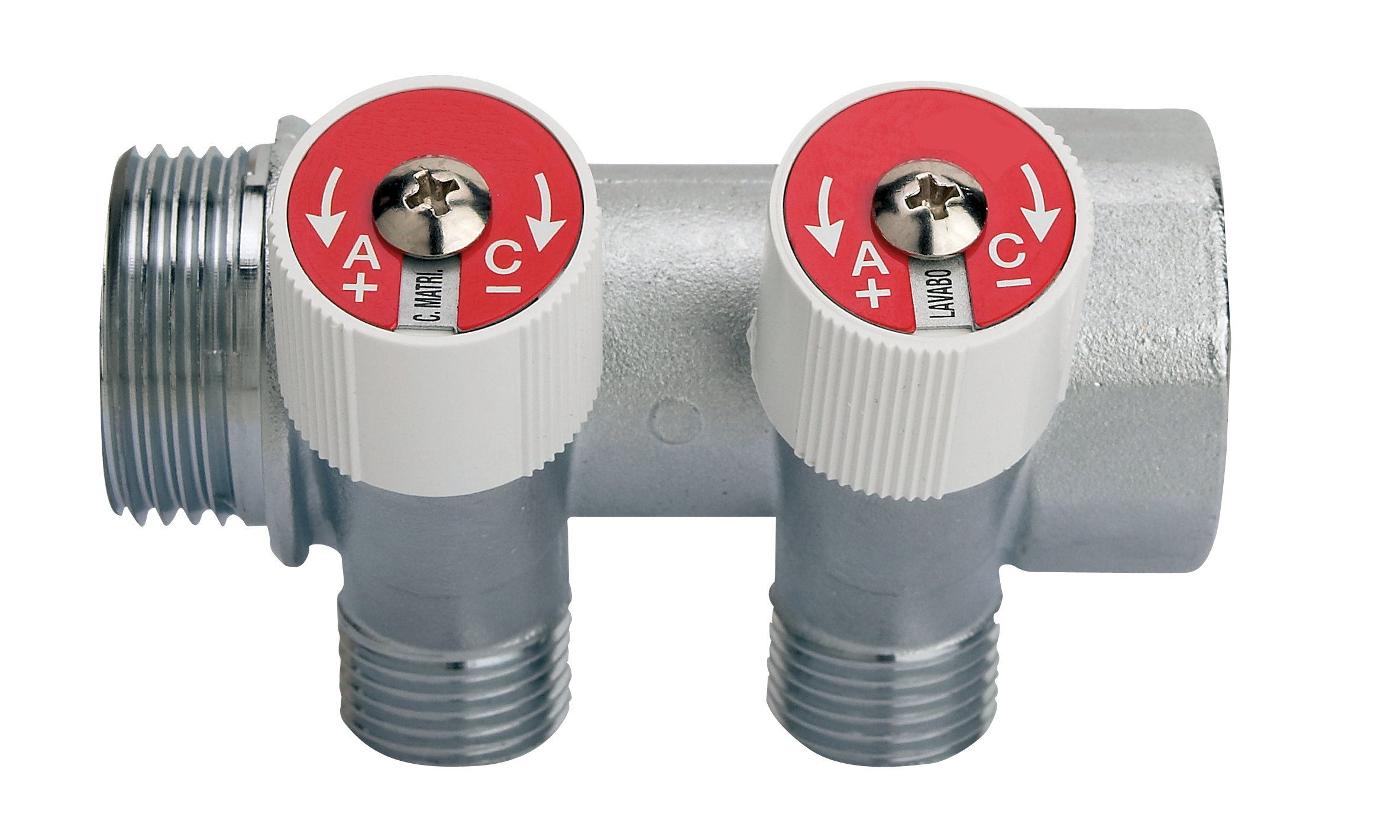

Brass linear manifold with stop cocks 1/2” ways.

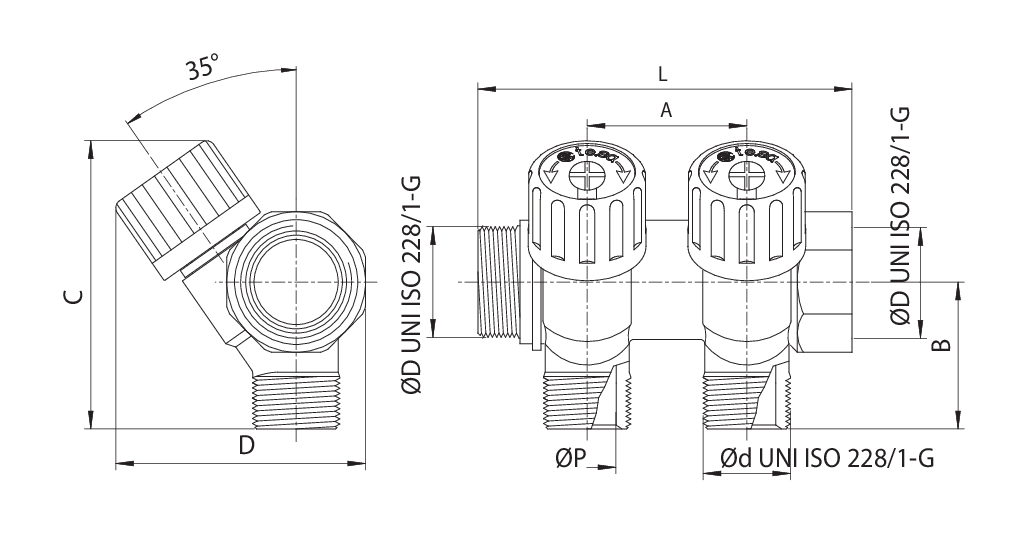

Technical specifications
TRATTAMENTO - TREATMENT
ØD x Ød
N° VIE - N° WAYS
BOX
MASTER BOX
CODE
ØP
A
B
C
D
L
Nichelato - Nickel plated
3/4" x 1/2"
2
6
36
5901000502
16
38
34,5
68
60
89
Nichelato - Nickel plated
3/4" x 1/2"
3
5
30
5901000503
16
38
34,5
68
60
127
Nichelato - Nickel plated
3/4" x 1/2"
4
5
20
5901000504
16
38
34,5
68
60
165
