PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
590000
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
590000

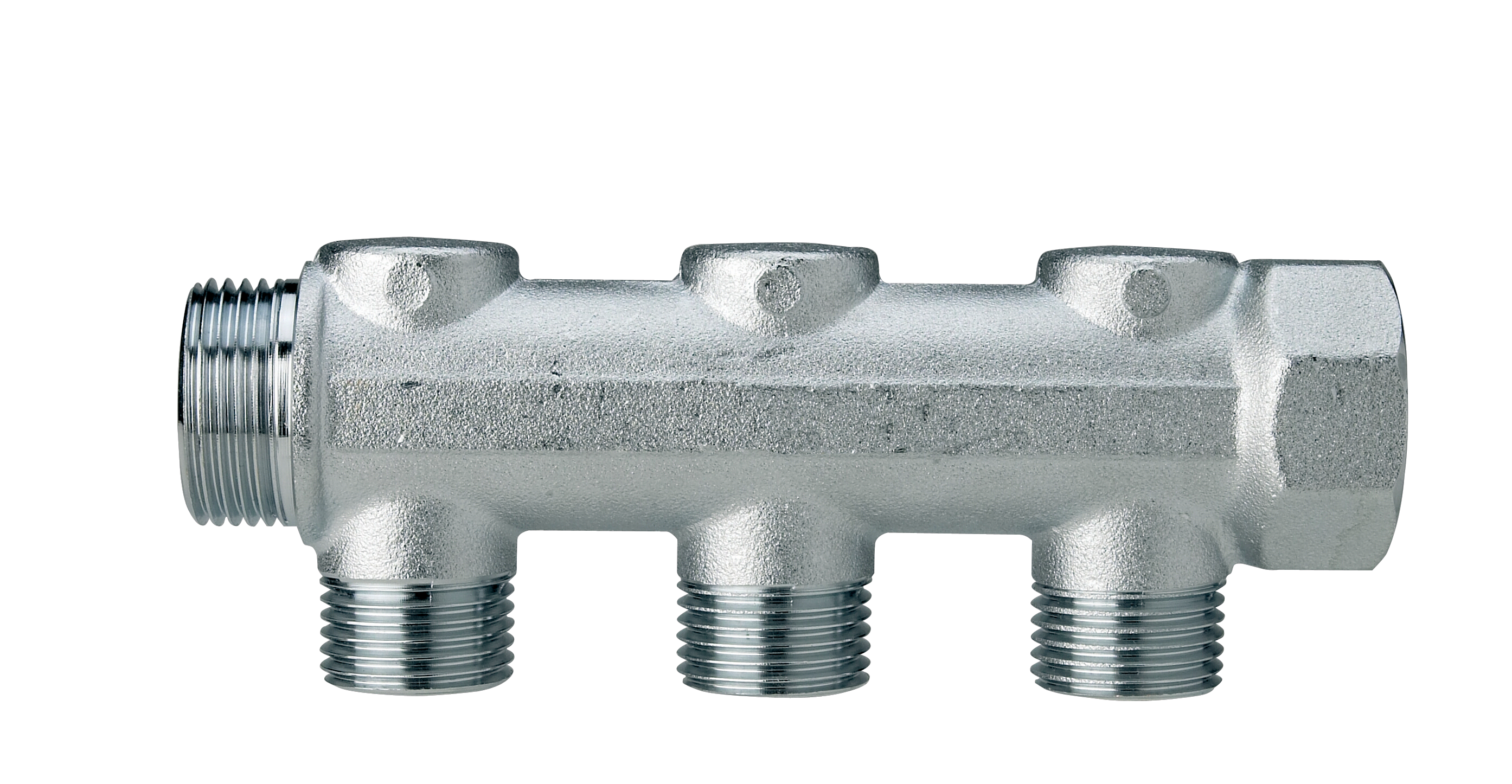

Brass linear manifold with 1/2” ways.

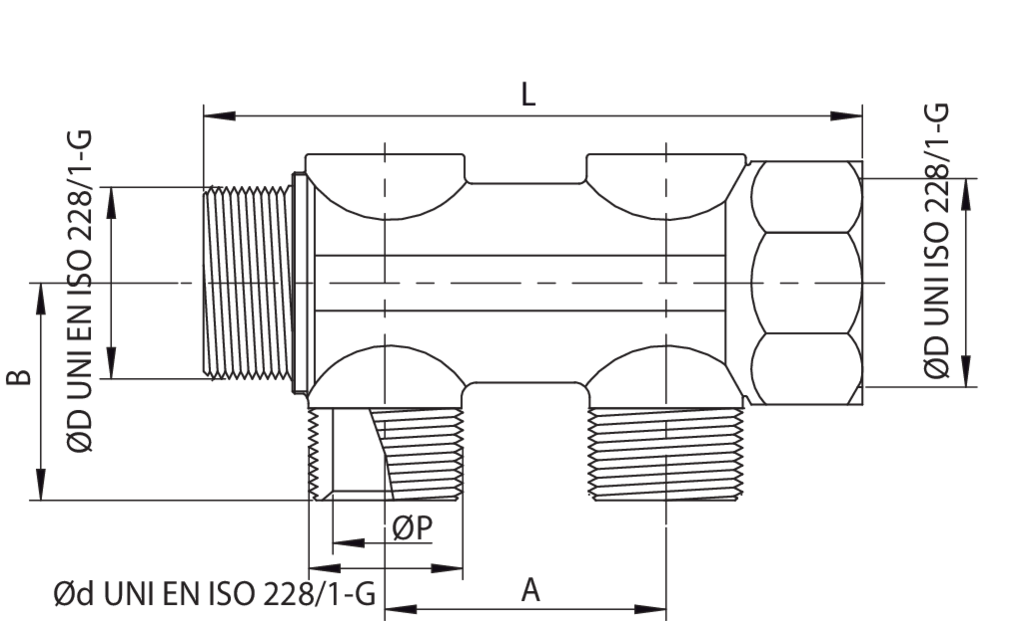

Technical specifications
TRATTAMENTO - TREATMENT
ØD x Ød
N° VIE - N° WAYS
BOX
MASTER BOX
CODE
ØP
A
B
L
Nichelato - Nickel plated
3/4" x 1/2"
2
20
80
5900000502
16
38
29,5
90
Nichelato - Nickel plated
3/4" x 1/2"
3
15
60
5900000503
16
38
29,5
128
Nichelato - Nickel plated
3/4" x 1/2"
4
10
40
5900000504
16
38
29,5
166
Nichelato - Nickel plated
1" x 1/2"
2
20
80
5900000602
16
38
32
90
Nichelato - Nickel plated
1" x 1/2"
3
10
40
5900000603
16
38
32
128
Nichelato - Nickel plated
1" x 1/2"
4
10
40
5900000604
16
38
32
166
