PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
509091
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
509091

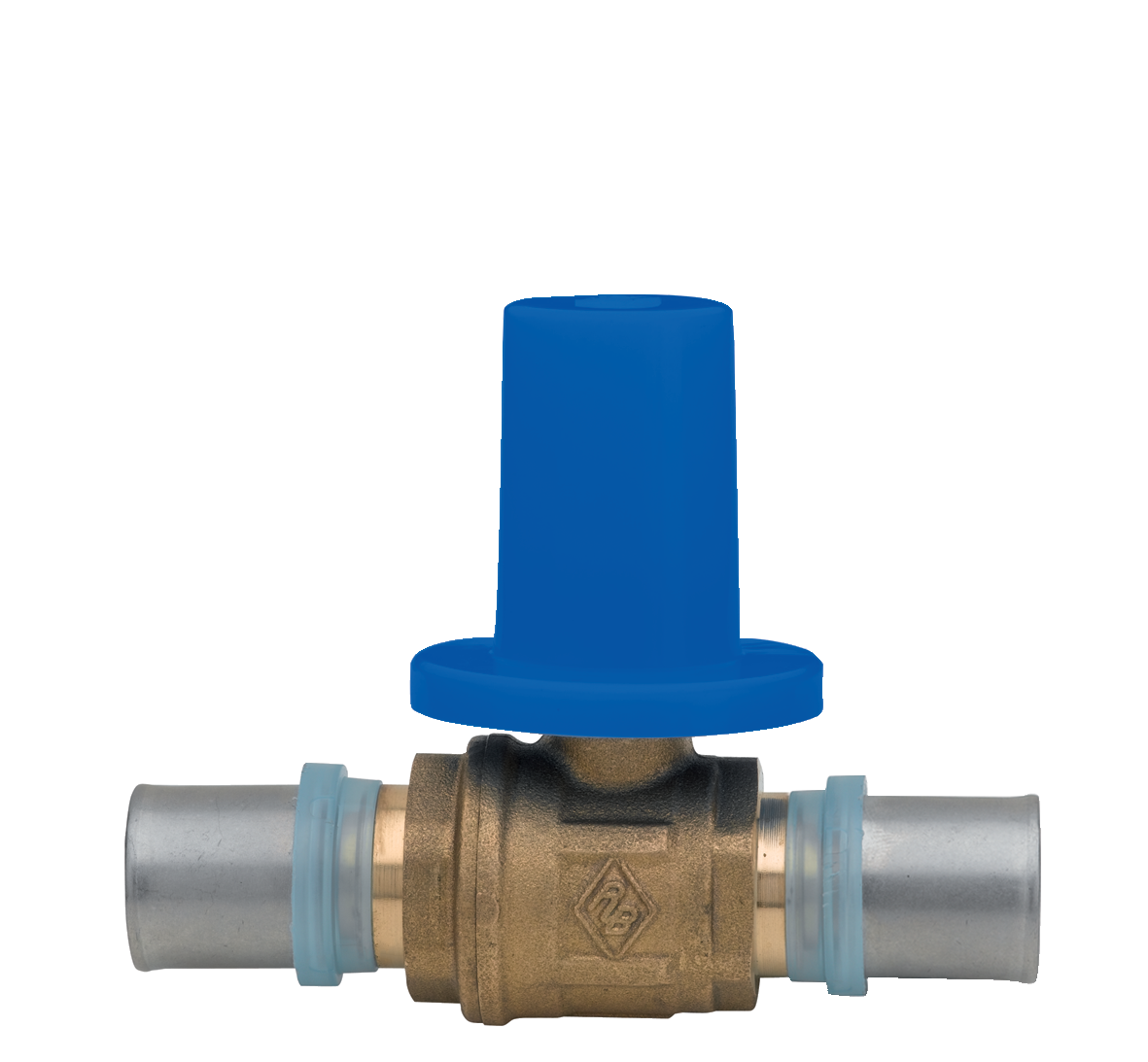

Built-in ball valve, press/press connections with protection cap.

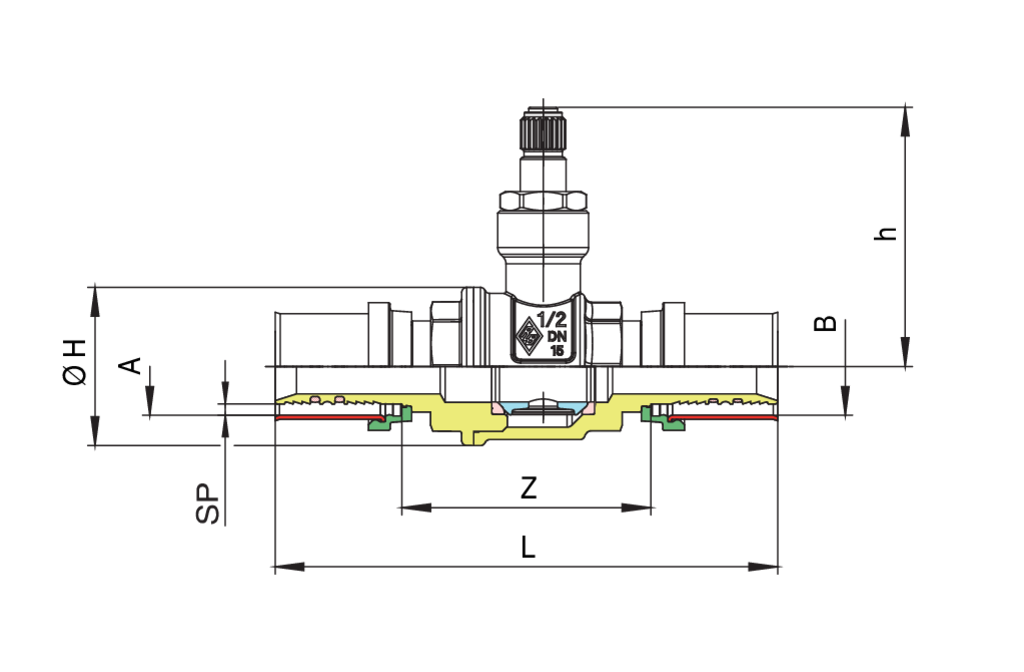

Technical specifications
A x B
SP
BOX
MASTER BOX
CODE
L
Z
h
ØH
16 x 16
2
15
30
50909116
105
53
54
34,5
18 x 18
2
15
30
50909118
105
53
54
34,5
20 x 20
2
10
20
50909120
105
53
54
34,5
26 x 26
3
15
30
50909126
115,5
53
54
34,5
