GAS SERIES
/
BALL VALVES FOR GAS
/
9498
BALL VALVES FOR GAS
9498

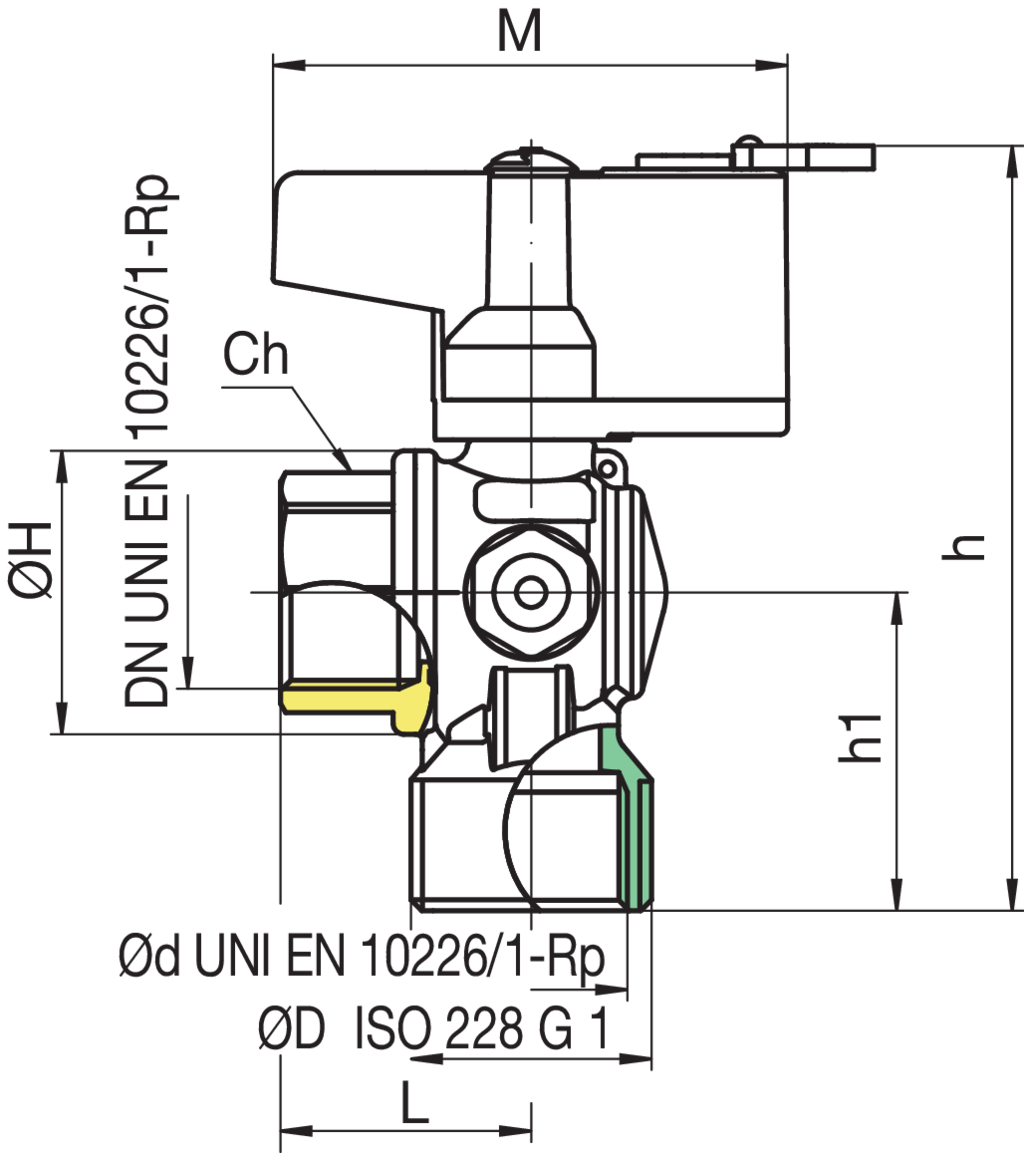

Full bore ball valve, square, after the meter with pressure measurement safety connection, female/double thread F/M wit security lock.
Technical specifications
SIZE
DN
MASTER BOX
CODE
ØD
Ød
L
ØH
h
h1
Ch
M
MOP
Kg
3/4"
20
25
9498580075
1''
3/4''
34,5
39
105,5
44
31
71
5
0,40
1"
25
25
9498300075
1''
3/4''
42
49
112
47
38
71
5
0,57
Temperature range: -20°C +60°C.
