GAS SERIES
/
CLICK-SFER
/
9646
CLICK-SFER

9646

Made in Italy

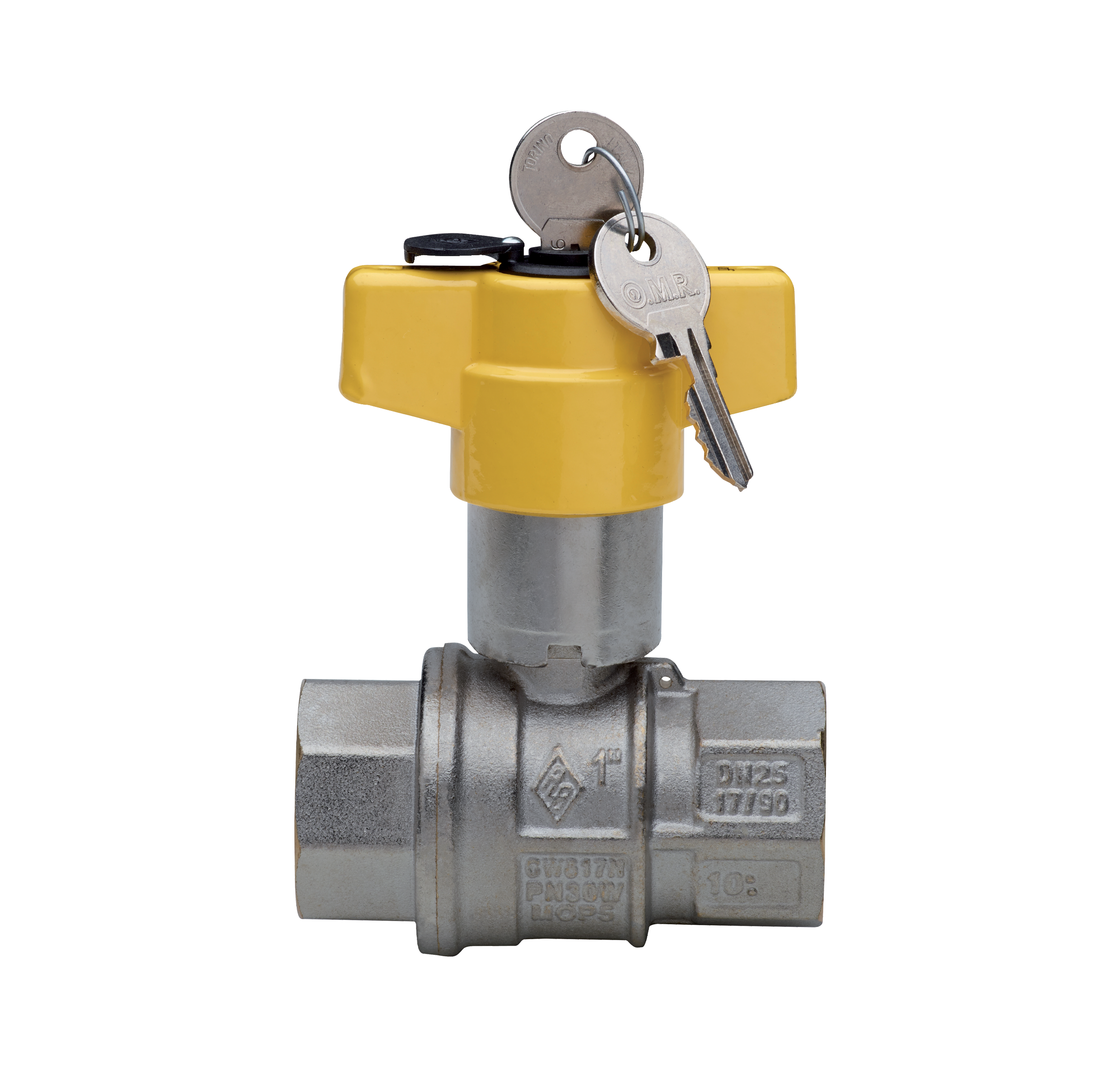

Full bore ball valve for gas, F/F threads with aluminium T-handle and extractable and replaceable security lock.
Technical specifications

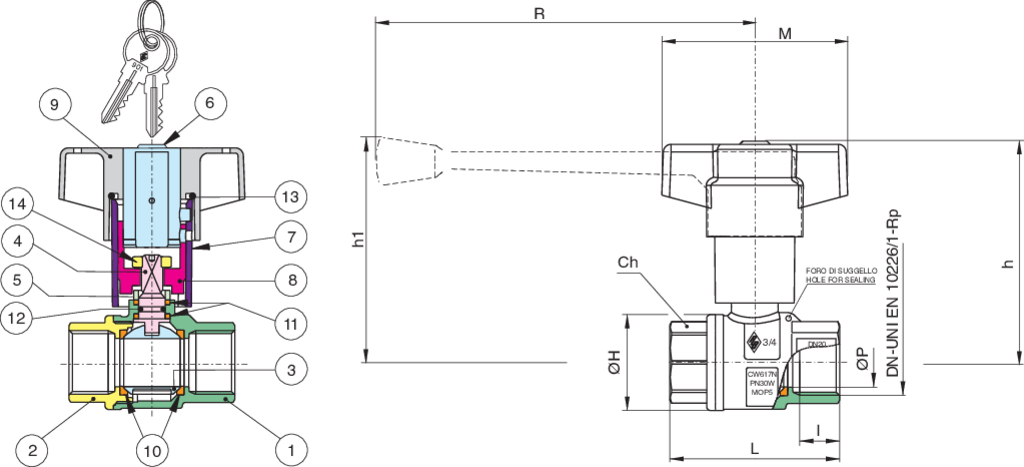

Position Part name Material N.° pieces
1 BODY BRASS CW617N UNI EN 12165 1
2 END CONNECTION BRASS CW617N UNI EN 12165 1
3 BALL BRASS CW617N UNI EN 12165 1
4 STEM BRASS CW614N UNI EN 12164 1
5 PACKING GLAND BRASS CW614N UNI EN 12164 1
6 LOCK PROTECTION PA6 1
7 CAP ZAMA - Al Zn Mg ALLOY UNI 1774 1
8 CAP ZAMA - Al Zn Mg ALLOY UNI 1774 1
9 T-HANDLE ALUMINIUM EN-AC 46100 EN 1706 1
10 BALL SEAT PTFE 2
11 STEM SEAL/THRUST WASHER PTFE 2
12 O-RING NBR 1
13 O-RING MVQ 1
14 DADO STEEL CL 04 1
SIZE DN BOX MASTER BOX CODE ØP I Ch ØH L h h1 M R MOP Kg
3/4" 20 - 25 9646050925 20 16,3 31 39 69 86 - 70 - 5 0,48
1" 25 - 25 9646060925 25 19,1 38 49 83 90 - 70 - 5 0,66
1"1/4* 32 5 10 9646070925 32 21,4 48 59 96 - 113 - 160 5 1,16
1"1/2* 40 5 10 9646080925 40 21,4 54 73 108 - 119 - 160 5 1,71
2"* 50 - 5 9646100925 50 25,7 67 87 127,5 - 128 - 160 5 2,31

Temperature range: -20°C +60°C.

* Version with aluminium handle.
