ECOLOGY SERIES
/
EURO
/
300302
EURO

300302

Pressure reducing and regulating valve with balanced seat, outlet setting from 1,5 to 6 bar, with upstream 400 micron flow filtering system, connections.
Technical specifications

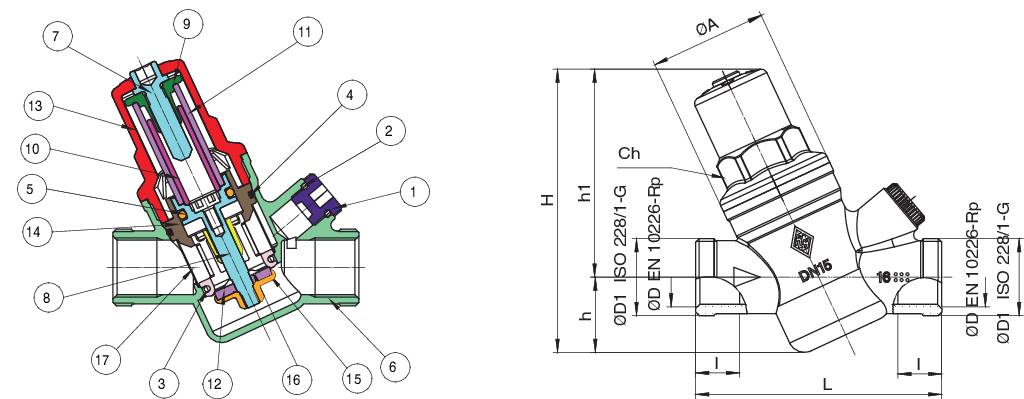

Position Part name Material N.° pieces
1 BOWL PA6 1
2 O-RING NBR 1
3 O-RING EPDM 1
4 O-RING EPDM 1
5 O-RING EPDM 1
6 BODY BRASS CW 617N UNI EN 12420 1
7 STEM BRASS CW 614N UNI EN 12164 1
8 STEM BRASS CW 614N UNI EN 12164 1
9 RING NUT BRASS CW 614N UNI EN 12164 1
10 SPRING STAINLESS STEEL AISI 302 1
11 SPRING STAINLESS STEEL AISI 302 1
12 GASKET RING NBR 1
13 CAP PA6 1
14 SUPPORT POM 1
15 WASHER BRASS CW 614N UNI EN 12164 1
16 WASHER BRASS CW 614N UNI EN 12164 1
17 STRAINER STAINLESS STEEL AISI 316 1
SIZE DN BOX MASTER BOX CODE ØD ØD1 ØA I Ch L h h1 H PN Kg
1/2" 15 1 12 30030204 1/2" 3/4" 40 15 28 84 26 71 97 16 0,33
3/4" 20 1 12 30030205 3/4" 1" 40 16,3 28 88 26 71 97 16 0,37

Temperature range (air and water) -10°C +70°C.
