Pressure reducing and regulating valve with balanced seat, connections with ring nut and union, outlet setting from 1,5 to 6 bar, with upstream 100 micron flow filtering system.

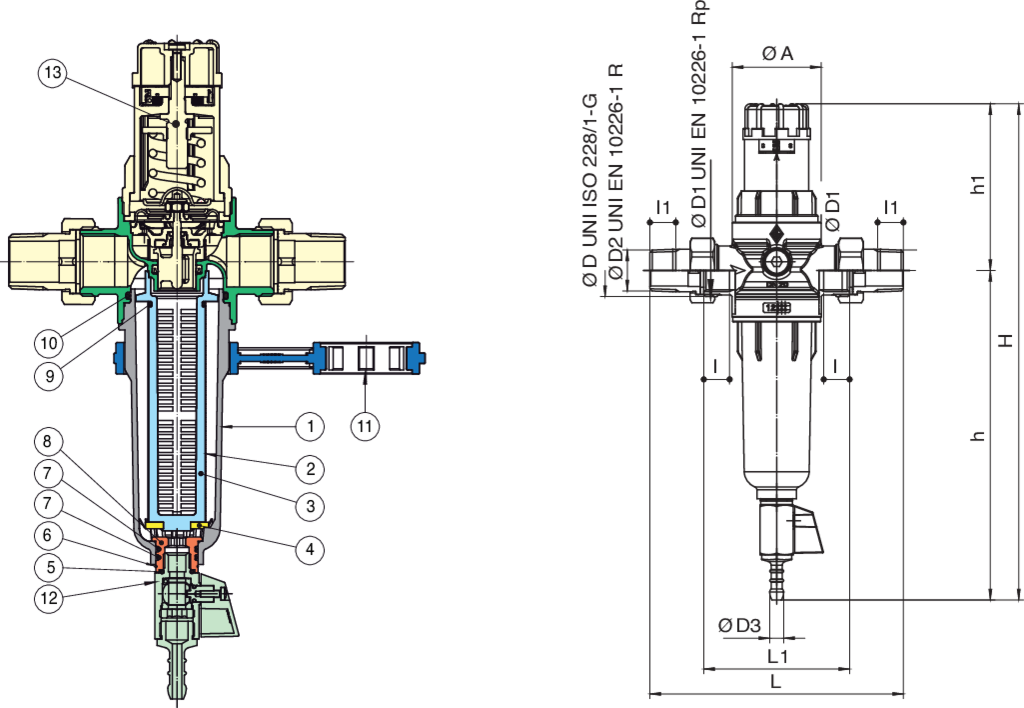

Technical specifications
Position
Part name
Material
N.° pieces
1
BOWL
PSU
1
2
METALLIC MESH STRAINER
STAINLESS STEEL AISI 304
1
3
STREINER SUPPORT
POM
1
4
FLAT SEAT
NBR
1
5
O-RING
EPDM
1
6
SEEGER
STEEL
1
7
O-RING
EPDM
2
8
CONNECTION
BRASS CW 614N
1
9
O-RING
EPDM
1
10
O-RING
EPDM PEROX
1
11
SERVICE KEY
PA6.6
4
12
ART. 3834
-
1
13
ART. 300000
-
1
SIZE
DN
BOX
MASTER BOX
CODE
ØD
ØD1
ØD2
l
l1
L
L1
ØA
h
h1
H
PN
Kg
1/2"
15
1
3
30005004
3/4"
1/2"
1/2"
15
15
140
80
56
208
105
313
16
1,00
3/4"
20
1
3
30005005
1"
3/4"
3/4"
16,3
16,3
160
92
56
208
105
313
16
1,16
1"
25
1
3
30005006
1"/141
1"
1"
19,1
19,1
185
105
72
215
120
335
16
1,65
1"1/4
32
1
2
30005007
1"1/2
1"1/4
1"1/4
21,4
21,4
194
109
72
215
120
335
16
1,81
Nominal operating temperature: equal to 30 °C, in compliance with UNI EN 13443-1 standard - for different operating conditions, consult the technical staff of Rubinetterie Bresciane Bonomi.
