WATER VALVES

6803

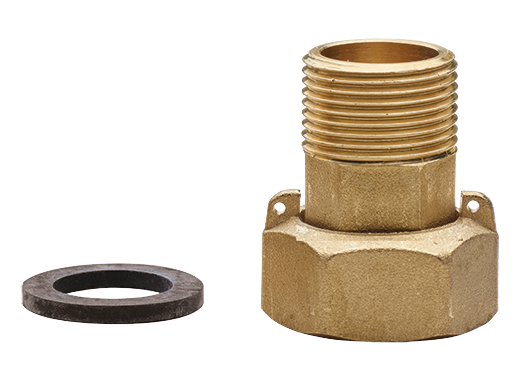

Single fitting kit for water meter.

Technical specifications

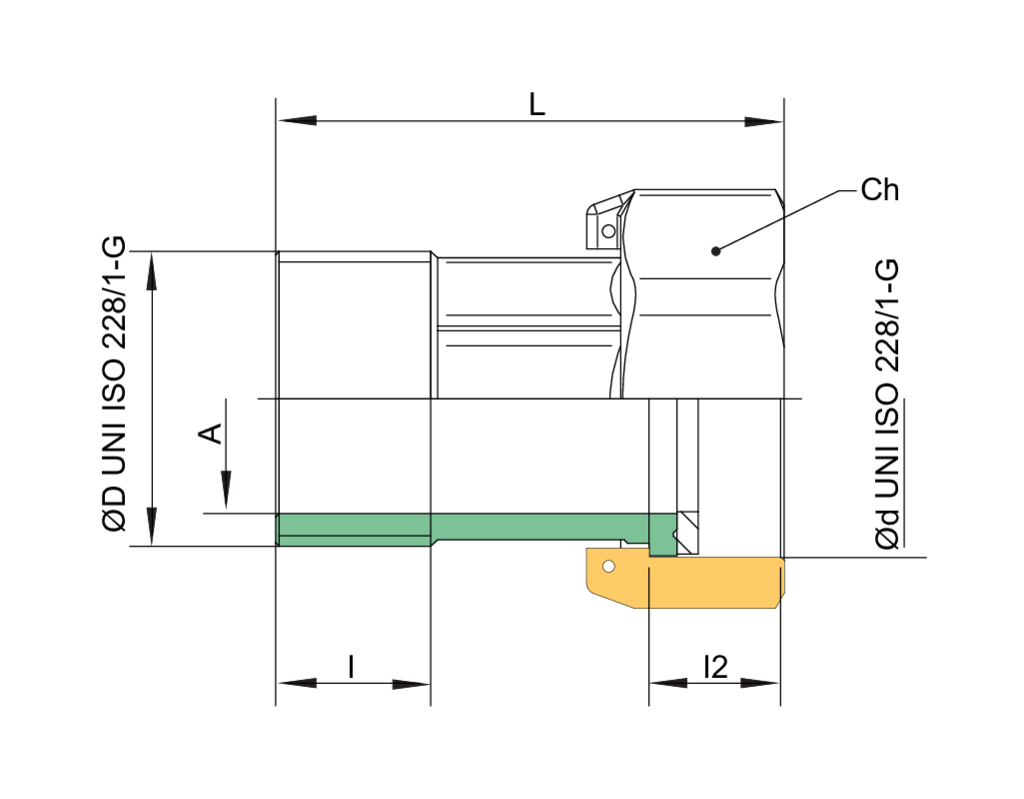

ØD x Ød	DN	BOX	MASTER BOX	CODE	A	I	L	I2	Ch
1/2" x 3/4"	-	20	120	6803260002	15	12	45,5	12	29
1'' x 1"1/4	-	10	60	6803290002	25,5	17	61	17	46
1"1/4 x 1''1/2	-	10	40	6803590002	32,5	20,5	72	20,5	53
1"1/2 x 2''	-	10	20	6803690002	38,5	21,5	81	21,5	66
2'' x 2"1/2	-	2	12	6803700002	50	27	92	27	85
3/4'' x 1"	-	20	80	6803580002	20	16	57,5	16	36
