ECOLOGY SERIES
/
WATER VALVES
/
6709
WATER VALVES

6709

Made in Italy

Water full bore ball valve for meter exit, threaded F/F, check valve incorporated, with anti-tampering T-handle, without pressure measurement connections and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

Technical specifications

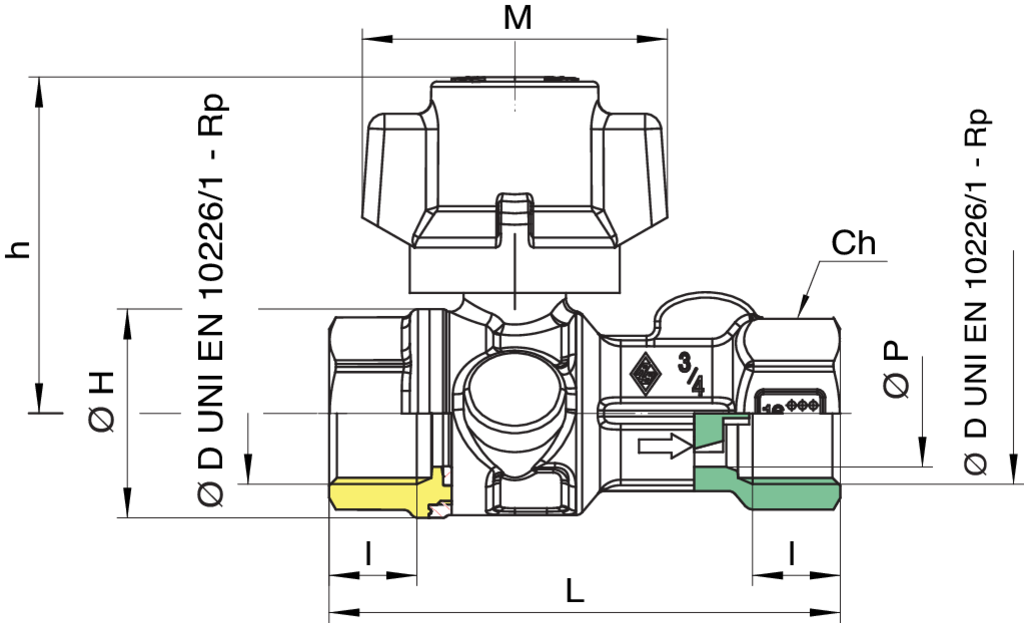

SIZE DN BOX MASTER BOX CODE ØP I L ØH CH M h h1 Kv PN Kg
1/2" 15 10 40 6709040001 15 15 80,5 33 27 57 55,5 - 4,6 64 0,33
3/4" 20 10 40 6709050001 20 16,3 95 39 32 57 63 - 8,8 64 0,48
1" 25 10 20 6709060001 25 19,1 110,5 49 38 57 66,5 - 15 64 0,70
1"1/4"* 32 6 12 6709070000 32 21,4 126 59 48 - - 74 22 50 1,11
1"1/2"* 40 4 8 6709080000 40 21,4 143,5 73 54 - - 80,5 32 40 1,59
2"* 50 2 4 6709100000 50 25,7 175 87 67 - - 91 55 40 2,50

* Version with aluminium handle and anti-tampering device.
