WATER VALVES

2U40

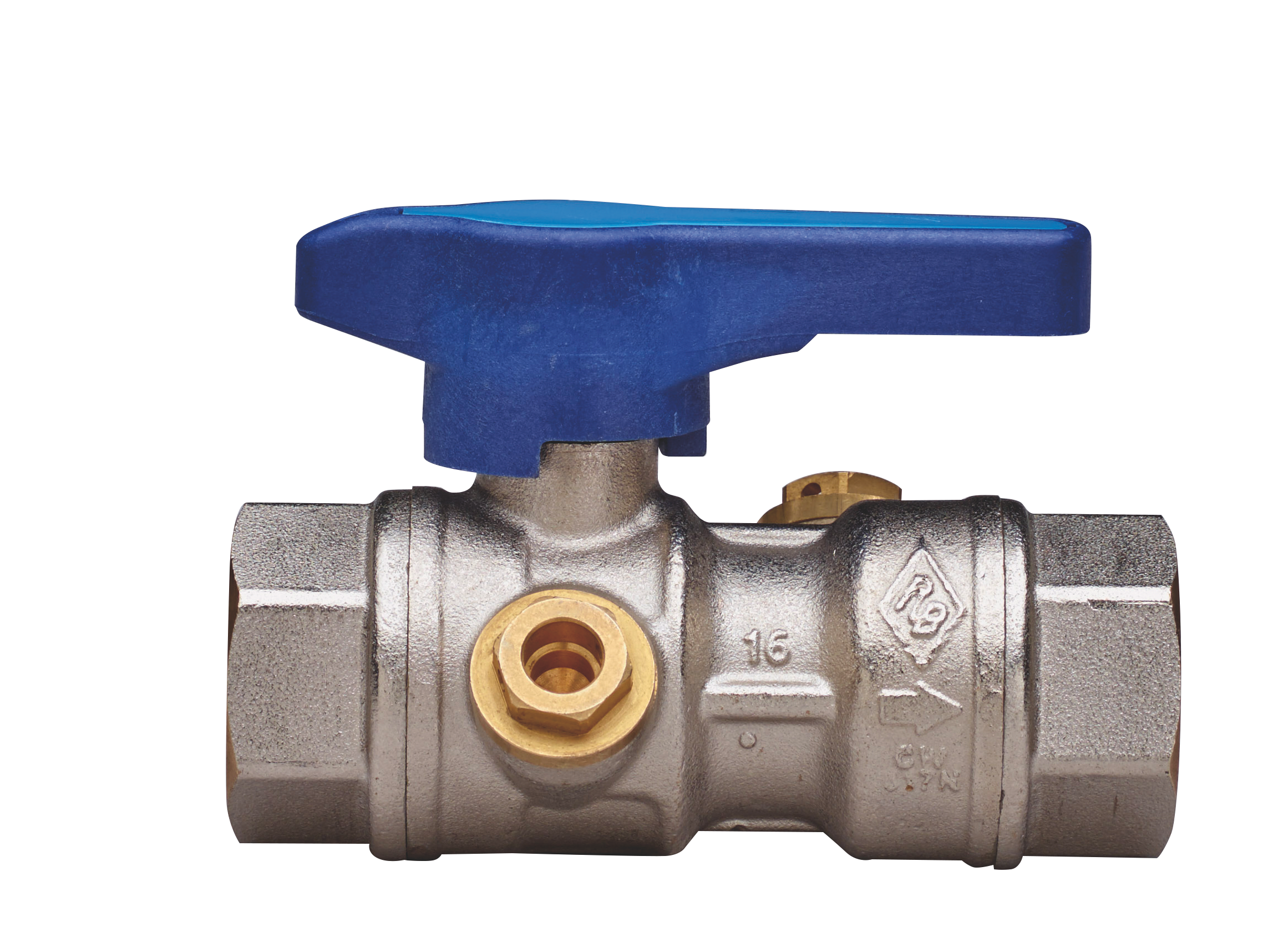

Water full bore ball valve with meter’s exit, thread F/F, large check valve incorporated, pressure measurement connection, technopolymer handle and ball with automatic rinse system.

Technical specifications

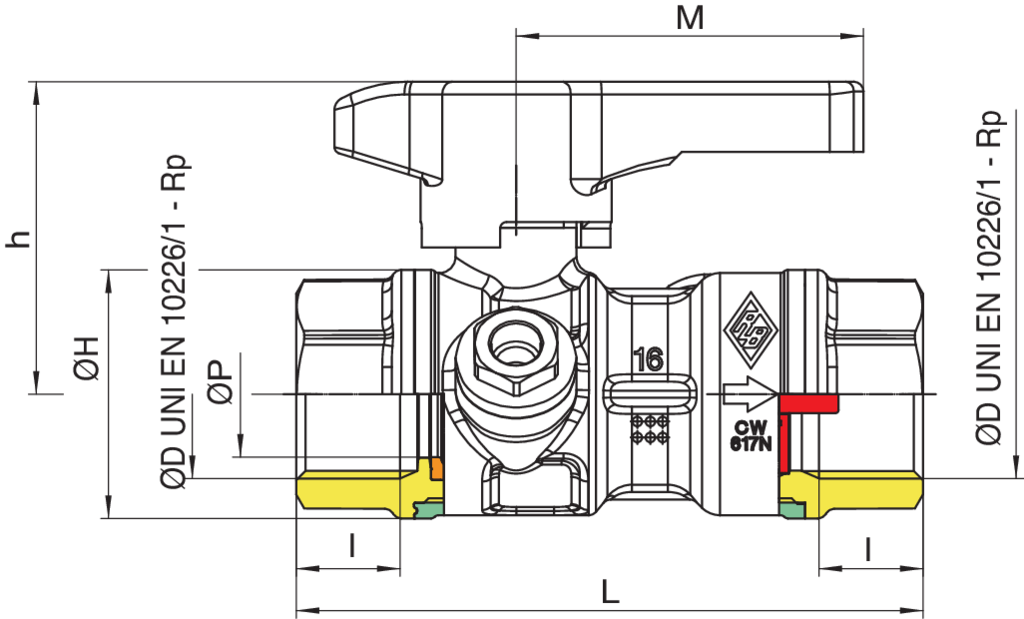

SIZE BOX MASTER BOX CODE I ØH L M h Kv PN Kg
1/2" 30 60 2U40040000 15 33 86 54,5 41,5 9 64 0,36
3/4" 20 40 2U40050000 16,3 39 98,5 54,5 49 14 64 0,50
Applications
Available media and videos
BIM
2U40.zip
