2U25
WATER VALVES
2U25

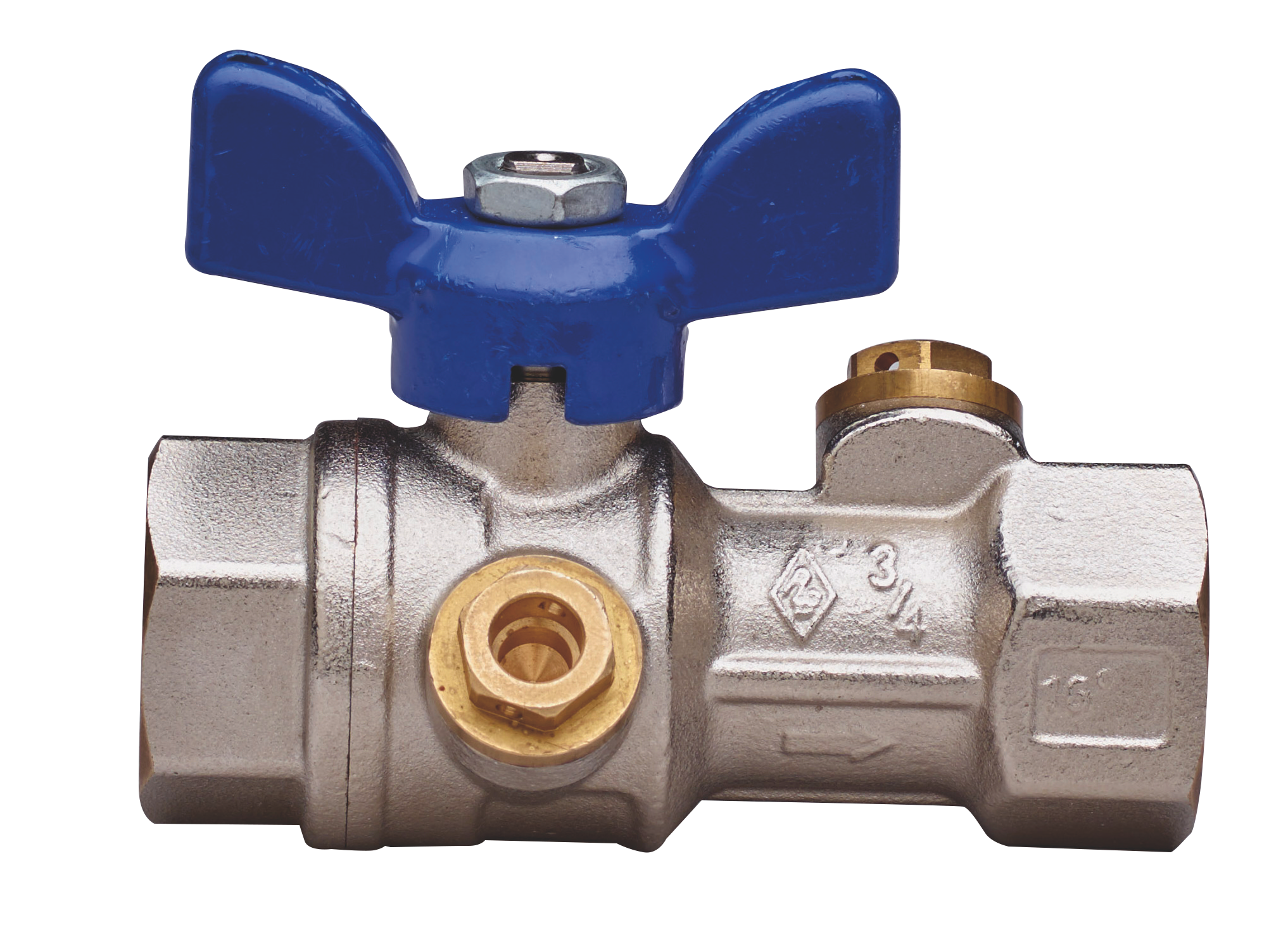

Water full bore ball valve with meter’s exit, thread F/F, check valve incorporated, pressure measurement connection aluminium butterfly handle and ball with automatic rinse system.

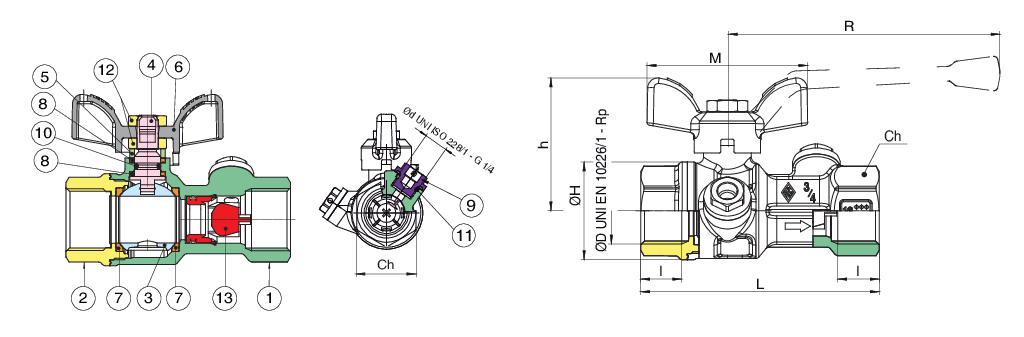

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
T-HANDLE
ALUMINIUM EN-AC 46100
1
7
BALL SEAT
PTFE
2
8
STEM SEAL/THRUST WASHER
PTFE
2
9
CAP
BRASS CW614N UNI EN 12164
2
10
O-RING
NBR
1
11
O-RING
NBR
2
12
NUT
STEEL CL 04
2
13
CHECK VALVE
POM
1
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
Ch
ØH
L
h
M
R
Kv
PN
Kg
1/2"
15
10
40
2U25040000
15
15
27
33
80,5
41,5
50
-
4,6
64
0,30
3/4"
20
10
40
2U25050000
20
16,3
32
39
95
53
64
-
8,8
64
0,46
1"
25
10
20
2U25060000
25
19,1
38
49
110,5
57
64
-
15
64
0,69
1"1/4*
32
6
12
2U25070000
32
21,4
48
59
126
79,5
-
160
22
50
1,08
1"1/2*
40
4
8
2U25080000
40
21,4
54
73
143,5
86
-
160
32
40
1,56
2"*
50
2
4
2U25100000
50
25,7
67
87
175
104
-
170
55
40
2,47
*Version with aluminium handle.
