WATER VALVES
2U24

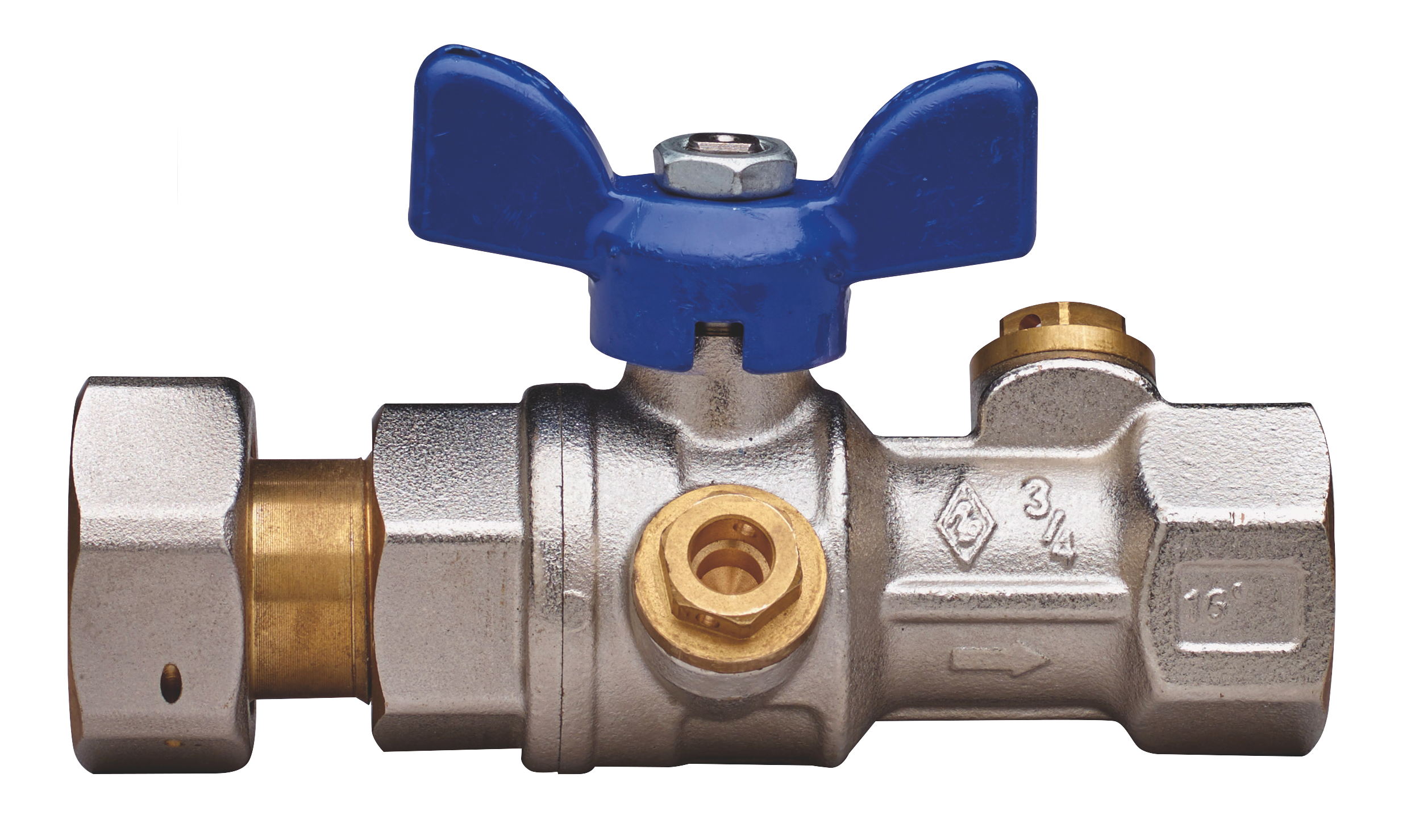

Water full bore ball valve with meter’s exit, thread female/nut, check valve incorporated, pressure measurement connection aluminium butterfly handle and ball with automatic rinse system.

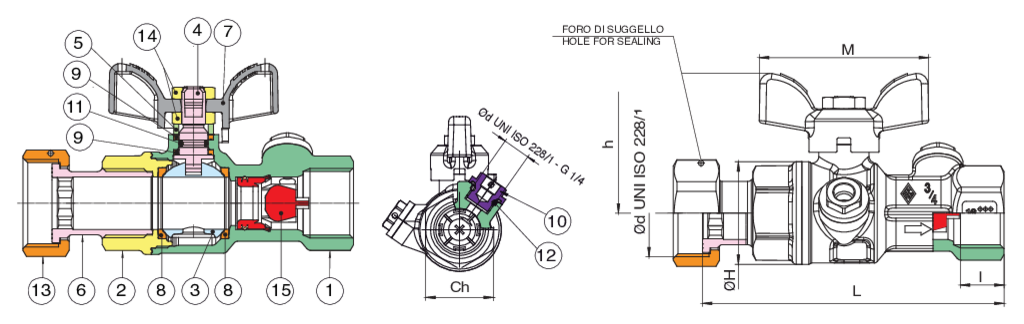

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
MALE UNION TALE
BRASS CW614N UNI EN 12164
1
7
T-HANDLE
ALUMINIUM EN-AC 46100
1
8
BALL SEAT
PTFE
2
9
STEM SEAL/THRUST WASHER
PTFE
2
10
CAP
BRASS CW614N UNI EN 12164
2
11
O-RING
NBR
1
12
O-RING
NBR
2
13
NUT
BRASS CW617N UNI EN 121420
1
14
NUT
STEEL CL 04
2
15
CHECK VALVE
POM
1
ØD x Ød
BOX
MASTER BOX
CODE
ØP
I
Ch
ØH
L
h
M
Kv
PN
Kg
1/2" x 3/4"
10
40
2U24260000
15
15
27
33
97,5
41,5
50
5
64
0,39
3/4" x 1"
10
20
2U24580000
20
16,3
32
39
104
53
64
8,8
64
0,59
1" x 1"1/4
6
12
2U24290000
25
19,1
38
49
132,5
57
64
14,6
64
0,91
