CATALOGUE
/
ECOLOGY SERIES
/
WATER VALVES
/
2099
WATER VALVES

2099

Made in Italy

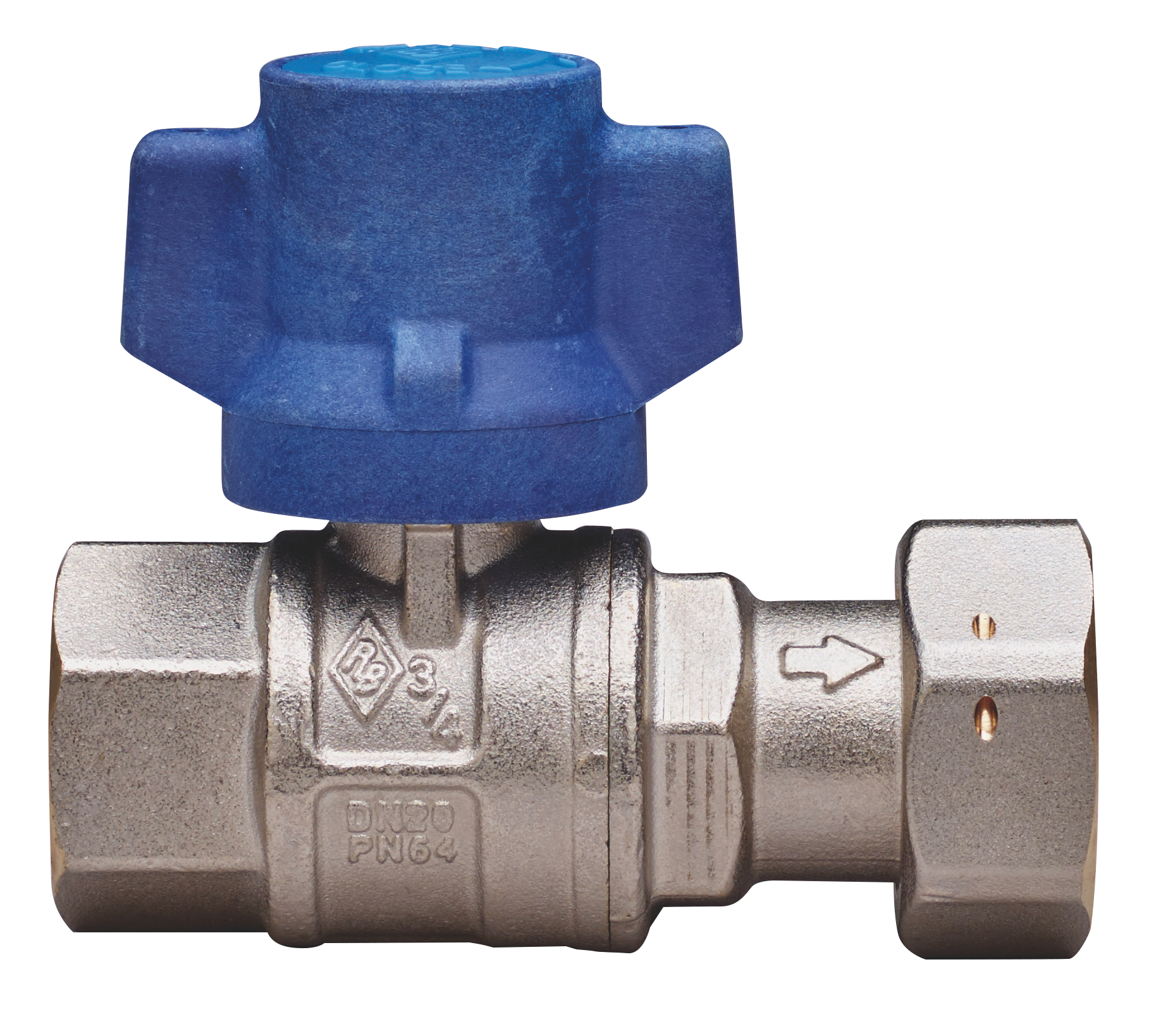

Full bore ball valve for water meter entry, Female threaded/nut connection, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

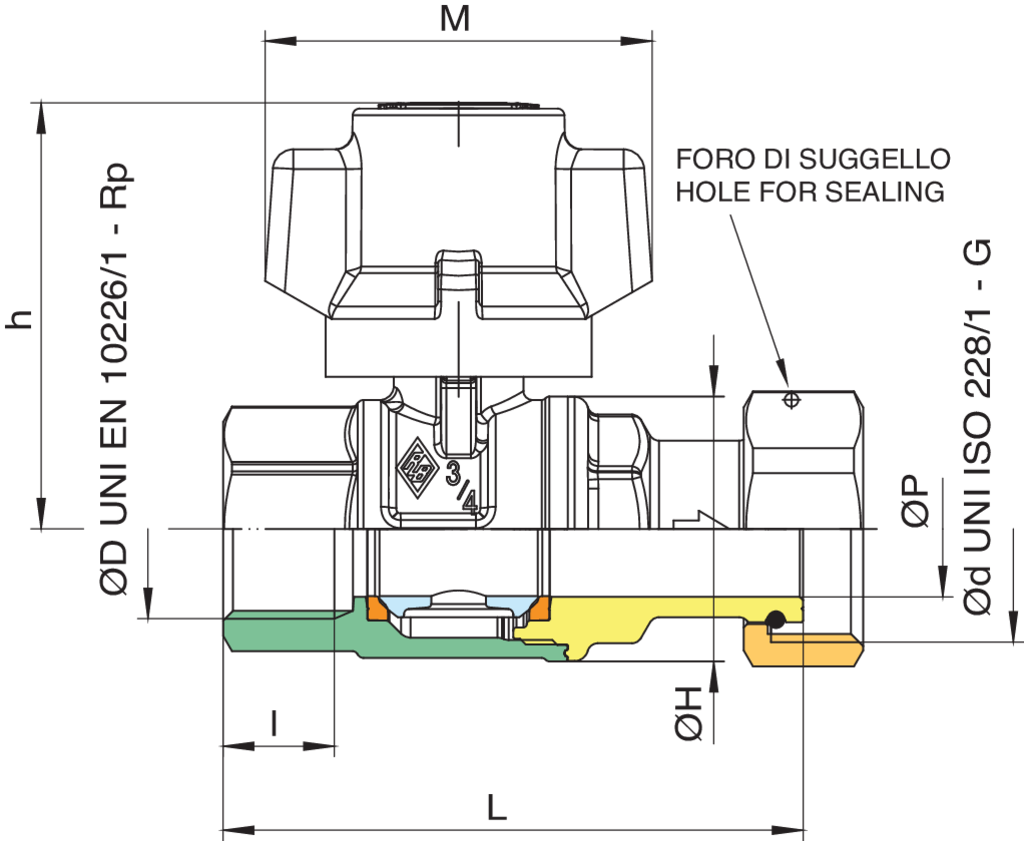

Technical specifications
ØD x Ød BOX MASTER BOX CODE ØP I ØH L h M Kv PN Kg
1/2" x 3/4" 10 40 2099260001* 15 15 33 75 55,5 57 16,3 64 0,32
3/4" x 1" 10 20 2099580001* 20 16,3 39 85 63 57 29,5 64 0,46

*Version with heptagonal-shaped stainless steel security nut.
