2070
WATER VALVES
2070

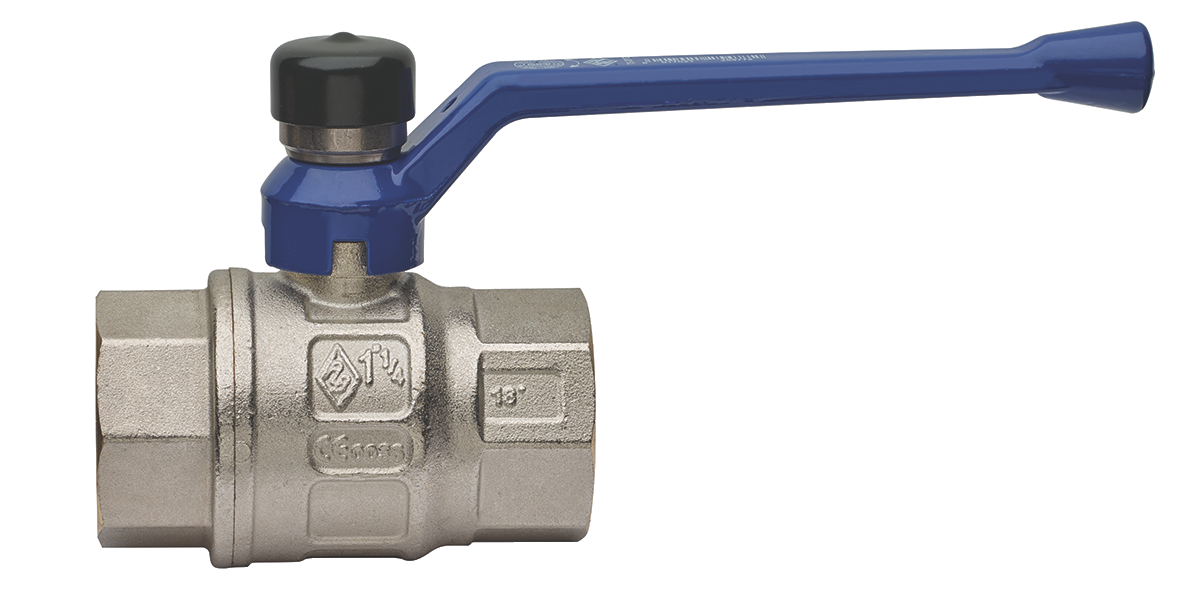

Full bore ball valve for water meter entry, F/F threaded with aluminium lever, anti-tampering device and ball with automatic rinsing system.

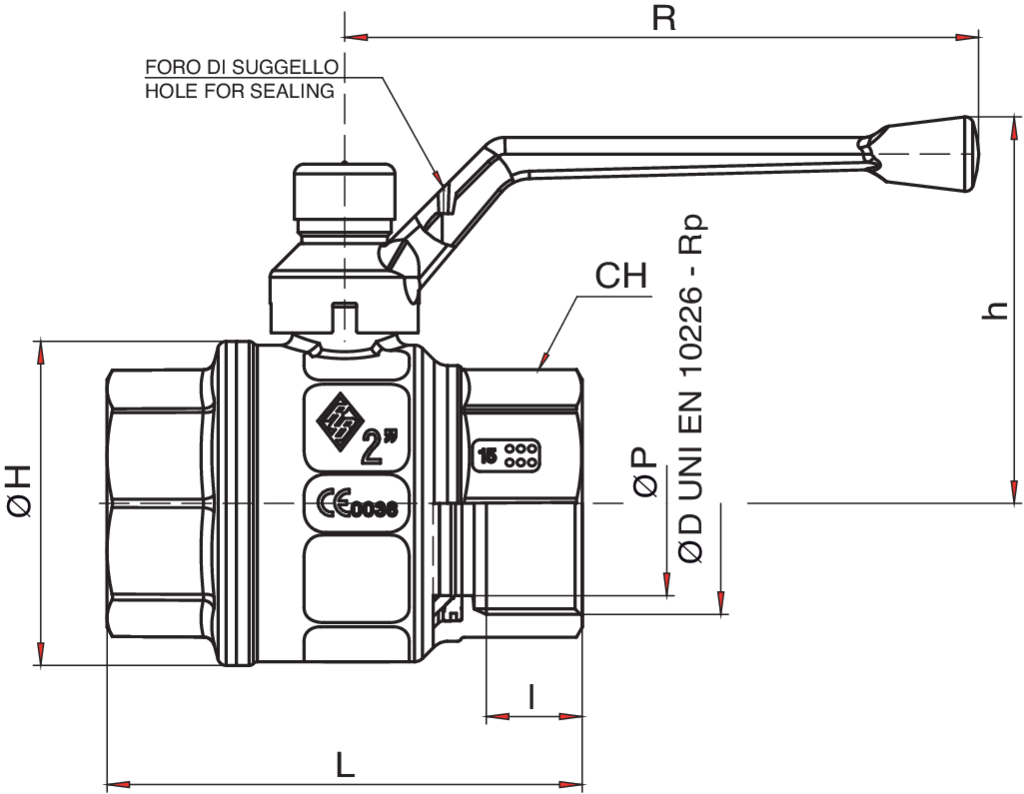

Technical specifications
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
L
ØH
Ch
R
h
Kv
PN
Kg
1"1/4
32
8
16
2070070000
32
21,4
96
59
48
160
79,5
89
50
0,91
1"1/2
40
6
12
2070080000
40
21,4
108
73
54
160
86
230
40
1,30
2"
50
4
8
2070100000
50
25,7
127,5
87
67
170
104
265
40
2,10
