ECOLOGY SERIES
/
WATER VALVES
/
2048
WATER VALVES
2048

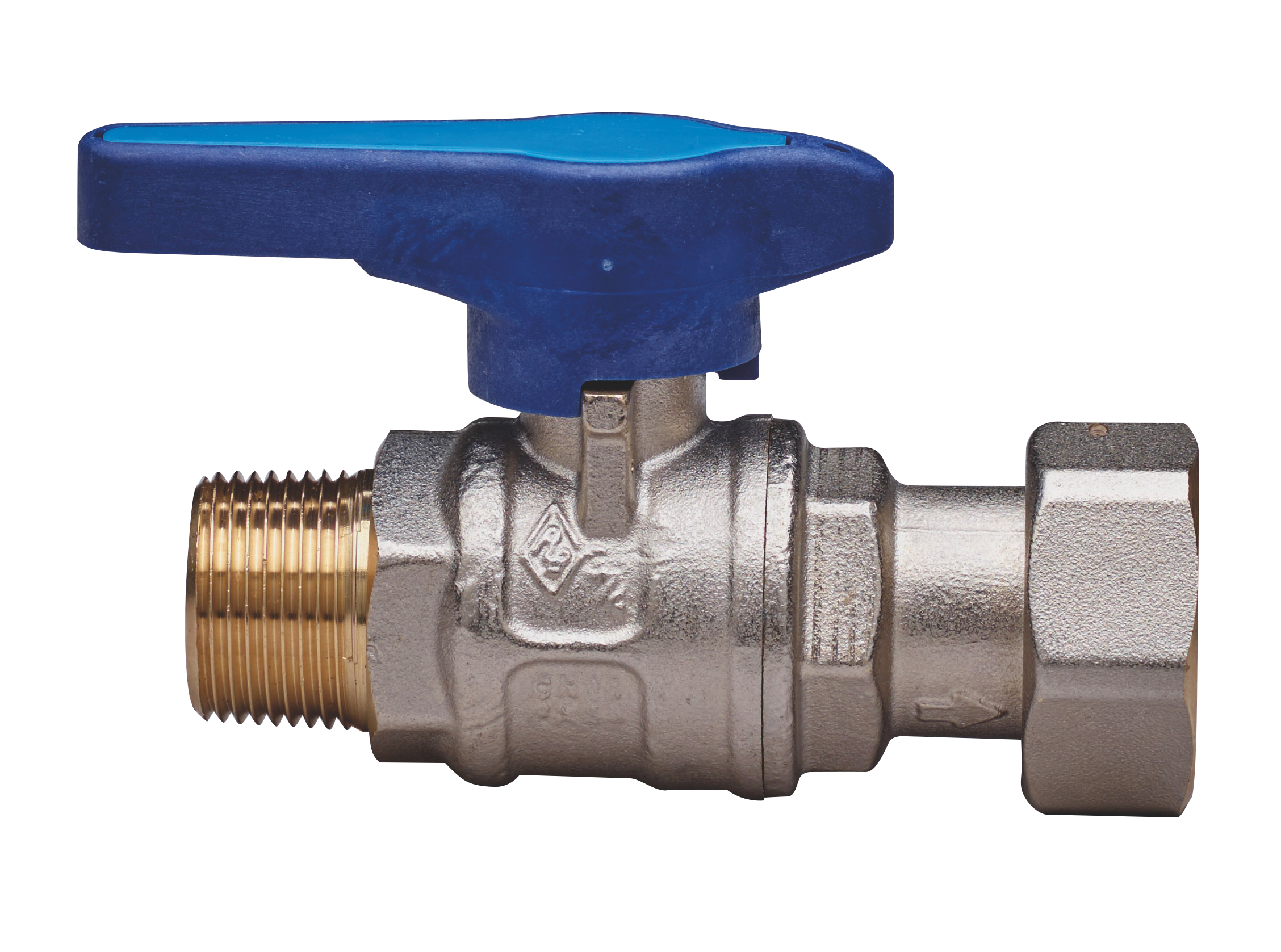

Water full bore ball valve with meter’s entrance, thread male/nut, technopolymer handle and ball with automatic rinse system.

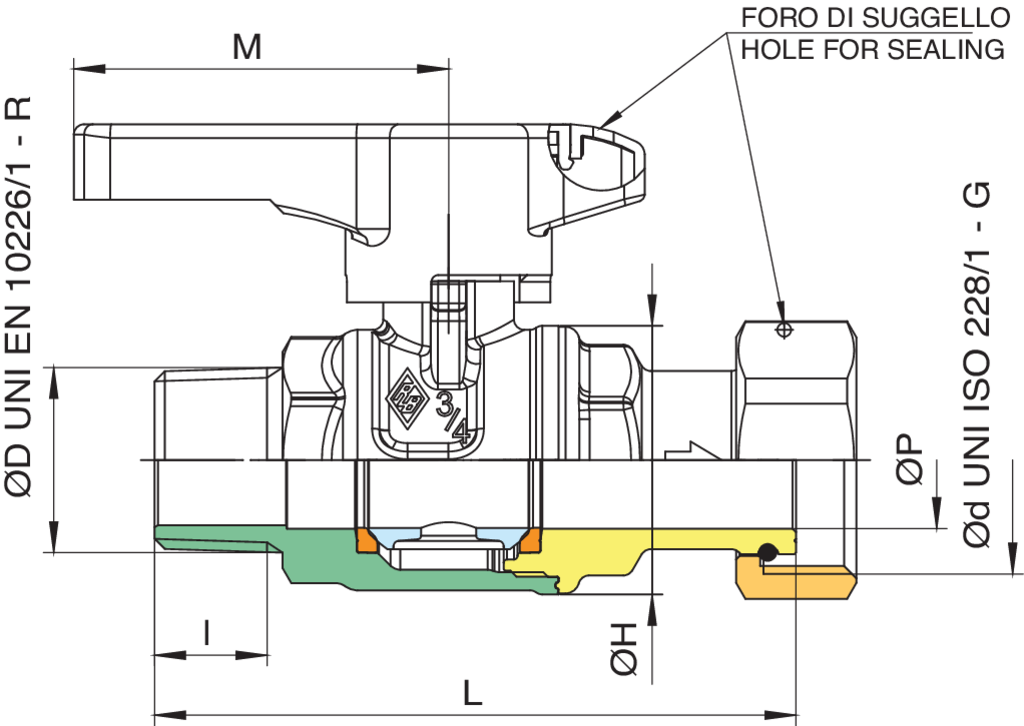

Technical specifications
ØD x Ød
BOX
MASTER BOX
CODE
ØP
I
ØH
L
h
M
Kv
PN
Kg
1/2" x 3/4"
10
40
2048260000
15
15
33
79
41,5
54,5
16,3
64
0,28
3/4" x 1"
10
20
2048580000
20
16,3
39
93,2
49
54,5
29,5
64
0,46
Applications
Available media and videos
Catalog
Price list
BIM
2048.zip
