WATER VALVES

2047

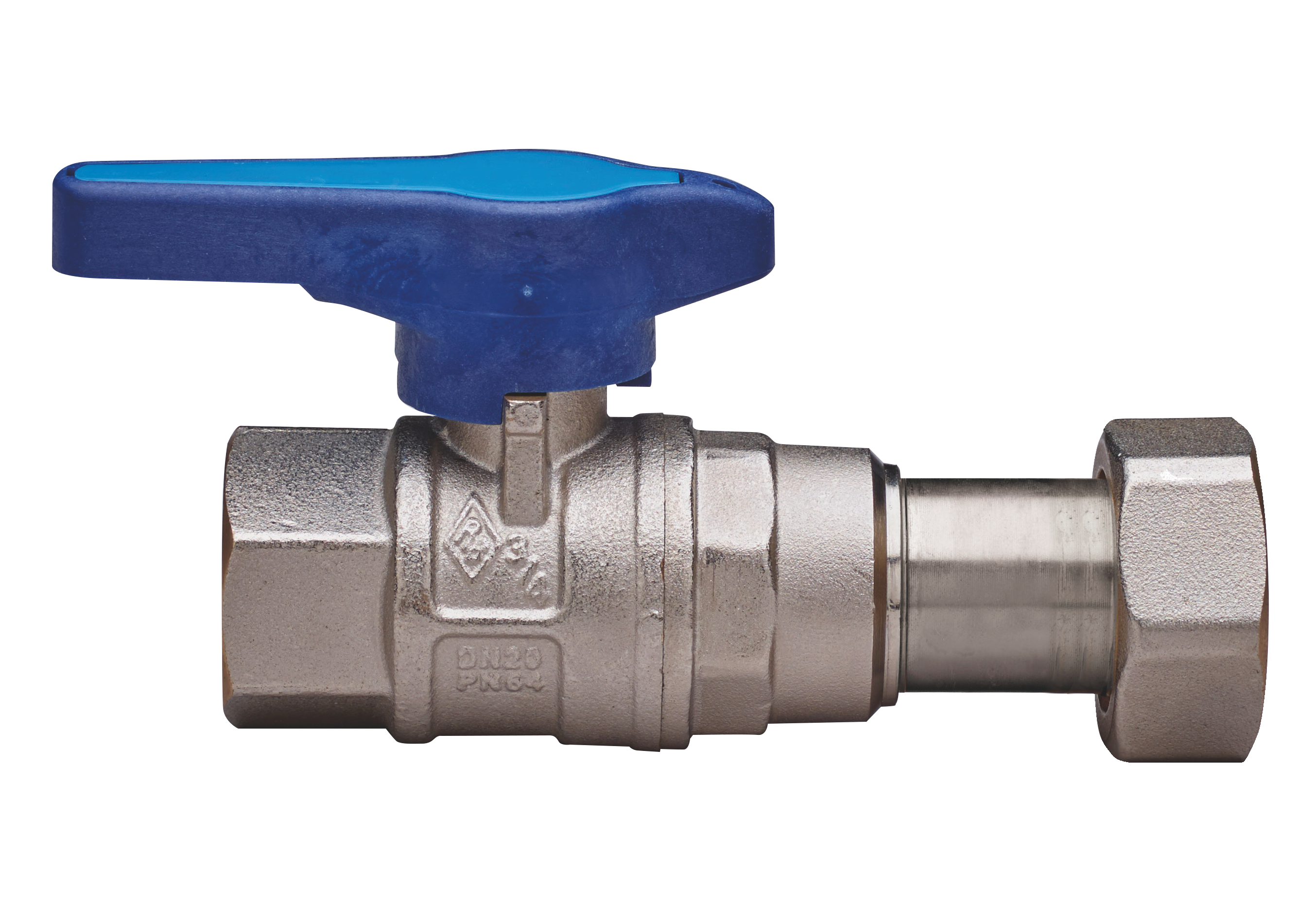

Water full bore ball valve with meter’s entrance, thread female/telescopic fitting, technopolymer handle and ball with automatic rinse system.

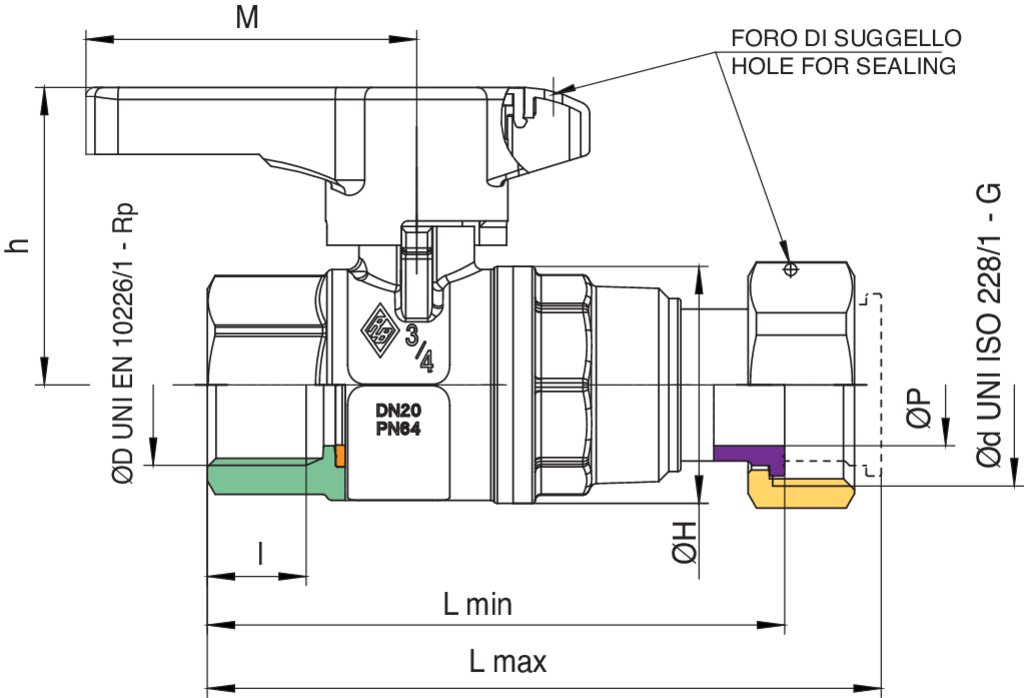

Technical specifications

ØD x Ød	BOX	MASTER BOX	CODE	ØP	I	Ch	ØH	L min	L max	h	M	Kv	PN	Kg
1/2" x 3/4"	10	40	2047260000	15	15	27	33	87,5	101	41,5	54,5	16,3	64	0,32
3/4" x 1"	10	20	2047580000	20	16,3	32	39	95	111	49	54,5	29,5	64	0,49

Applications

Available media and videos

BIM

2047.zip
