WATER VALVES

2046

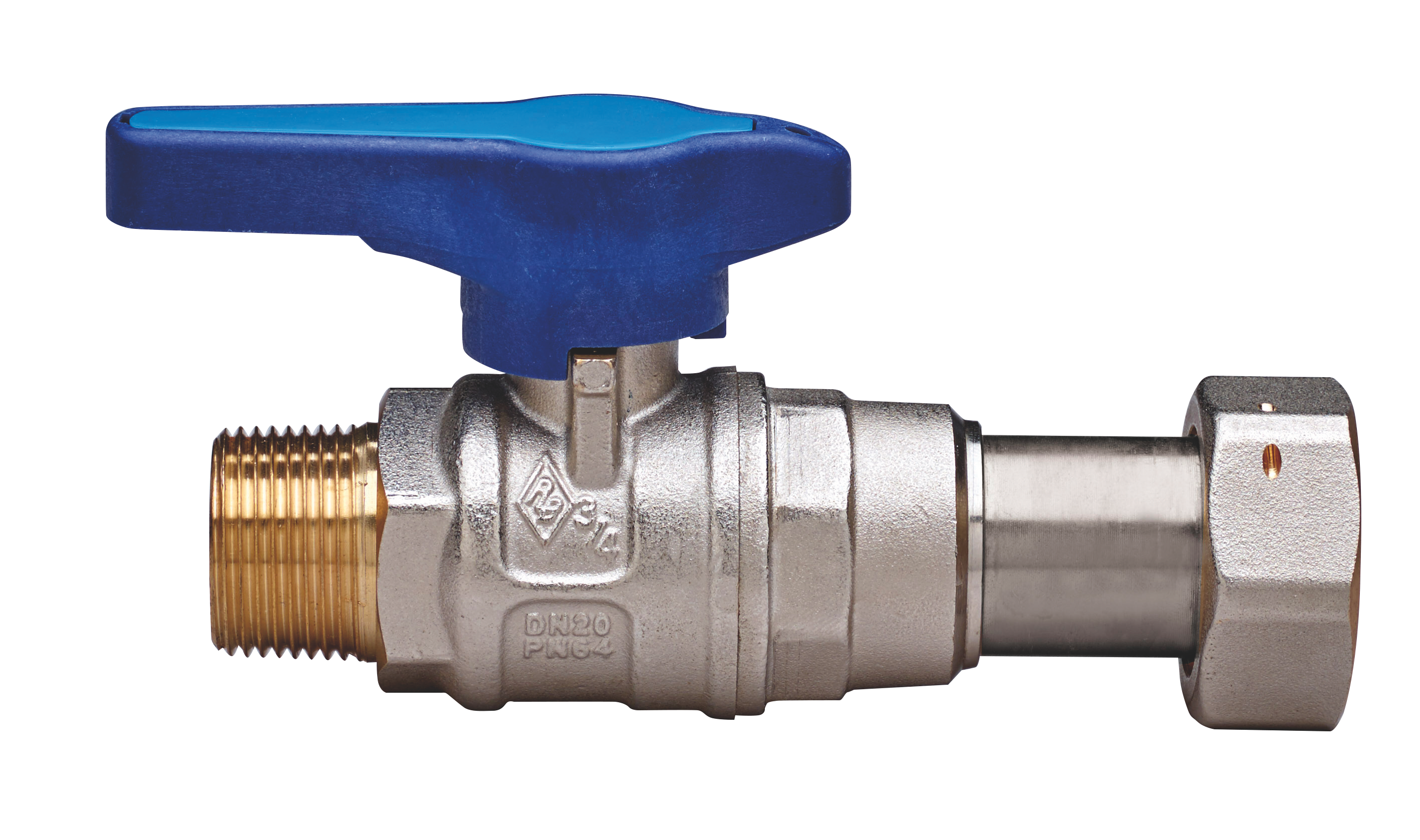

Water full bore ball valve with meter’s entrance, thread male/telescopic fitting, tecnopolymer handle and ball with automatic rinse system.

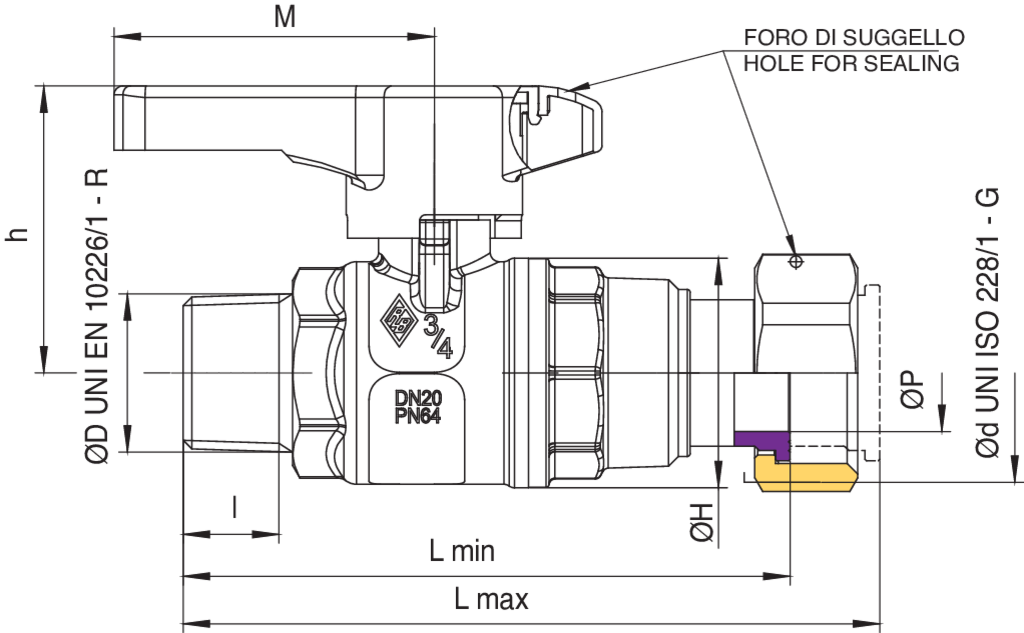

Technical specifications

ØD x Ød	BOX	MASTER BOX	CODE	ØP	I	Ch	ØH	L min	L max	h	M	Kv	PN	Kg
1/2" x 3/4"	10	40	2046260000	15	15	27	33	91,5	105	41,5	54,5	16,3	64	0,31
3/4" x 1"	10	20	2046580000	20	16,3	32	39	103	118,5	49	54,5	29,5	64	0,51
