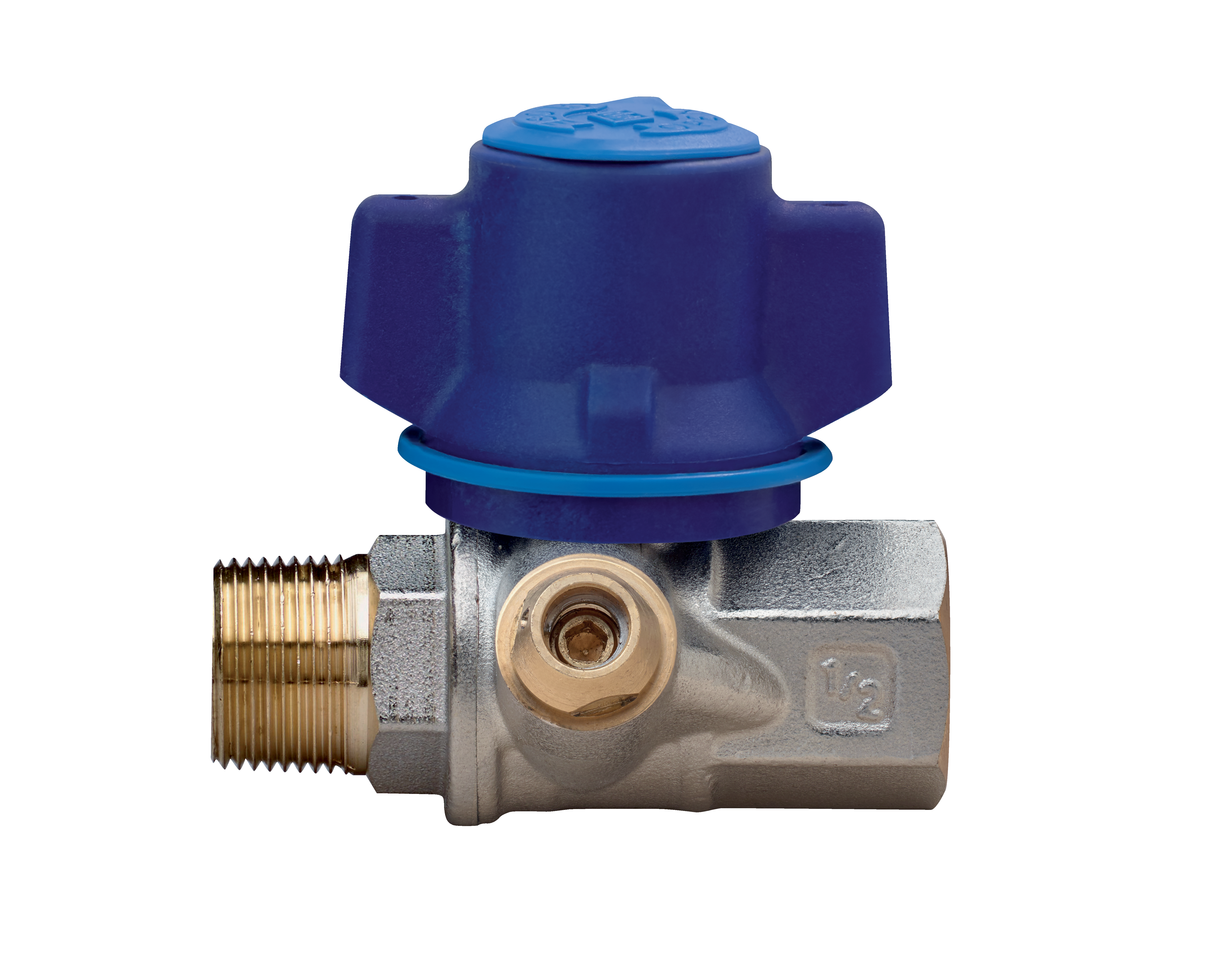

BALL VALVE WITH MINIMUM VITAL WATER FLOW

2091 QB

Full bore ball valve for water meter entry, M/F threaded, unidirectional, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, with minimum vital water flow device and ball with automatic rinsing system.

Technical specifications

SIZE	DN	BOX	MASTER BOX	CODE	Minimum vital (L/gg)	ØP	I	L	ØH	Ch	M	A	h	Kv	PN	Kg
1/2"	15	15	60	2091040151*	150	15	15	75	33	27	57	38,5	55,5	16	64	0,33
1/2"	15	15	60	2091040301*	300	15	15	75	33	27	57	38,5	55,5	16	64	0,33
1/2"	15	15	60	2091040601*	600	15	15	75	33	27	57	38,5	55,5	16	64	0,33
3/4"	20	10	40	2091050151*	150	20	16,3	88,5	39	32	57	40,5	63	29	64	0,46
3/4"	20	10	40	2091050301*	300	20	16,3	88,5	39	32	57	40,5	63	29	64	0,46
3/4"	20	10	40	2091050601*	600	20	16,3	88,5	39	32	57	40,5	63	29	64	0,46
1"	25	10	20	2091060151*	150	25	19,1	96,5	49	38	57	43,5	66,5	42,5	64	0,65
1"	25	10	20	2091060301*	300	25	19,1	96,5	49	38	57	43,5	66,5	42,5	64	0,65
1"	25	10	20	2091060601*	600	25	19,1	96,5	49	38	57	43,5	66,5	42,5	64	0,65
