CATALOGUE
/
COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
5T0200
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
5T0200

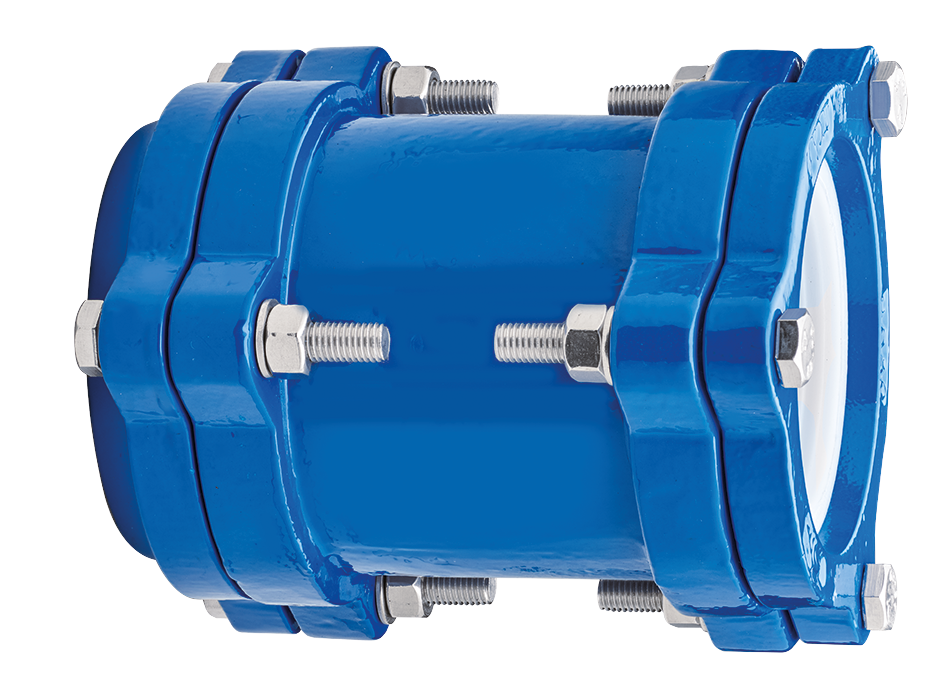

Coupling cast iron fitting with flanges for PE pipe.

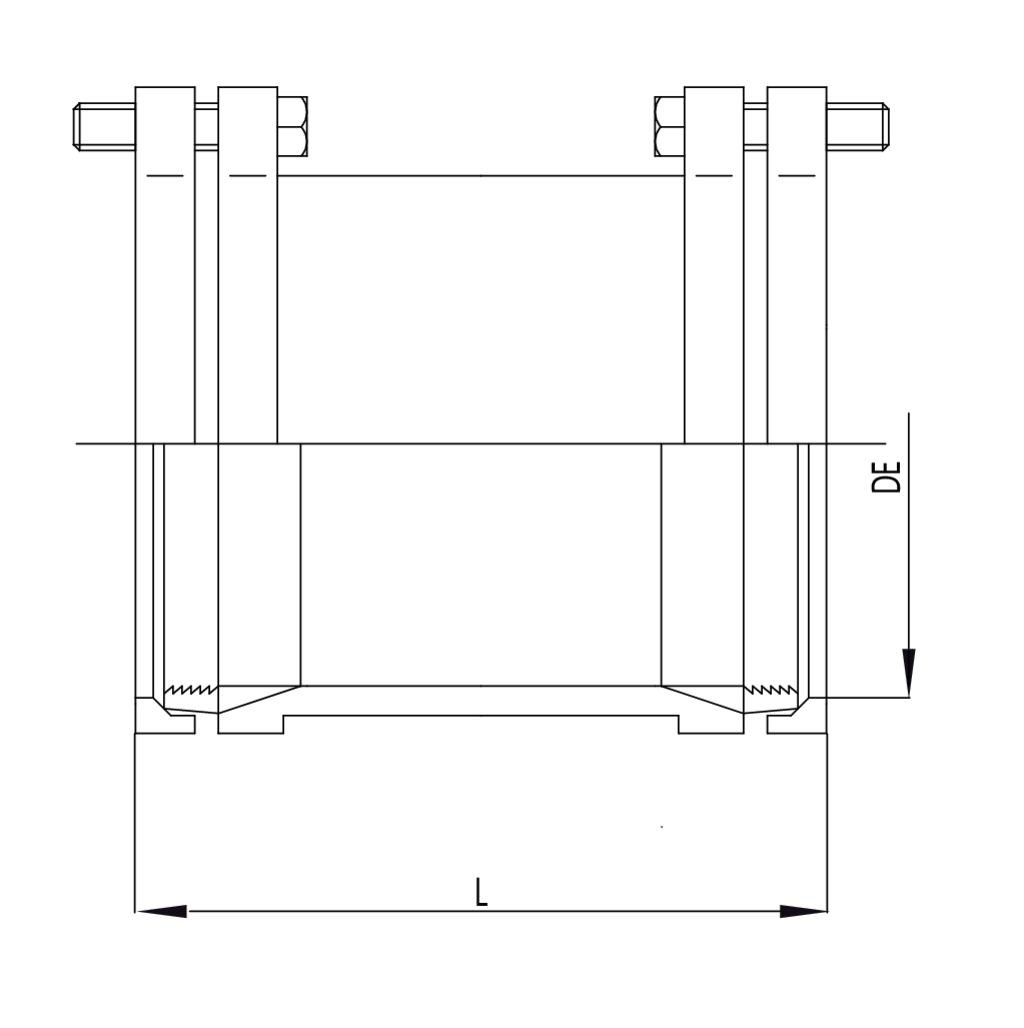

Technical specifications
Ø Tubi DE - Ø Pipe DE
BOX
CODE
L
Kg
110
1
5T0200110
212
8,7
125
1
5T0200125
210
8,6
75
1
5T02007
185
5,00
90
1
5T020090
206
6,2
Applications
Available media and videos
Catalogue
Price list
TURBO RING – Tecnovielle
Back to the catalogue
