COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX

583200

T fitting with patented quick connection.

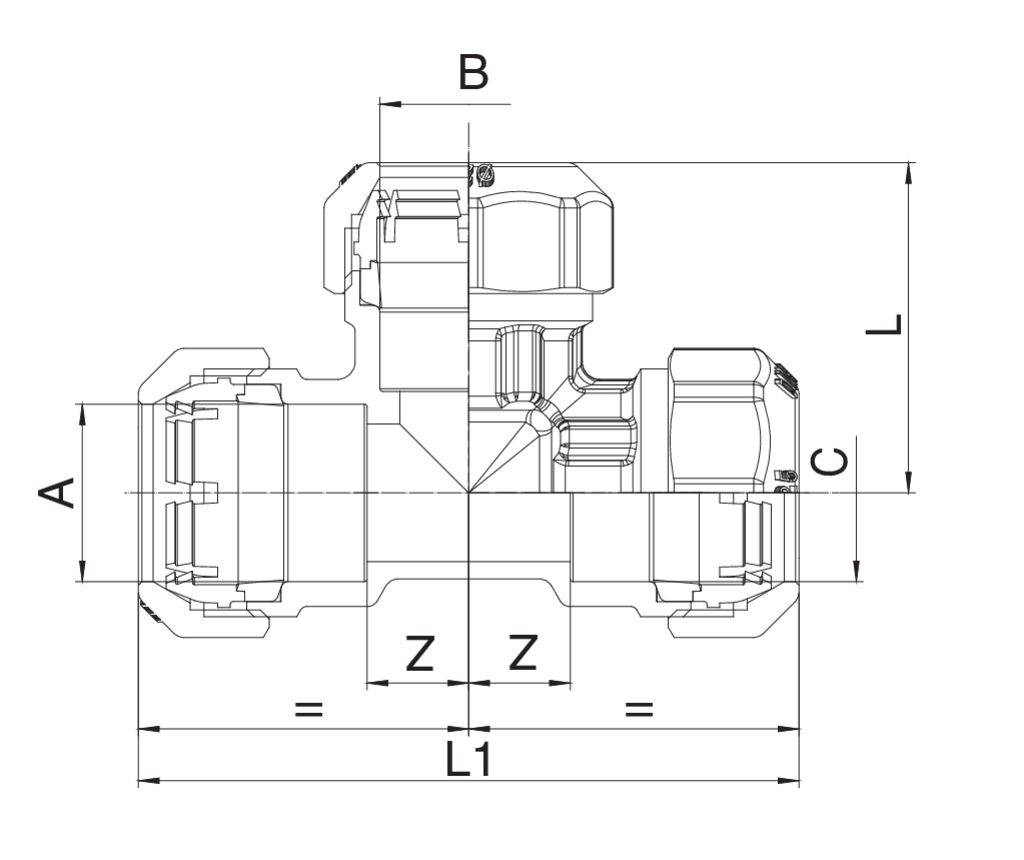

Technical specifications

A x B	BOX	MASTER BOX	CODE	Ch	L	L1	Z
20 x 1/2''	15	60	58320020	34	39,5	79	12
25 x 3/4''	10	40	58320025	41	48	96	15
32 x 1''	6	24	58320032	51	56	112	17,5
40 x 1''1/4	2	8	58320040	59	71	142	23
50 x 1''1/2	2	8	58320050	70	79,5	159	28,5
63 x 2''	2	4	58320063	87	96,5	193	36
