COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
583100
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
583100
Female T fitting with patented quick connection.

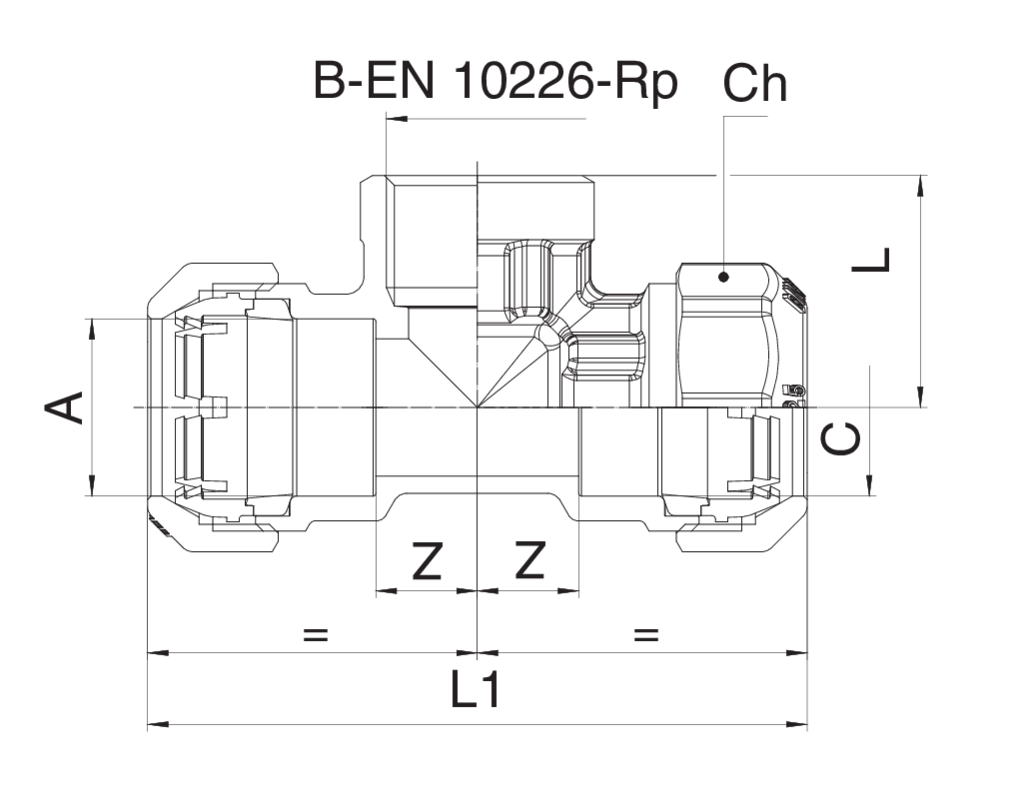

Technical specifications
A x B
BOX
MASTER BOX
CODE
I
Ch
L
L1
Z
20 x 1/2''
15
60
583100200420
15
34
29,5
79
12
25 x 3/4''
10
40
583100250525
16,3
41
34
96
15
32 x 1''
6
24
583100320632
19,1
51
39,5
112
17,5
40 x 1''1/4
4
16
583100400740
21,4
59
48
142
23
50 x 1''1/2
2
8
583100500850
21,4
70
60
159
28,5
63 x 2''
2
4
583100631063
25,7
87
73
193
36
Applications
