CATALOGUE
/
COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
581200
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
581200

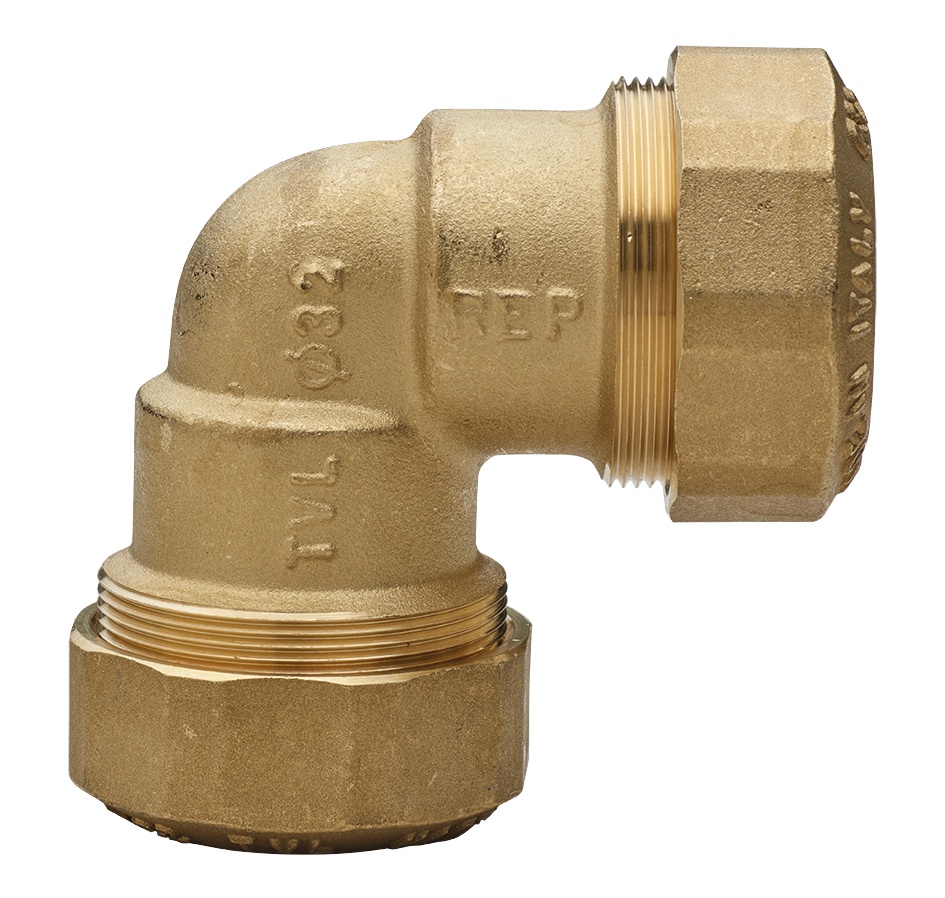

Elbow with patented quick connection.

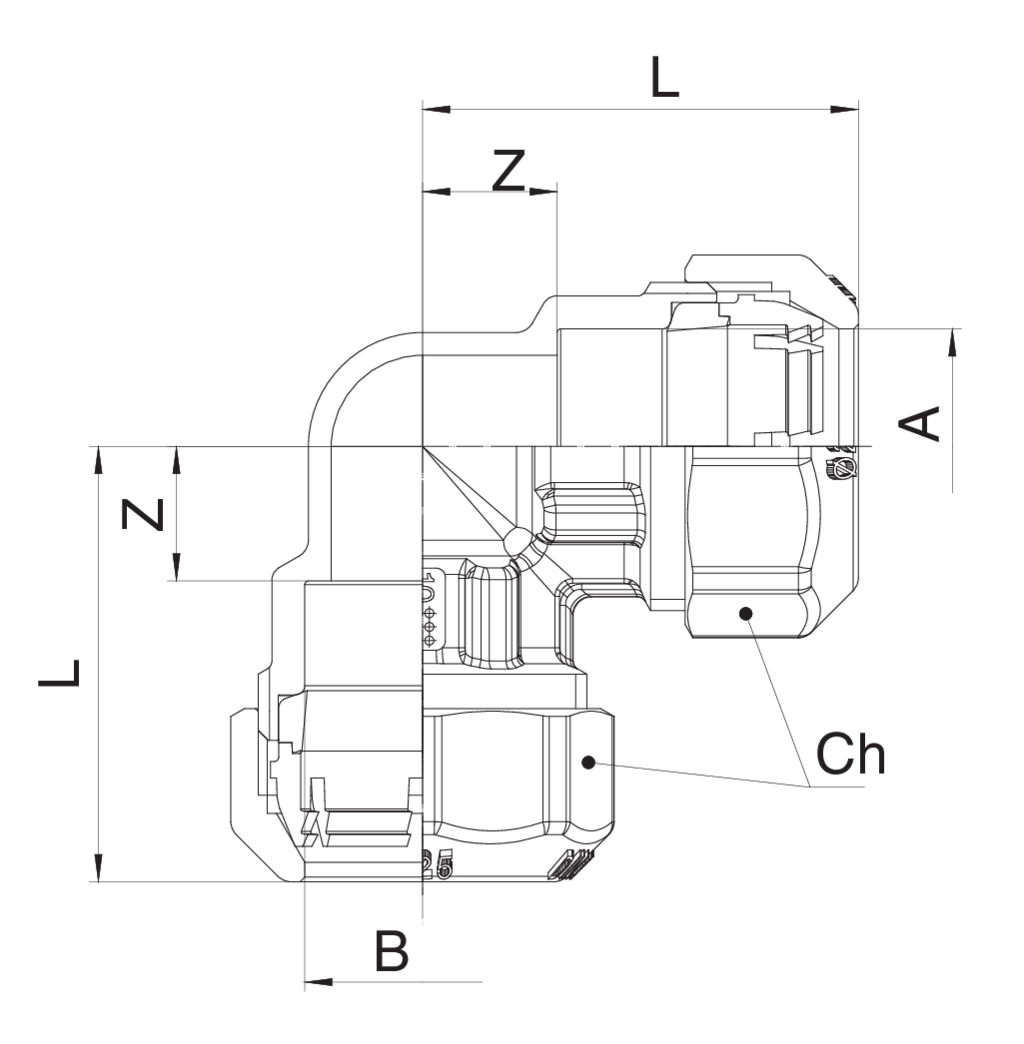

Technical specifications
A x B
BOX
MASTER BOX
CODE
L
Ch
20 x 20
20
80
58120020
43
34
25 x 25
15
60
58120025
51
41
32 x 32
8
32
58120032
58
51
40 x 40
4
16
58120040
73,5
59
50 x 50
2
8
58120050
84,5
70
63 x 63
2
4
58120063
100
87
Applications
