COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
581000
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
581000

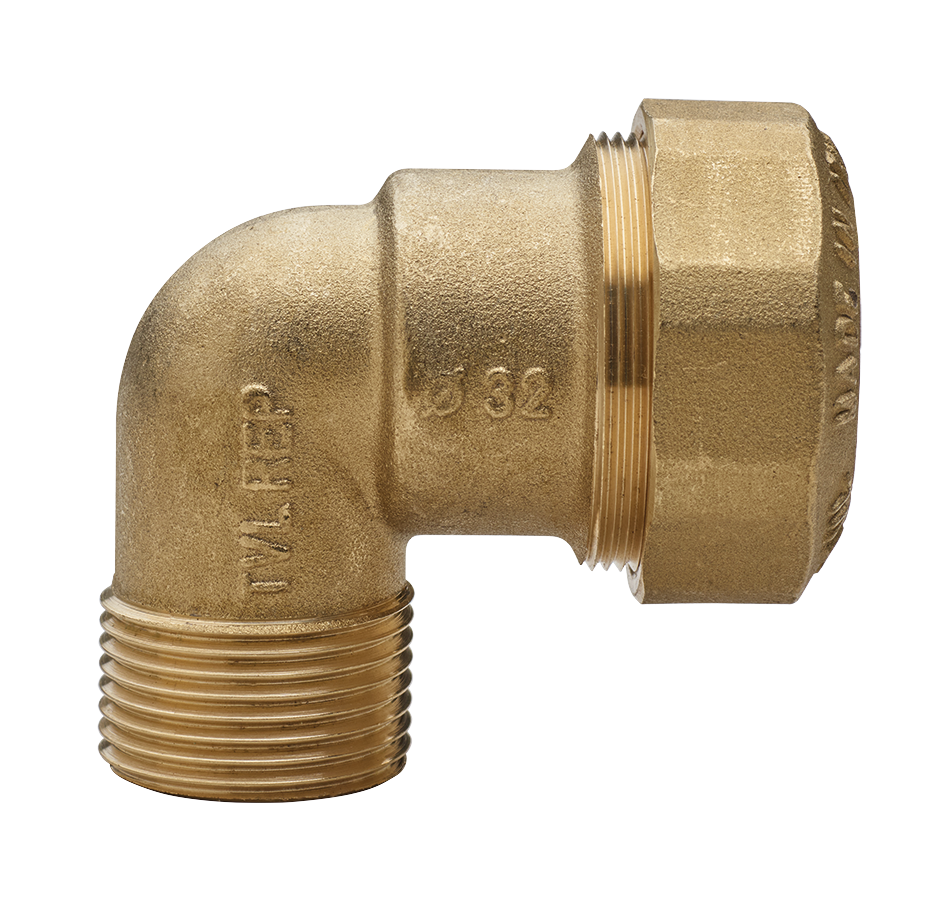

Male elbow with patented quick connection.

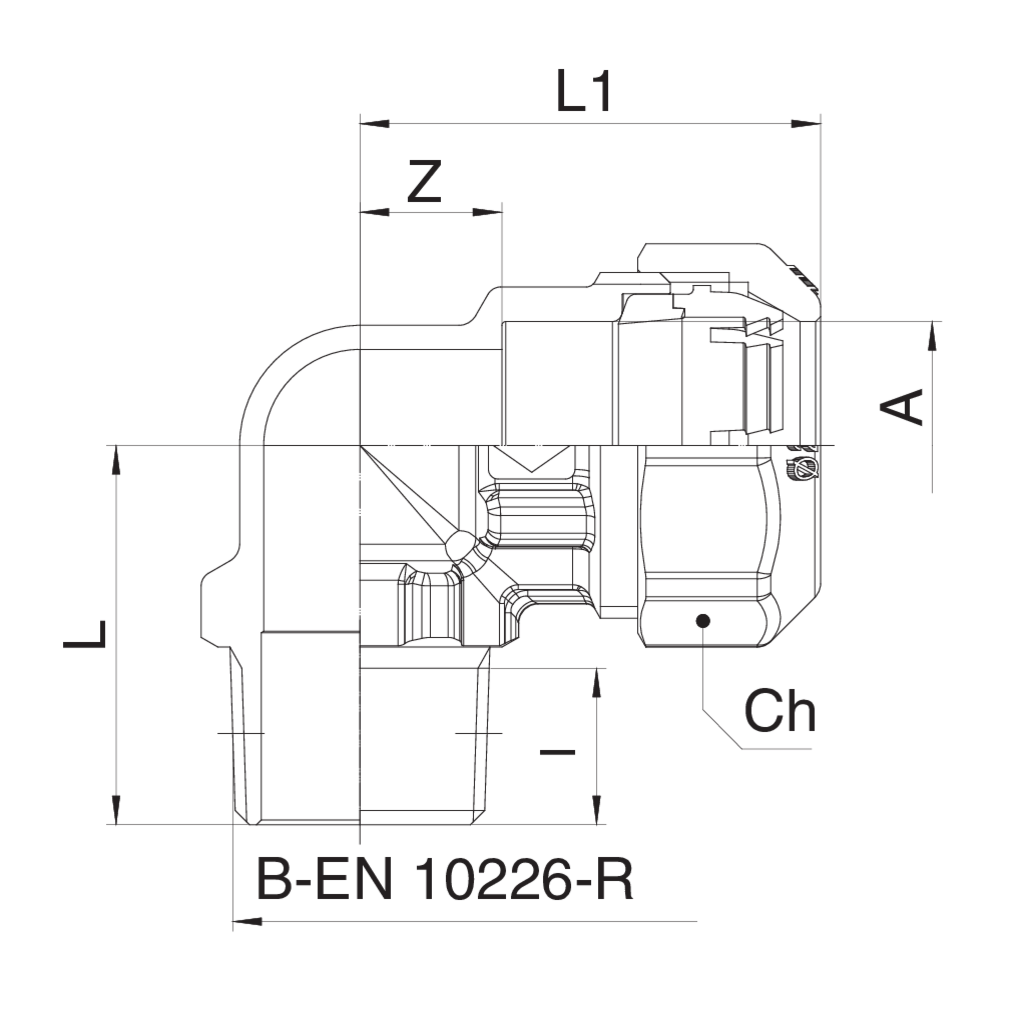

Technical specifications
A x B
BOX
MASTER BOX
CODE
I
Ch
L
L1
Z
20 x 1/2''
20
80
5810002004
12,5
34
42,5
33
12
25 x 1/2''
15
60
5810002504
12,5
41
51
36,2
15
25 x 3/4''
15
60
5810002505
13,5
41
51
39
16
32 x 1''
10
40
5810003206
15,7
51
58
45
17,5
40 x 1''1/4
4
16
5810004007
18,2
59
71,5
55
23
50 x 1''1/2
2
8
5810005008
19
70
81,5
64
28,5
63 x 2''
5
10
5810006310
22,5
87
95
75
36
