COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
580000
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
580000

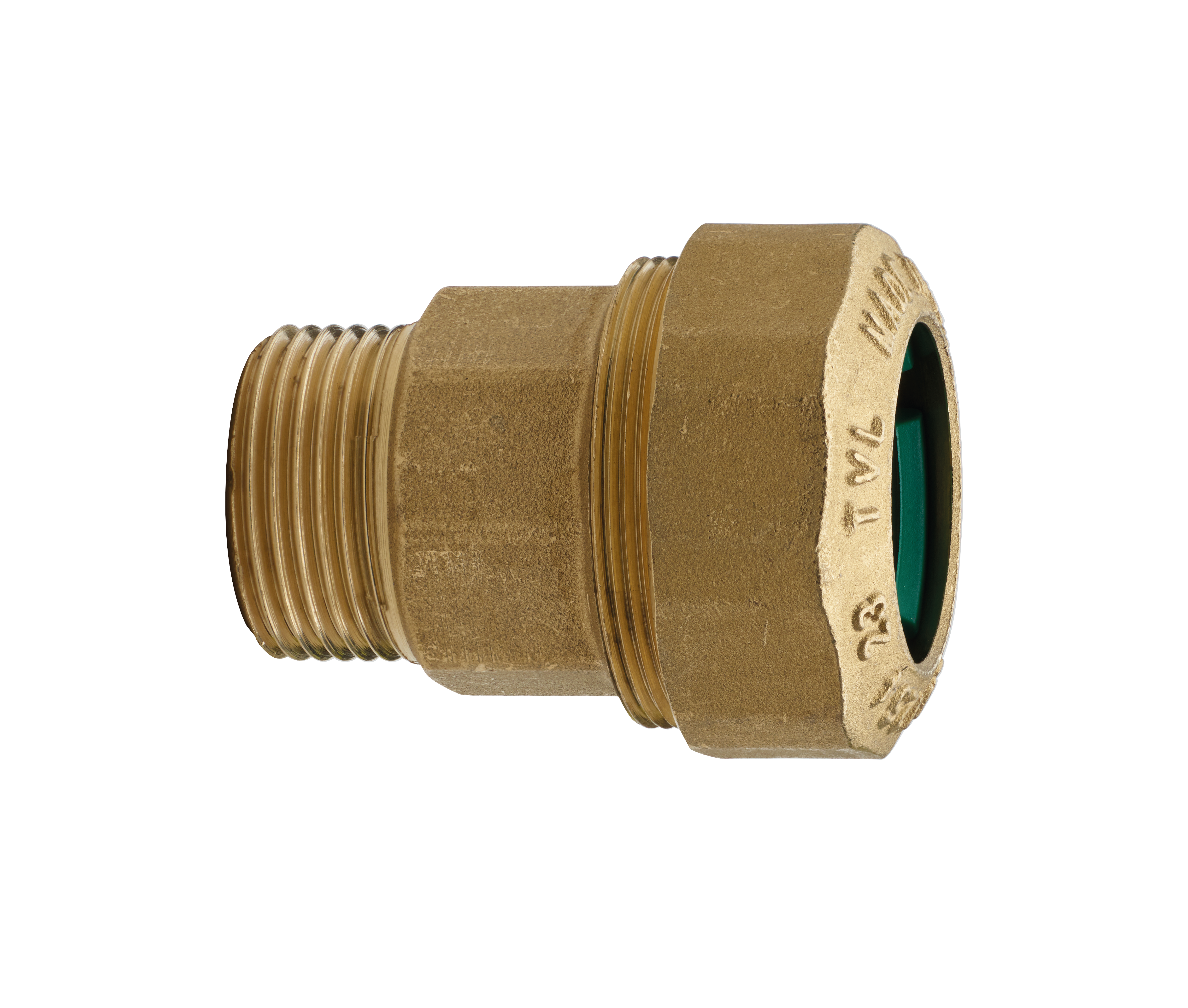

Straight male fitting with patented quick connection.

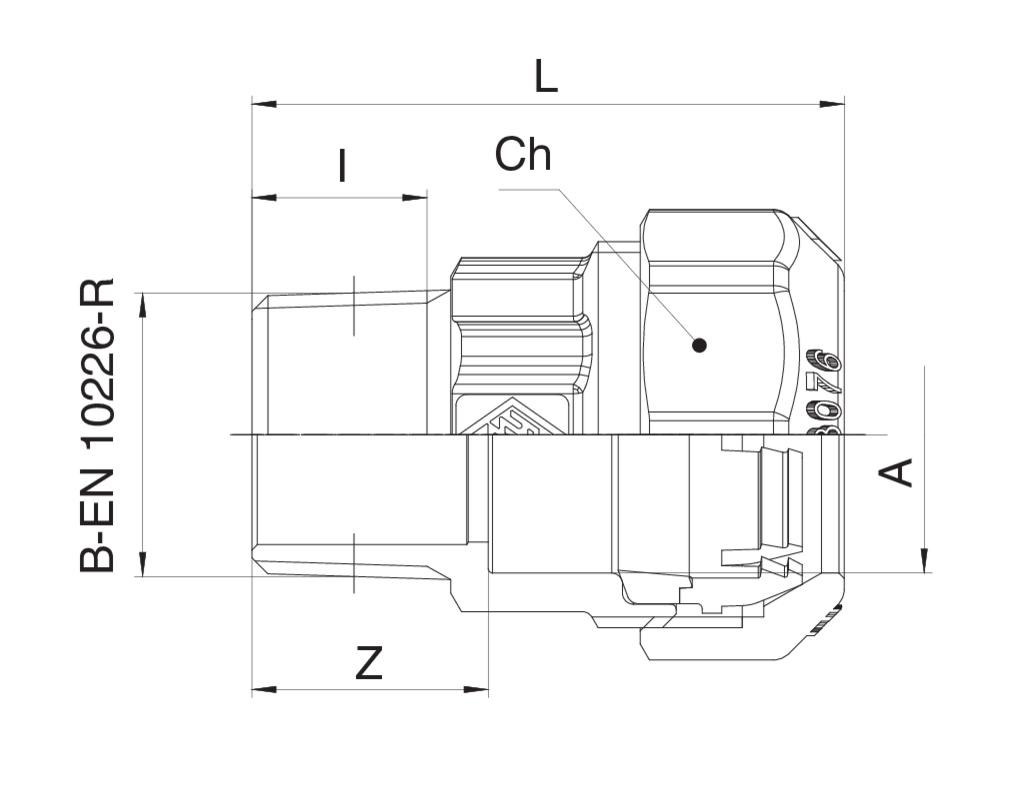

Technical specifications
A x B
BOX
MASTER BOX
CODE
I
Ch
L
Z
20 x 1/2"
30
120
5800002004
12,5
34
48
19,5
25 x 1/2" ¹
30
120
5800002504
12,5
41
56
20,5
25 x 3/4"
30
120
5800002505
13,5
41
55,5
22
25 x 1''
20
80
5800002506
15,7
41
58,5
22
32 x 3/4'' ¹
20
80
5800003205
13,5
51
62
22
32 x 1''
16
64
5800003206
15,7
51
62
25,5
32 x 1''1/4
12
48
5800003207
18,2
51
65,5
25,5
40 x 1'' ¹
12
48
5800004006
15,7
59
72,5
25,5
40 x 1''1/4
10
40
5800004007
18,2
59
73
28
50 x 1''1/4 ¹
6
24
5800005007
18,2
70
82
28
50 x 1''1/2
6
24
5800005008
19,1
70
81,5
30
63 x 2''
6
12
5800006310
22,5
87
94
35
¹ Reduced.
