COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX

560500

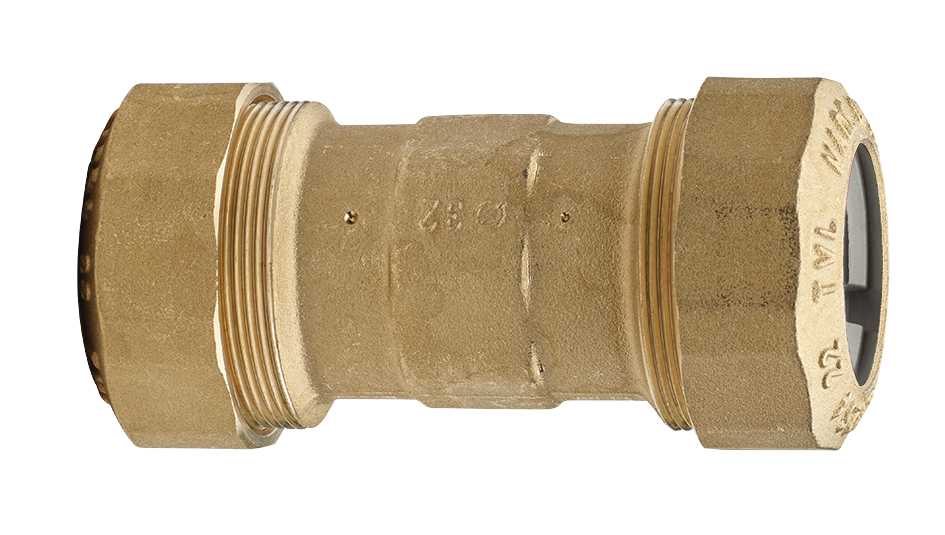

Straight through-hole fitting with fastening ring made in POM.

Technical specifications

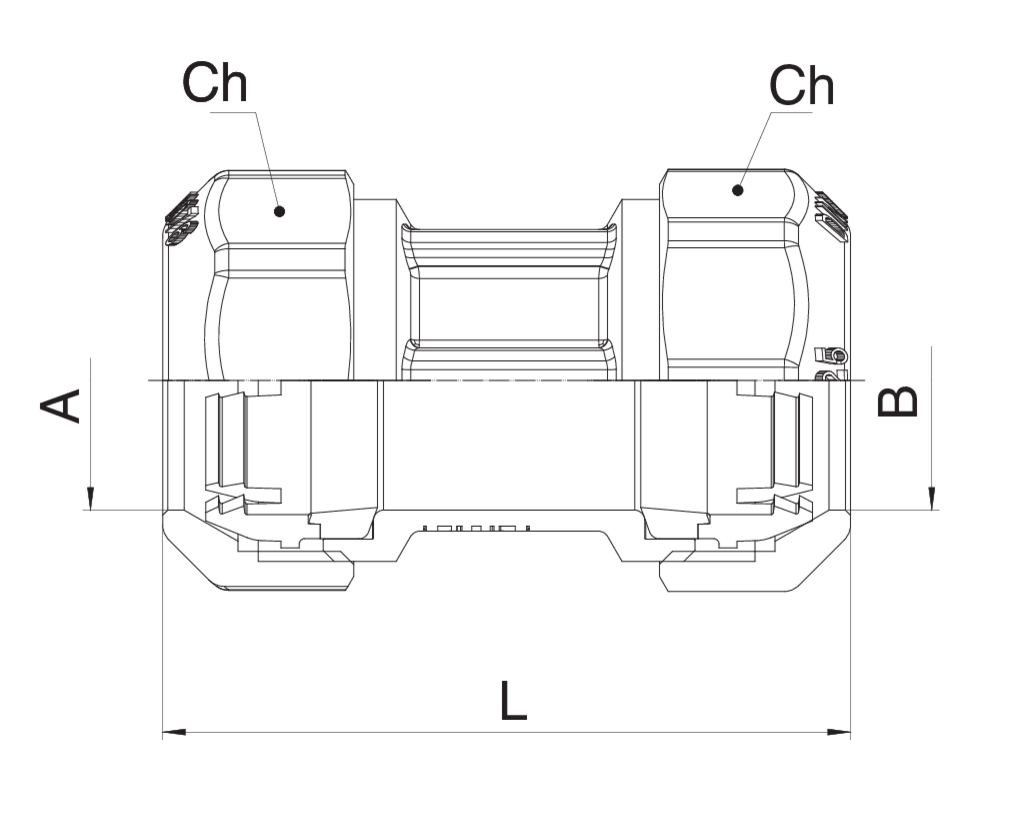

A x B	BOX	MASTER BOX	CODE	L	Ch
20 x 20	30	120	56050020	70	34
25 x 25	16	64	56050025	91	41
32 x 32	8	32	56050032	100	51
40 x 40	4	16	56050040	111	59
50 x 50	4	16	56050050	114,5	70
63 x 63	4	16	56050063	137,5	87
75 x 75 ¹	2	4	56050075	150	-
90 x 90 ¹	2	4	56050090	170	-

¹ With flange.
