COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
560200
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
560200
Straight fitting with fastening ring made in POM.

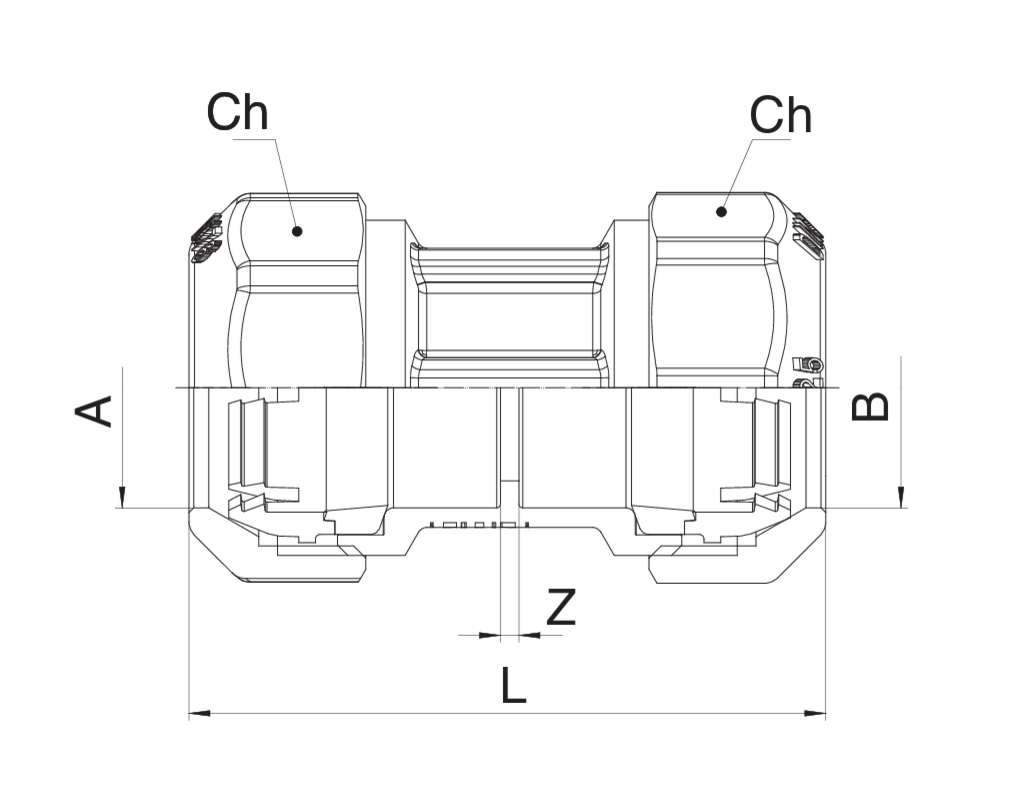

Technical specifications
A x B
BOX
MASTER BOX
CODE
L
Ch
20 x 20
30
120
56020020
70
34
25 x 25
16
64
56020025
91
41
32 x 32
8
32
56020032
100
51
40 x 40
4
16
56020040
111
59
50 x 50
4
16
56020050
114,5
70
63 x 63
4
16
56020063
137,5
87
75 x 75 ¹
2
4
56020075
150
-
90 x 90 ¹
2
4
56020090
170
-
110 x 100 ¹ ²
1
2
570200110
221
-
¹ With flange.
² Art. 570200.
