COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
560100
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
560100

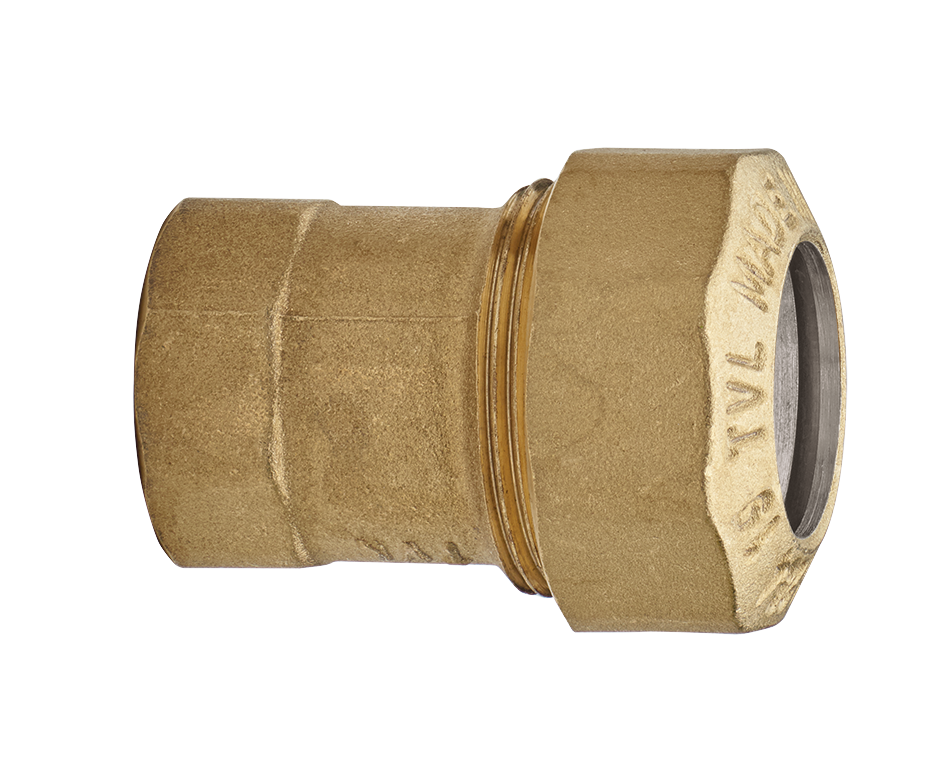

Straight female fitting with fastening ring made in POM.

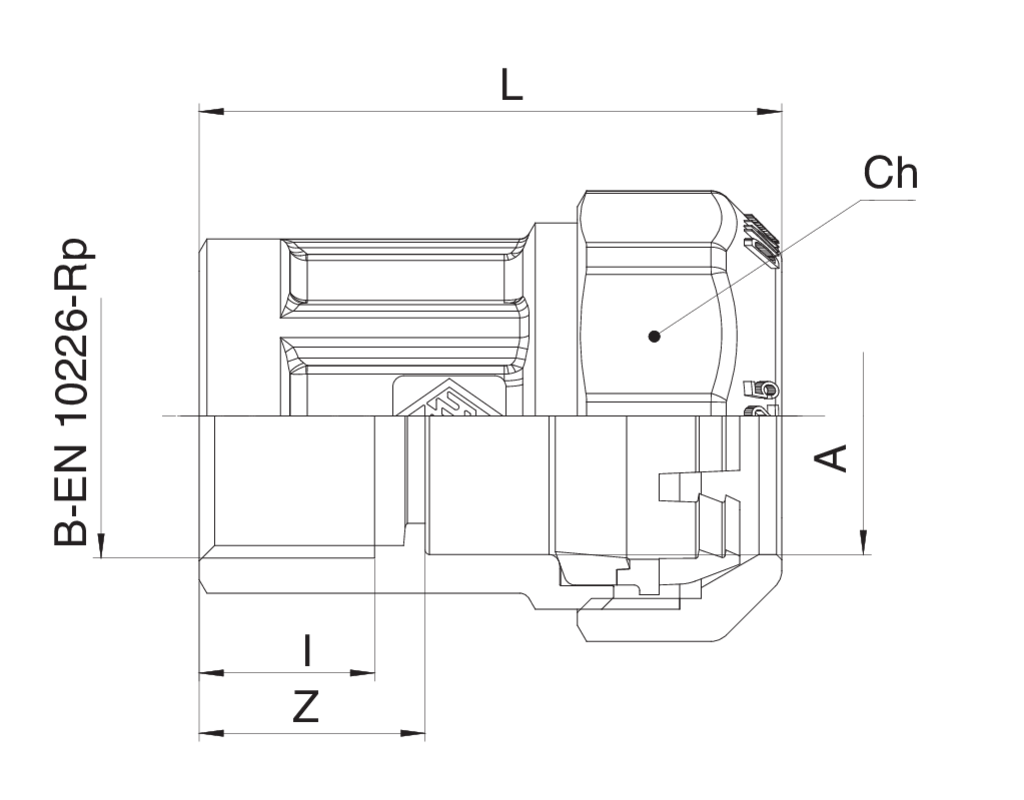

Technical specifications
A x B
BOX
MASTER BOX
CODE
I
Ch
L
Z
20 x 1/2"
30
120
5601002004
15
34
47
19,5
25 x 1/2" ²
25
100
5601002504
15
41
56
17
25 x 3/4"
20
80
5601002505
16,3
41
55,5
21
32 x 3/4" ²
20
80
5601003205
16,3
51
61
18,5
32 x 1"
16
64
5601003206
19,1
51
62
24,5
40 x 1" ²
10
40
5601004006
19,1
59
72
22
40 x 1"1/4
10
40
5601004007
21,4
59
73
27,5
50 x 1"1/4 ²
6
24
5601005007
21,4
70
81
25
50 x 1"1/2
6
24
5601005008
21,4
70
76
29,5
63 x 2"
8
16
5601006310
25,7
87
85
33,5
75 x 2"1/2 ¹
1
4
5601007512
25
-
90
30
90 x 3'' ¹
1
4
5601009014
26
-
105
32
110 x 4'' ¹ ³
1
2
57010011018
30
-
115
37
¹ With flange. - ² Reduced.
³ Art. 570100.
