CATALOGUE
/
BALL VALVES SERIES
/
FULL-SFER
/
4291
FULL-SFER

4291

Made in Italy
Built-in valve, F/F threaded, with stop cock, with protection cover.
Technical specifications

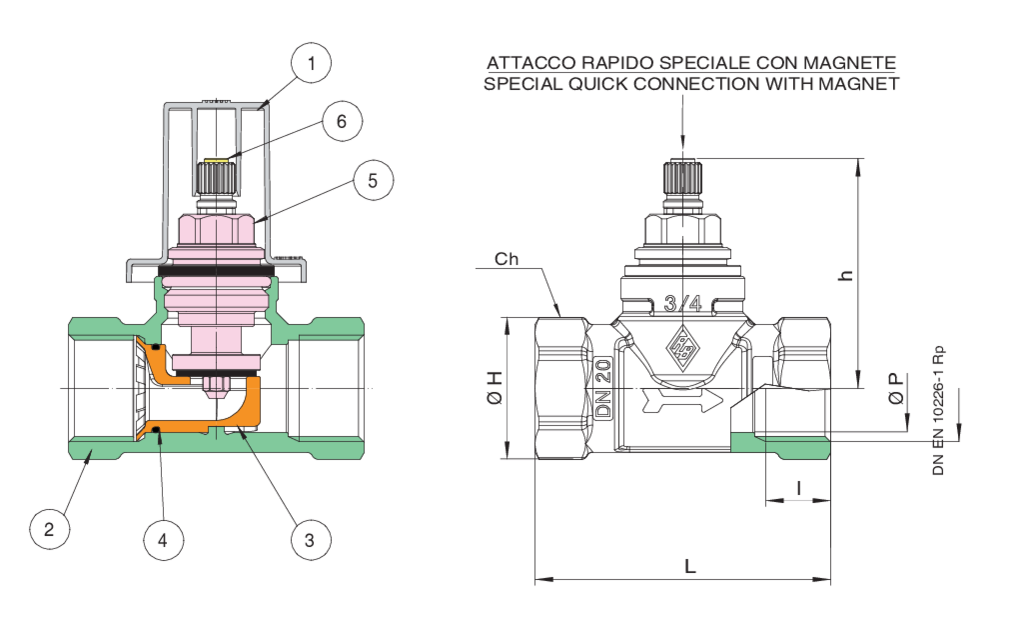

Position Part name Material N.° pieces
1 COVER POLY PROPYLENE 1
2 BODY BRASS CW617N UNI EN 12420 1
3 OBSTRUCTOR POM 1
4 O-RING NBR 1
5 OBSTRUCTOR POM 1
6 MAGNET NEODIMIO 1
SIZE DN BOX MASTER BOX CODE ØP I L h ØH Ch Kv PN Kg
1/2" 15 10 40 4291040000 15 15 64 54,50 30,50 27 1,95 16 0,30
3/4" 20 10 20 4291050000 20 16,30 74 57,50 35,50 32 3,64 16 0,357

Temperature range: -20°C +75°C.
