EXPO-SFER COMPACT

4644

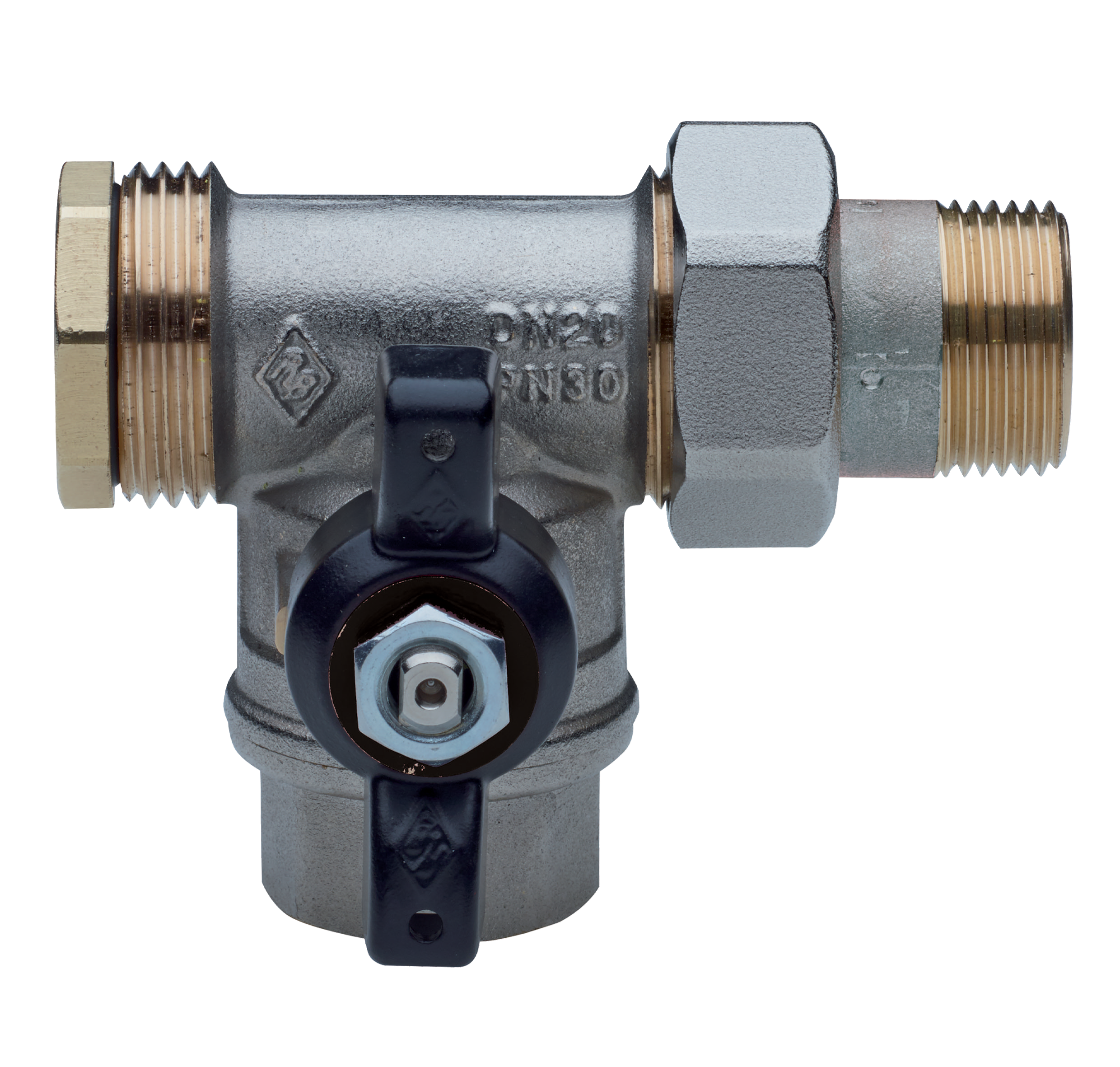

Angle ball valve for right/left manifolds, with front butterfly in black aluminum, red and blue cover to identify hot/cold flow.

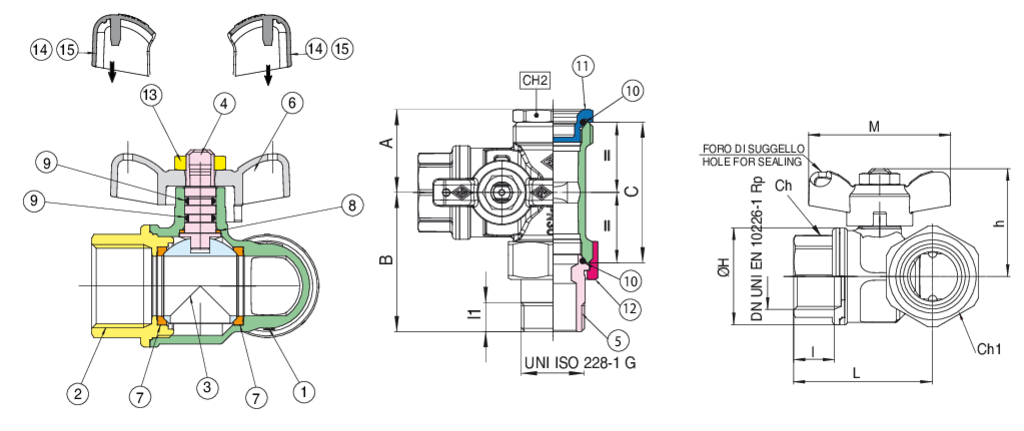

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	BRASS CW617N UNI EN 12420	1
2	END CONNECTION	BRASS CW617N UNI EN 12420	1
3	BALL	BRASS CW617N UNI EN 12420	1
4	STEM	BRASS CW614N UNI EN 12164	1
5	UNION TAIL	BRASS CW617N UNI EN 12420	1
6	T-HANDLE	ALUMINIUM EN-AC 46100 EN 1706	1
7	BALL SEAT	PTFE	2
8	STEM SEAT	PTFE	1
9	O-RING	EPDM	2
10	O-RING	EPDM	2
11	CAP	BRASS CW614N UNI EN 12164	1
12	NUT	BRASS CW617N UNI EN 12165	1
13	NUT	STEEL CL 04	1
14	COVER	RED PE	1
15	COVER	BLUE PE	1

SIZE	DN	BOX	MASTER BOX	CODE	ØP	I	A	B	C	I1	ØH	Ch	Ch1	Ch2	L	M	h	PN	Kg
1/2"	15	15	30	4644040000	15	15	28,5	49,5	47,5	10	33	25	30	24	48	50	41,5	30	0,31
3/4"	20	15	30	4644050000	20	16,3	34,5	58	58,5	12	39	31	37	31	56	57	43,5	30	0,51
1"	25	10	20	4644060000	25	19,1	42	68	70,5	14	49	38	47	40	67	57	46	30	0,86

Temperature range: -20°C +130°C.
