PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
595010
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
595010

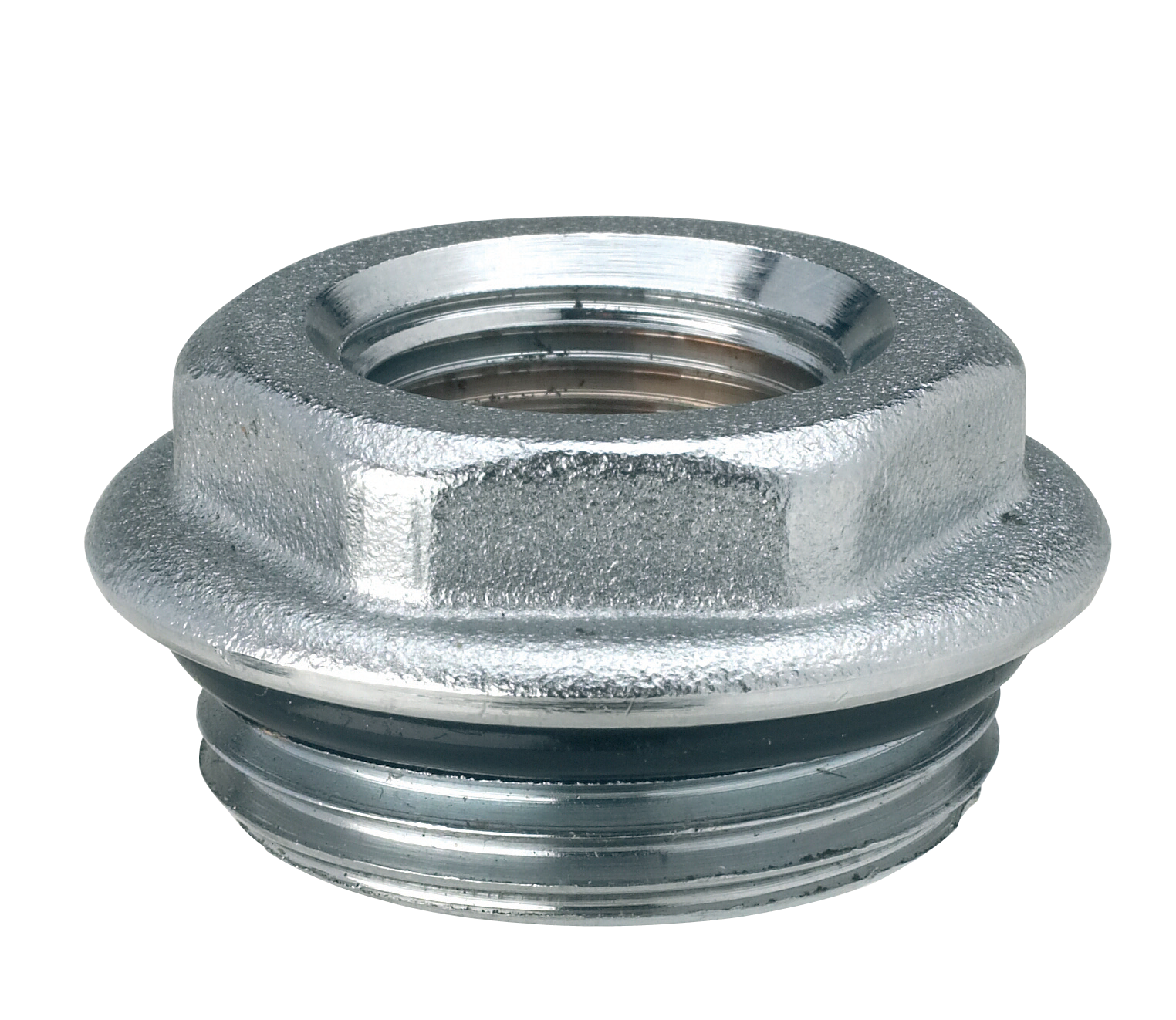

Brass male-female reduction with O-ring.

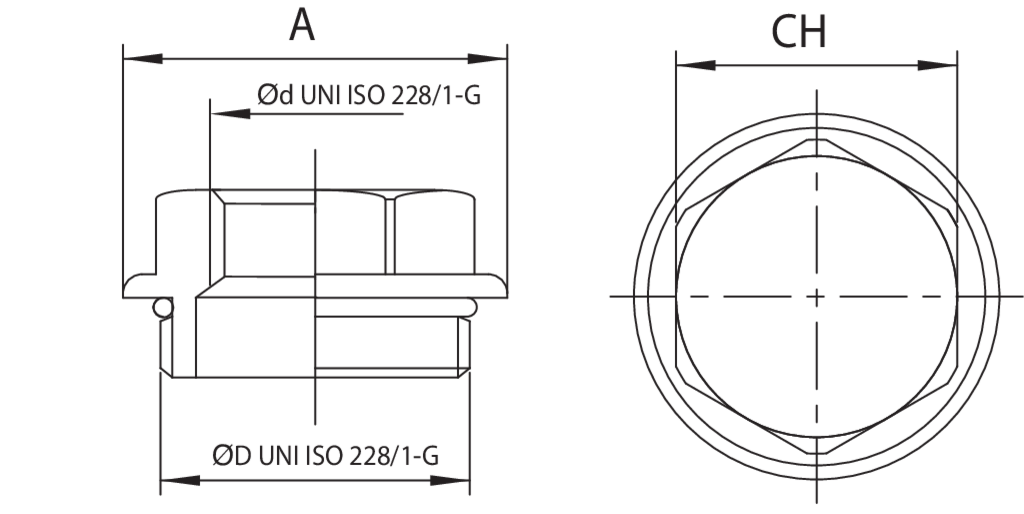

Technical specifications
TRATTAMENTO - TREATMENT
ØD x Ød
BOX
MASTER BOX
CODE
CH
A
Nichelato - Nickel plated
3/4" x 3/8"
100
600
5950100503
25
33
Nichelato - Nickel plated
3/4" x 1/2"
100
600
5950100504
25
33
Nichelato - Nickel plated
1" x 3/8"
50
300
5950100603
30
39
Nichelato - Nickel plated
1" x 1/2"
50
300
5950100604
30
39
Nichelato - Nickel plated
1" x 3/4"
50
300
5950100605
30
39
