PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
500190
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
500190

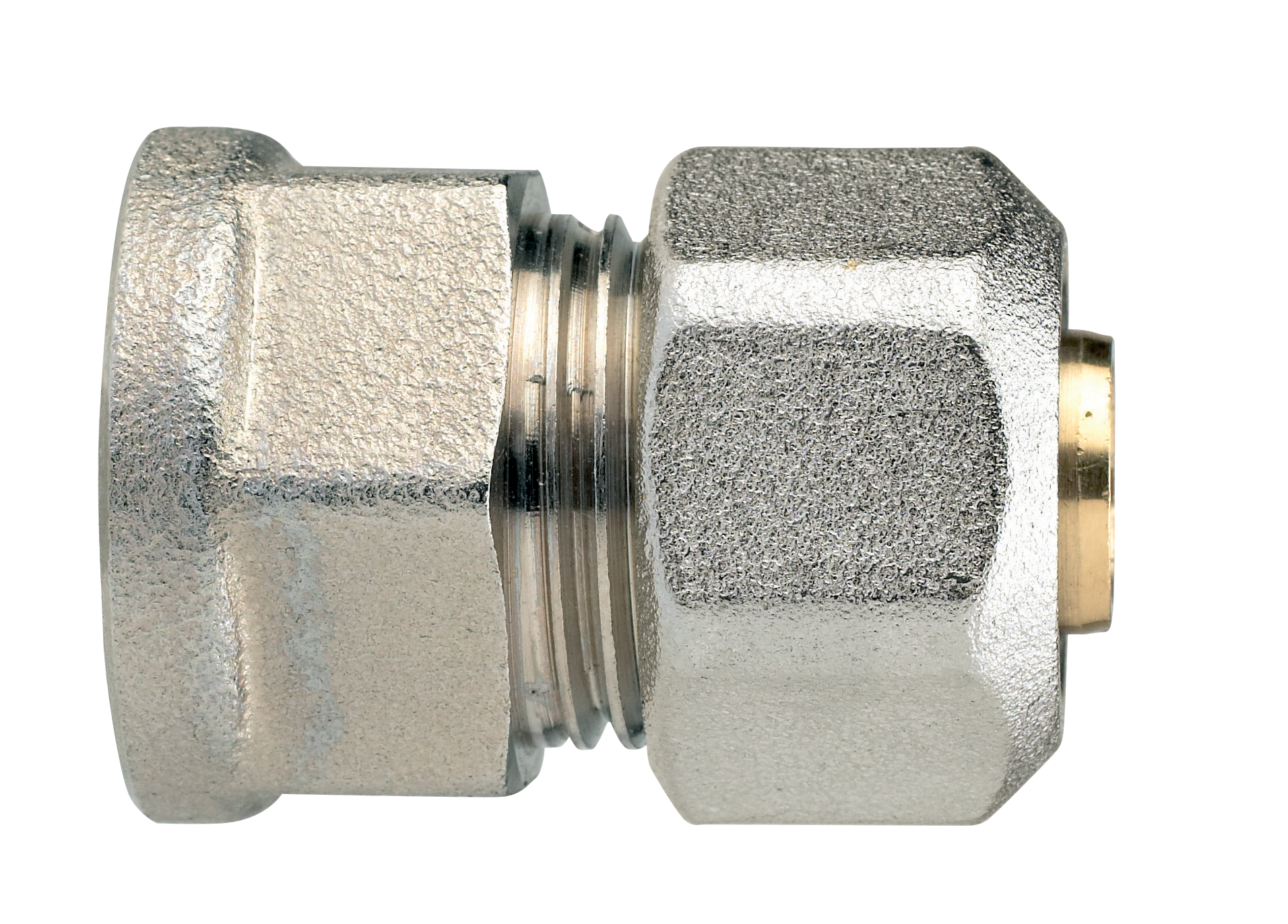

Female thread straight fitting for multilayer pipe.

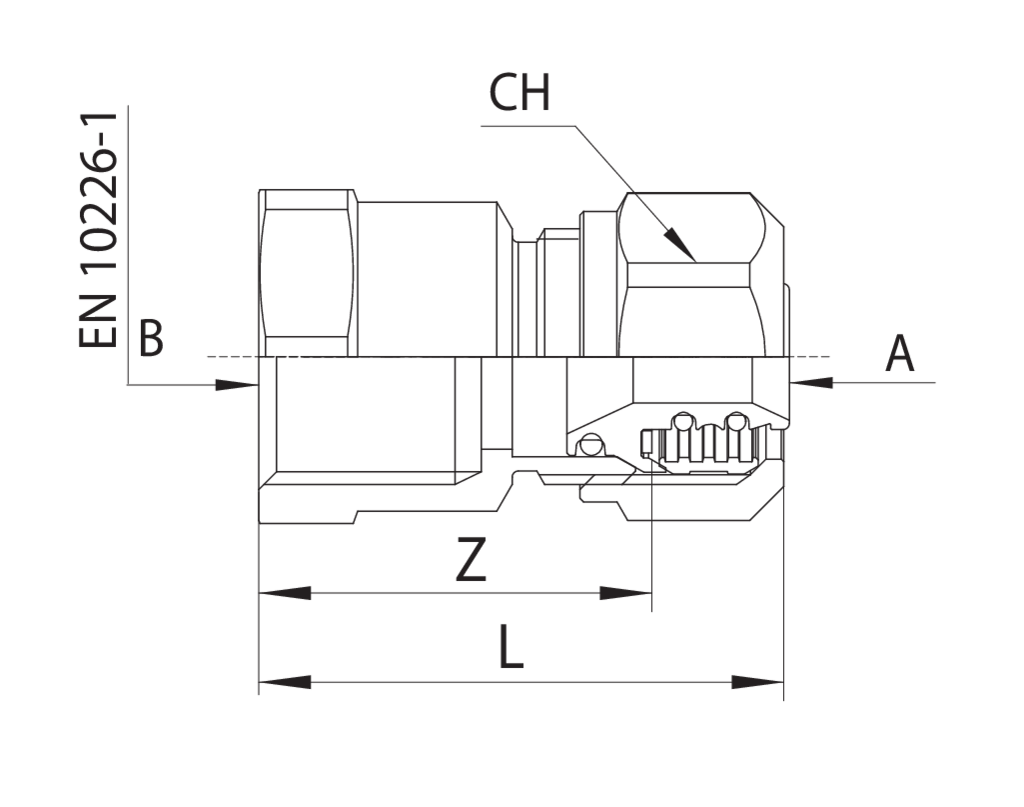

Technical specifications
TRATTAMENTO - TREATMENT
A x B
SP
BAG
BOX
MASTER BOX
CODE
CH
L
Z
Nichelato - Nickel plated
14 x 1/2"
2
5
40
160
500190142004
24
42
30,5
Nichelato - Nickel plated
14 x 3/4"
2
5
25
100
500190142005
24
45
33,5
Nichelato - Nickel plated
16 x 1/2"
2
5
40
160
500190162004
24
43
32
Nichelato - Nickel plated
16 x 3/4"
2
5
20
80
500190162005
24
46
35
Nichelato - Nickel plated
18 x 1/2"
2
5
25
100
500190182004
30
42,5
30,5
Nichelato - Nickel plated
18 x 3/4"
2
5
20
80
500190182005
30
48
36
Nichelato - Nickel plated
20 x 1/2"
2
5
25
100
500190202004
30
45,5
33
Nichelato - Nickel plated
20 x 3/4"
2
5
20
80
500190202005
30
51
38,5
