FIDO-CASA
/
9381
FIDO-CASA
9381

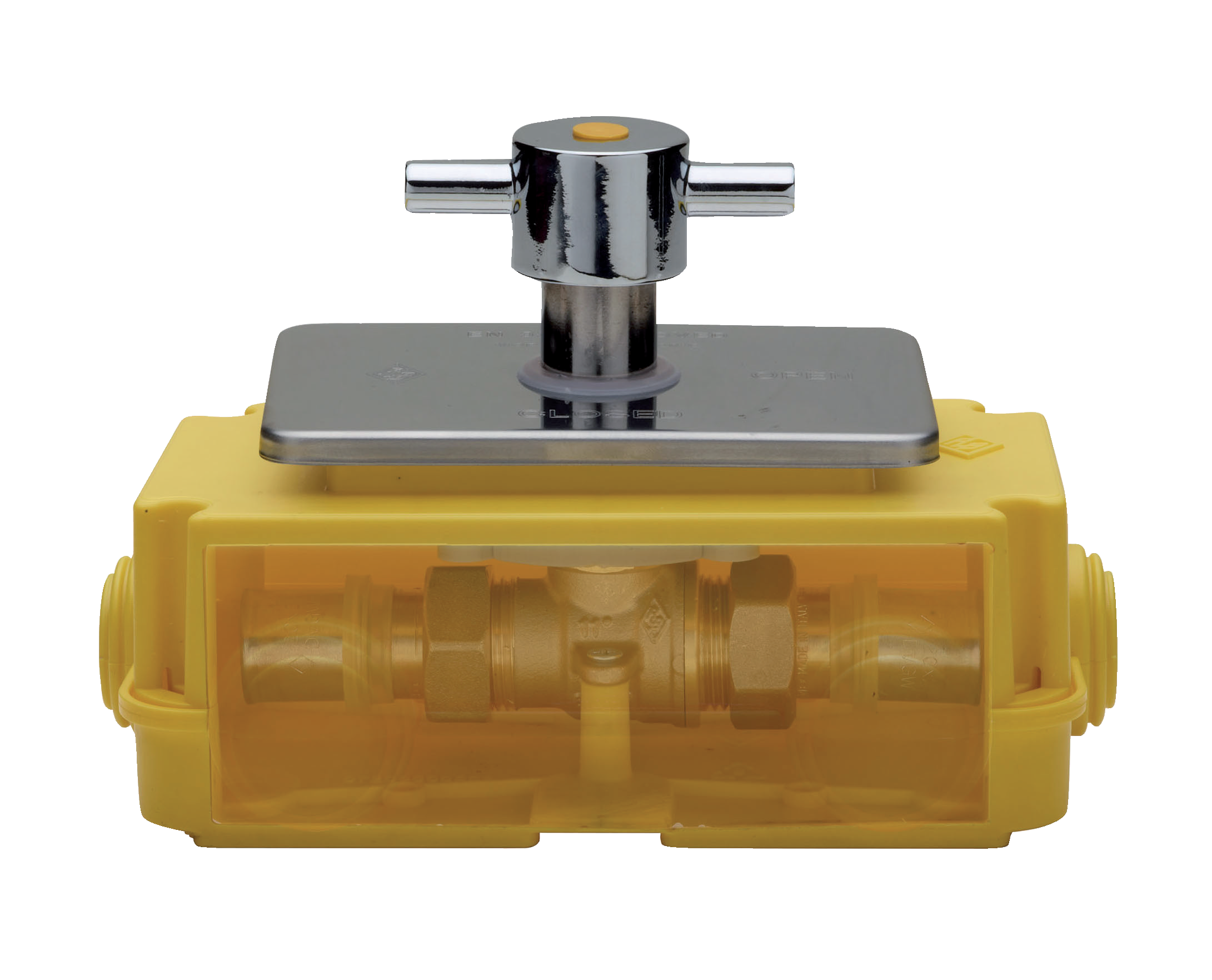

Gas ball valve with built-in inspection box according to UNI 7129, UNI 11528 norms, gas TURBO PRESS GAS straight connections and control lever.
Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12165
1
2
END CONNECTION
BRASS CW614N UNI EN 12164
1
3
BALL
BRASS CW617N UNI EN 12165
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
BUSH
STAINLESS STEEL AISI 304
2
6
STEM RETAINING NUT
PP
2
7
STEM RETAINING NUT
BRASS CW614N UNI EN 12164
1
8
LID SEAL
POLYETHYLENE
1
9
FLAT SEAT
PE
2
10
FITTING
BRASS CW617N UNI EN 12165
2
11
PLATE
STAINLESS STEEL AISI 430
1
12
SUPPORT
POM
3
13
T-HANDLE
ZAMA\G Zn Al14 ALLOY
1
14
SUPPORT
BRASS CW614N UNI EN 12164
1
15
BALL SEAT
PTFE
2
16
CAP
ABS
1
17
O-RING
NBR
2
18
O-RING
HNBR
4
19
O-RING
HNBR
2
20
NUT
BRASS CW617N UNI EN 12165
2
21
SCREW
STEEL
5
22
SCREW
BRASS CW614N UNI EN 12164
1
23
INSPECTION BOX
HIPS
1
24
INSPECTION BOX
HIPS
1
25
COVER
ABS
1
SIZE
BOX
MASTER BOX
CODE
ØT
ØP
A
A1
B
C
D
E
h
l
Ch
L
L1
N
S min
S max
Kg
16
1
4
9381160000
16
15
109
80
299
58
51
70
94,5
101
30
178
120
62,5
1,5
20,5
0,82
20
1
4
9381200000
20
15
109
80
299
58
51
70
94,5
101
30
178
120
62,5
1,5
20,5
0,84
26
1
1
9381260000
26
15
109
80
299
58
51
70
94,5
101
30
178
120
62,5
1,5
20,5
0,86
Valve

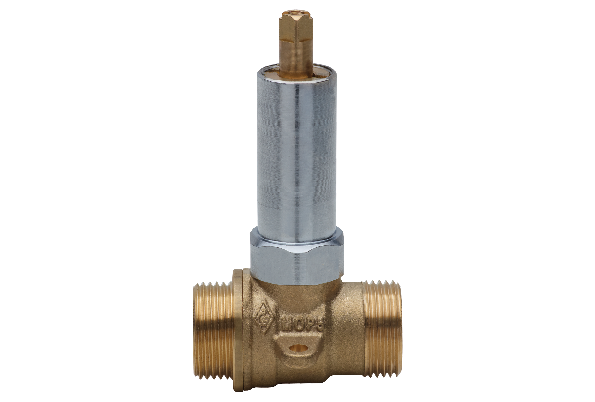

938 C
included.
