JUNIORBLOCK
/
100300
JUNIORBLOCK
100300

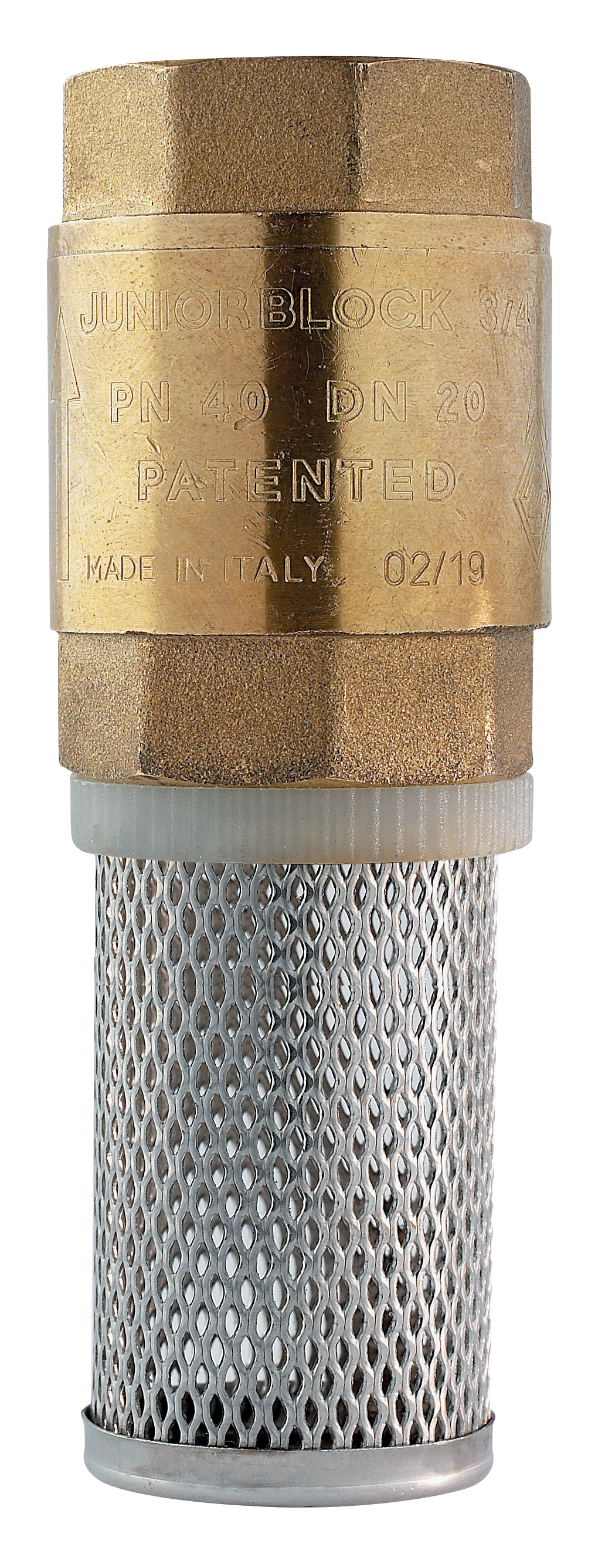

Reduced bore foot valve, UNI ISO 228/1-G, female threaded, with stainless steel strainer.

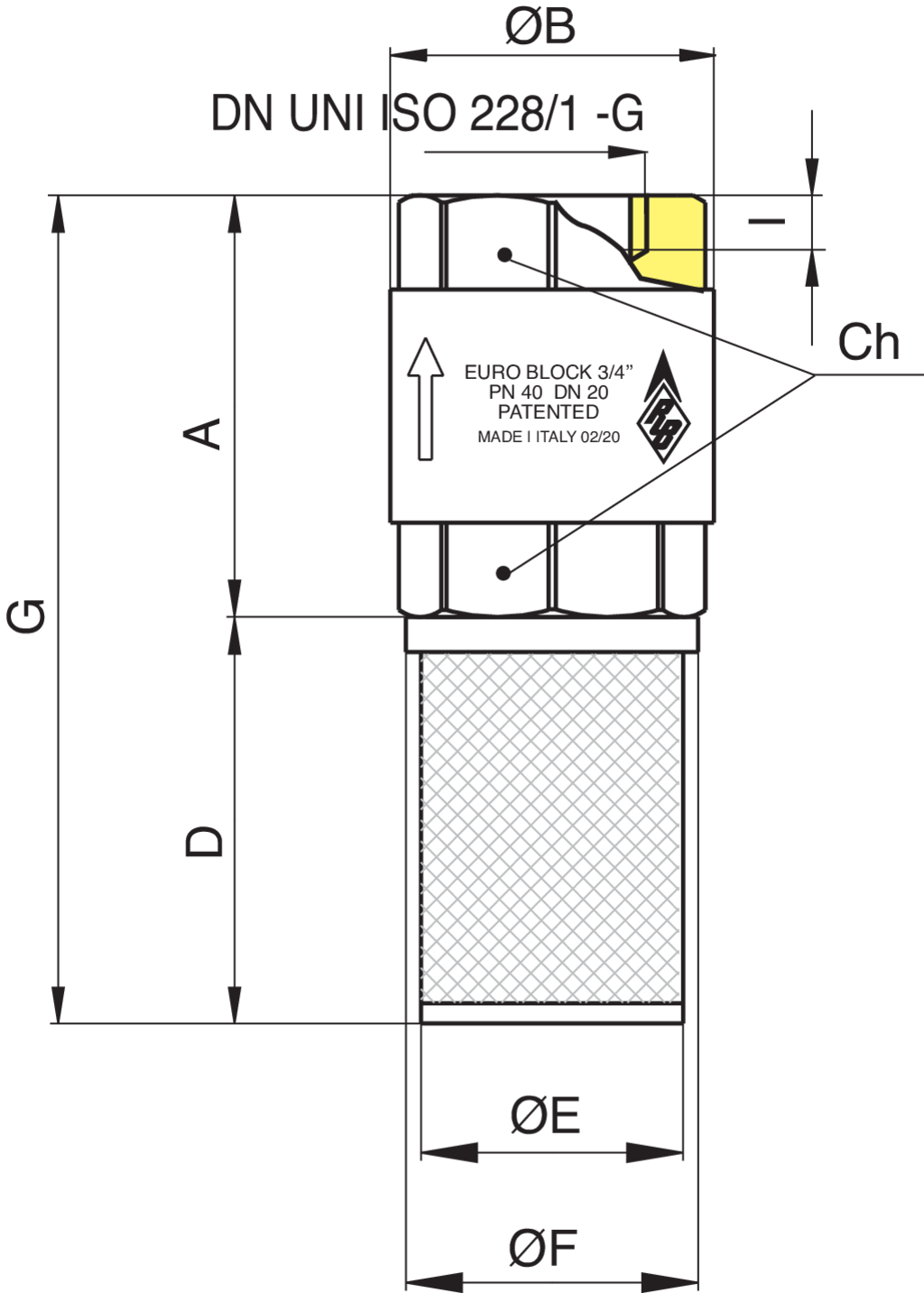

Technical specifications
SIZE
DN
BOX
MASTER BOX
CODE
I
Ch
ØB
A
D
ØE
ØF
G
Kv
PN
Kg
1/2"
15
15
60
10030004
12
25
28
44,5
43
23
26
87,5
3,7
40
0,10
3/4"
20
10
40
10030005
12
31
34,5
47,5
48
29
32
95,5
5,8
40
0,17
1"
25
10
40
10030006
14,5
38
42
56
48
38
41
104
8,6
25
0,27
1"1/4
32
6
12
10030007
16
48
52
62
57
45
49
119
13,8
25
0,43
1"1/2
40
4
8
10030008
18
54
61
70
68
50
55
138
20,2
16
0,62
2"
50
2
8
10030010
19
67
73
78
83
62
67
161
30,9
16
0,93
2"1/2
65
2
4
10030012
24
83
90
92
83,5
82
86
175,5
48,8
12
1,48
3"
80
1
2
10030014
29
98
113
113,5
99
94
99
212,5
79,4
12
2,51
4"
100
1
2
10030018
32
128
139
126,8
115
117
122
241,8
124,9
10
4,41
Temperature range: -20°C +100°C.
