JUNIORBLOCK
/
100210
JUNIORBLOCK
100210

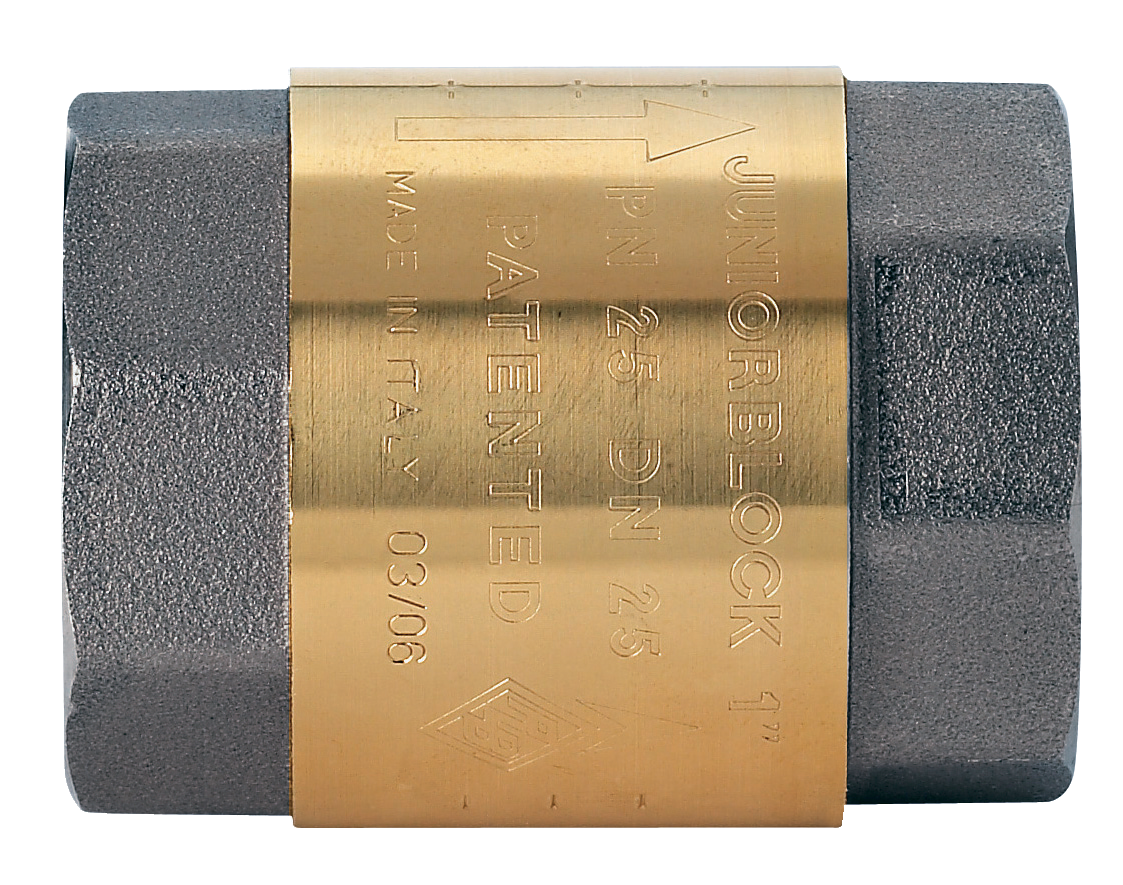

T.E.A.® check valve, reduced bore, UNI ISO 228/1-G F/F threaded.

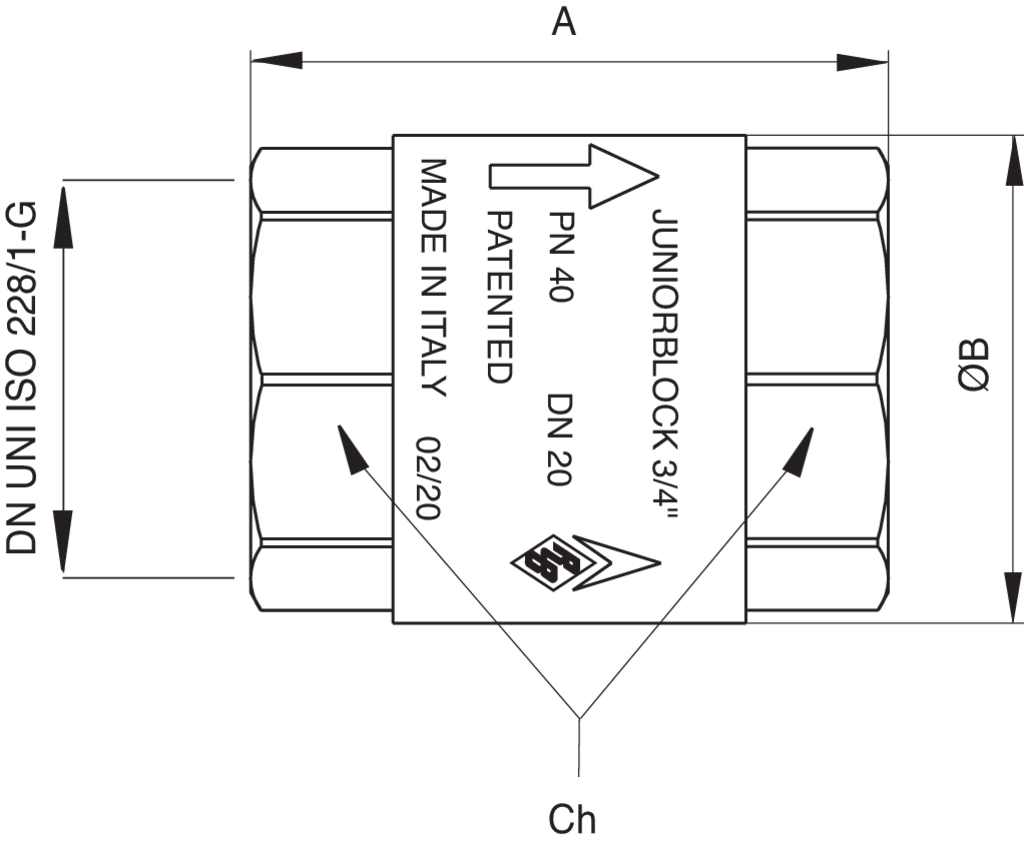

Technical specifications
SIZE
DN
BOX
MASTER BOX
CODE
I
Ch
ØB
A
Kv
PN
Kg
1/2"
15
20
160
10021004
12
25
28
44,5
3,7
40
0,10
3/4"
20
10
80
10021005
12
31
34,5
47,5
5,8
40
0,16
1"
25
10
80
10021006
14,5
38
42
56
8,6
25
0,25
1"1/4
32
6
12
10021007
16
48
52
62
13,8
25
0,40
1"1/2
40
4
8
10021008
18
54
61
70
20,2
16
0,58
2"
50
2
4
10021010
19
67
73
78
30,9
16
0,88
Temperature range: -20°C +100°C.
