WATER VALVES

5811

Water full bore ball valve with meter’s exit, thread female/nut, large check valve incorporated, pressure measurement connection aluminium butterfly handle and ball with automatic rinse system.

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	BRASS CW617N UNI EN 12420	1
2	END CONNECTION	BRASS CW617N UNI EN 12420	1
3	END CONNECTION	BRASS CW617 UNI EN 12420	1
4	BALL	BRASS CW617N UNI EN 12420	1
5	STEM	BRASS CW614N UNI EN12164-UNI EN12168	1
6	PACKING GLAND	BRASS CW614N UNI EN12164-UNI EN12168	1
7	MALE UNION TALE	BRASS CW614N UNI EN12164-UNI EN12168	1
8	T-HANDLE	ALUMINIUM EN-AC 46100 EN 1706	1
9	BALL SEAT	PTFE	2
10	STEM SEAL/THRUST WASHER	PTFE	2
11	CAP	BRASS CW614N UNI EN12164-UNI EN12168	2
12	O-RING	NBR	1
13	O-RING	NBR	2
14	O-RING	NBR	2
15	NUT	BRASS CW617N UNI EN 12420	1
16	NUT	STEEL	2
17	CHECK VALVE	POM	1

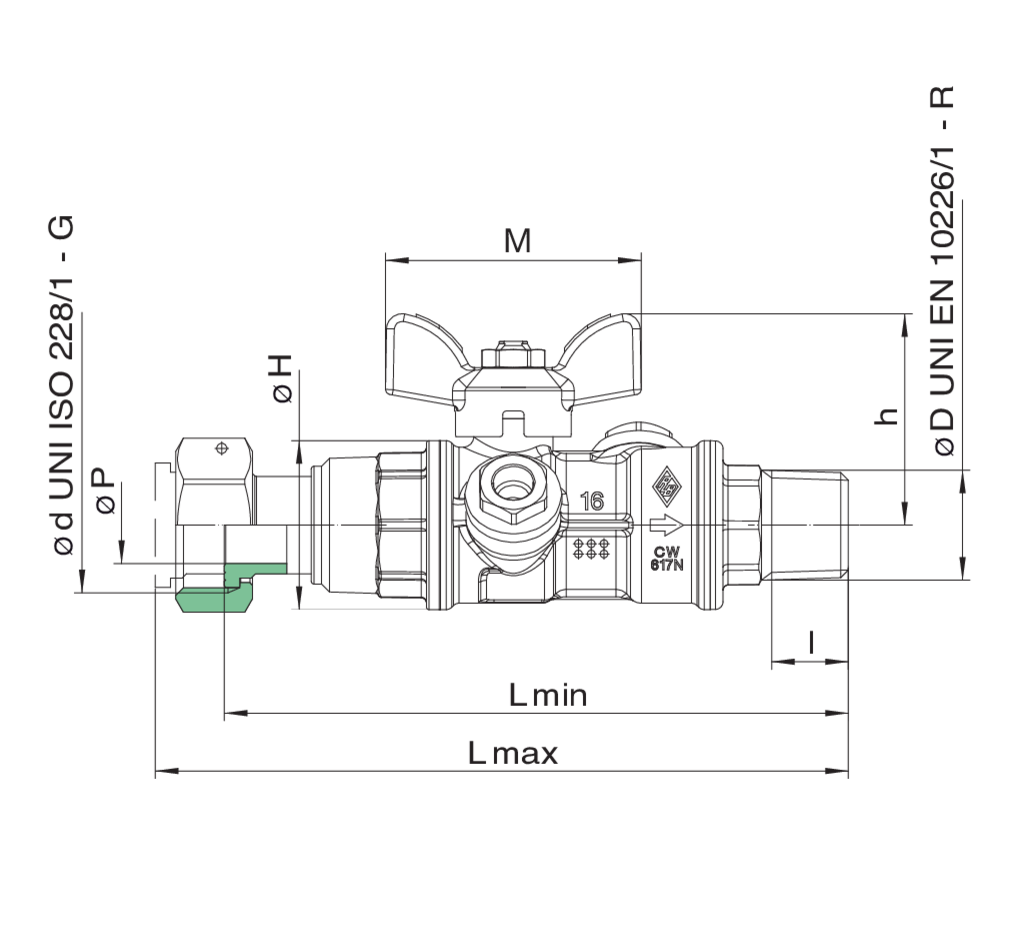

ØD x Ød	DN	BOX	MASTER BOX	CODE	ØP	I	ØH	L min	L max	h	M	Kv	PN	Kg
1/2" x 3/4"	15	10	40	5811260000	15	15	33	122	135,5	41	50	9	64	0,45
