ECOLOGY SERIES
/
WATER VALVES
/
2091
WATER VALVES

2091

Full bore ball valve for water meter entry, M/F threaded, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

Technical specifications

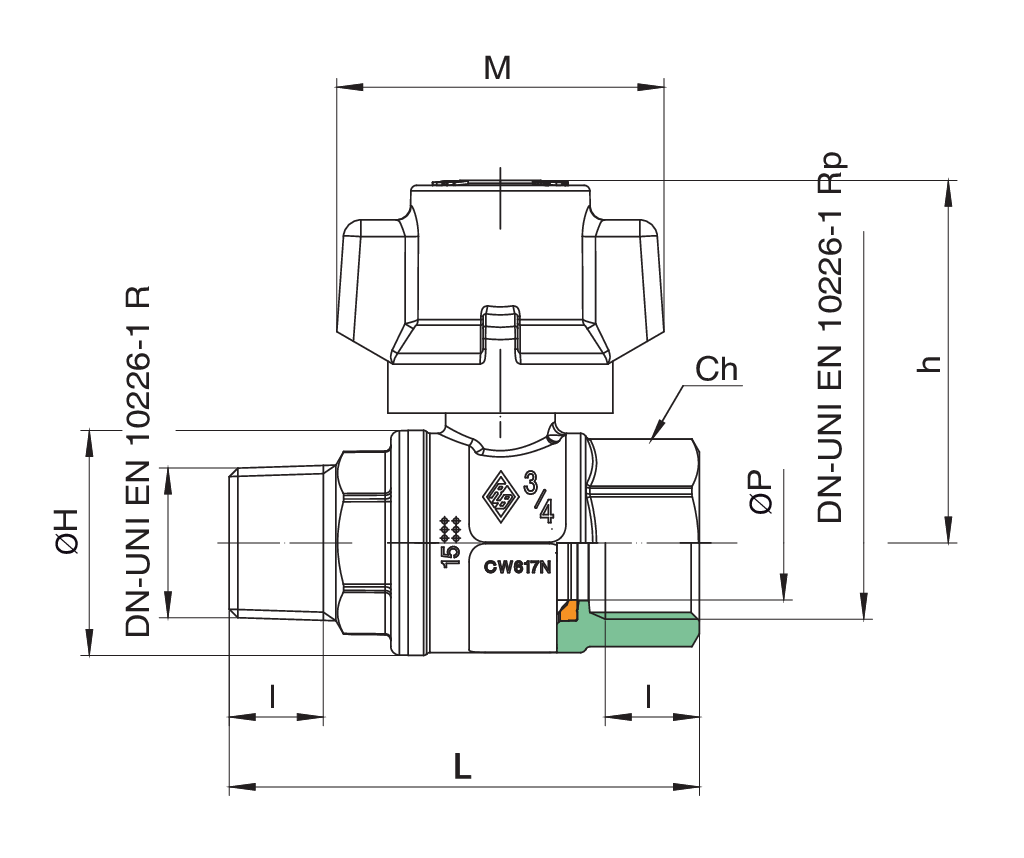

SIZE DN BOX MASTER BOX CODE ØP I L ØH Ch M h Kv PN Kg
1/2" 15 15 60 2091040001* 15 15 72,5 33 27 57 55,5 16,3 64 0,28
3/4" 20 10 40 2091050001* 20 16,3 81,5 39 32 57 63 29,5 64 0,39
1" 25 10 20 2091060001* 25 19,1 94,5 49 38 57 66,5 43 64 0,62

*Version with heptagonal-shaped stainless steel security nut.
