ECOLOGY SERIES
/
WATER VALVES
/
2090
WATER VALVES

2090

Full bore ball valve for water meter entry, F/F threaded, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

Technical specifications

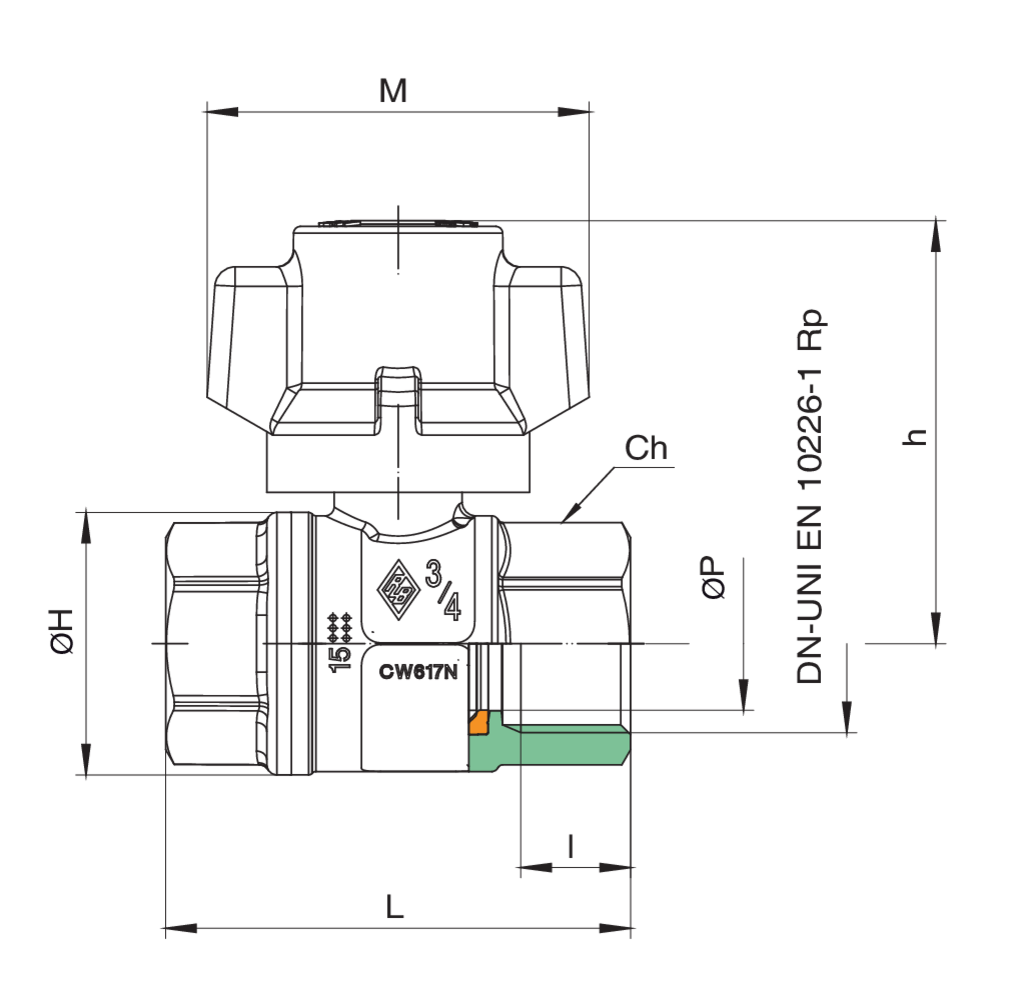

SIZE DN BOX MASTER BOX CODE ØP I L ØH Ch M h Kv PN Kg
1/2" 15 15 60 2090040001* 15 15 62 33 27 57 55,5 16,3 64 0,27
3/4" 20 10 40 2090050001* 20 16,3 69 39 32 57 63 29,5 64 0,37
1" 25 10 20 2090060001* 25 19,1 83 49 38 57 66,5 43 64 0,57

*Version with heptagonal-shaped stainless steel security nut.

Applications
Available media and videos
Catalogue
Price list
BIM
2090.zip
Back to the catalogue

Related products / Accesories
