CATALOGUE
/
ECOLOGY SERIES
/
WATER VALVES
/
2061
WATER VALVES
2061

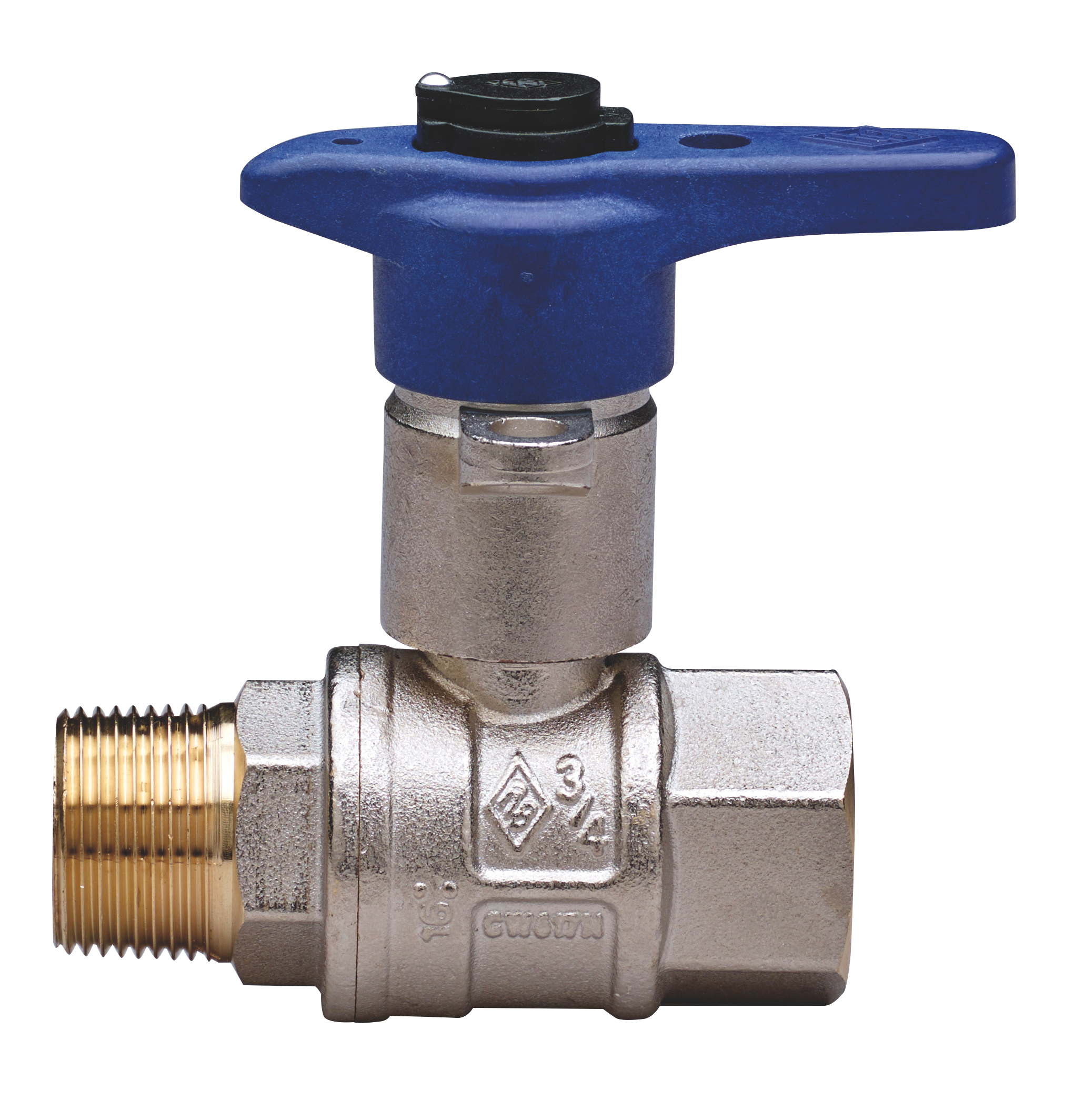

Water full bore ball valve, M/F threads, technopolymer handle, extractable and replaceable security lock and ball with automatic rinse system.

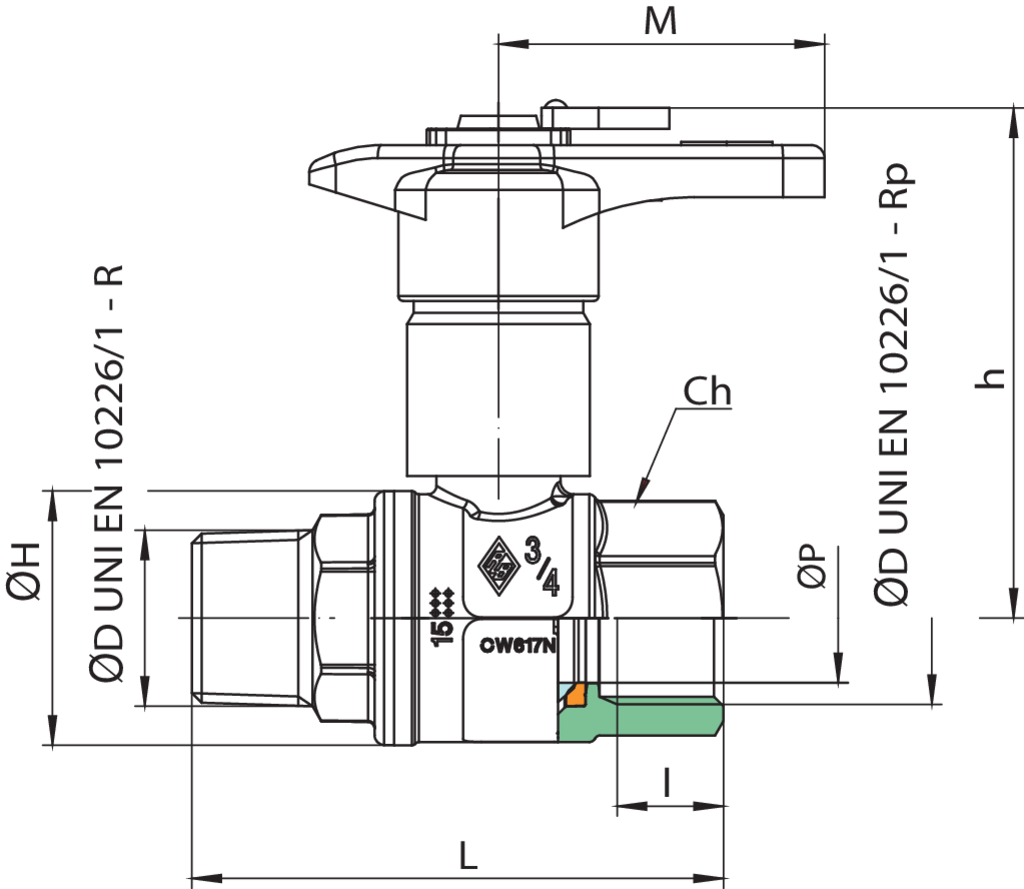

Technical specifications
Multiutility
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
L
ØH
Ch
M
h
Kv
PN
Kg
1/2"
15
20
80
2061040020
15
15
72,5
33
27
50
69
16,3
64
0,32
3/4"
20
20
80
2061050020
20
16,3
81,5
39
32
50
78
29,5
64
0,46
1"
25
20
40
2061060020
25
19,1
94,5
49
38
50
82
43
64
0,69
Idrotermo sanitaria (ITS)
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
L
ØH
Ch
M
h
Kv
PN
Kg
1/2"
15
5
20
2061040005
15
15
72,5
33
27
50
69
16,3
64
0,32
3/4"
20
5
20
2061050005
20
16,3
81,5
39
32
50
78
29,5
64
0,46
1"
25
5
10
2061060005
25
19,1
94,5
49
38
50
82
43
64
0,69
Applications
Available media and videos
Catalogue
Price list
BIM
2061.zip
Back to the catalogue
Related products / Accesories
580900KR
