ECOLOGY SERIES
/
WATER VALVES
/
2027
WATER VALVES
2027

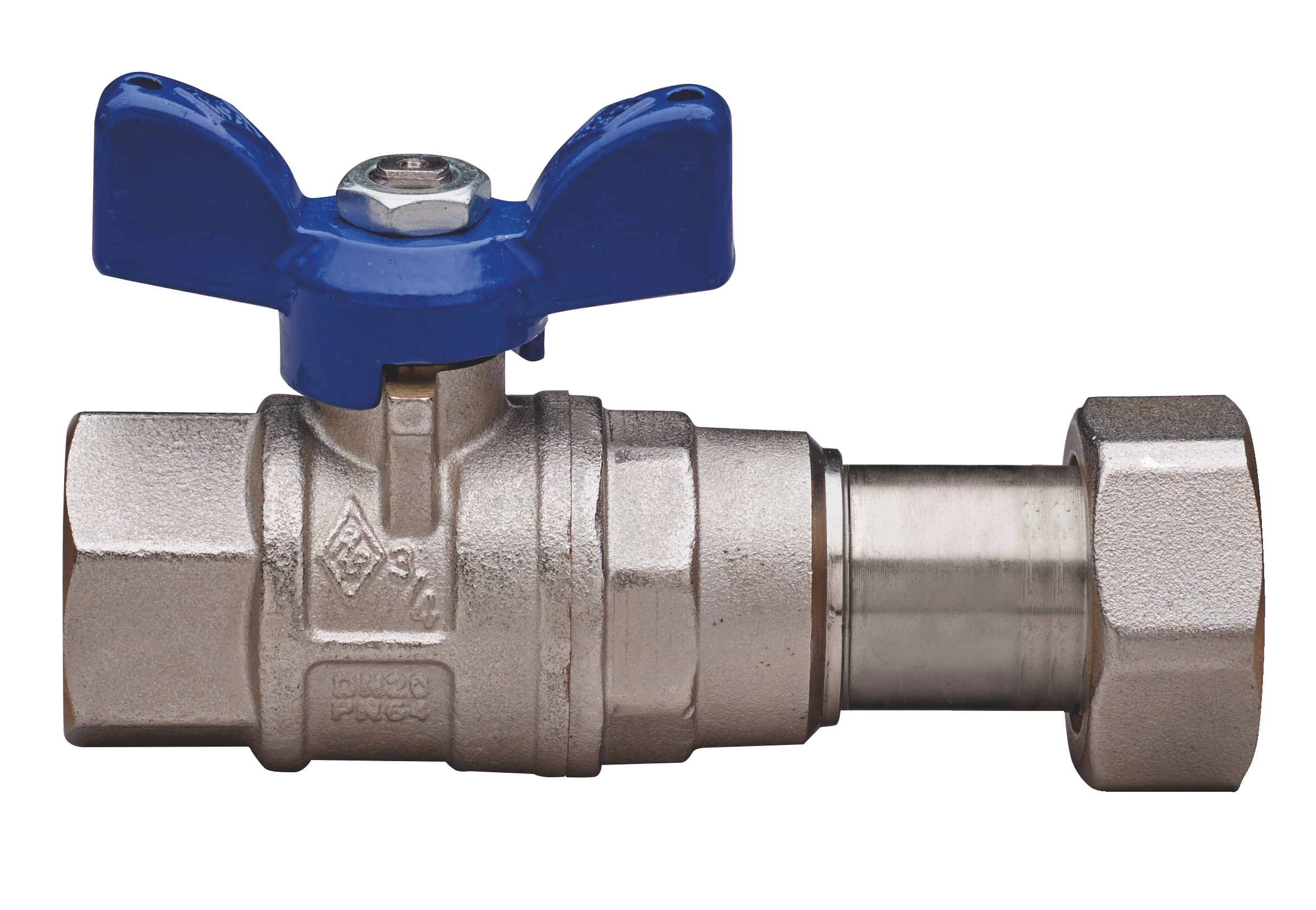

Water full bore ball valve with meter’s entrance, thread female/telescopic fitting, aluminium butterfly handle and ball with automatic rinse system.

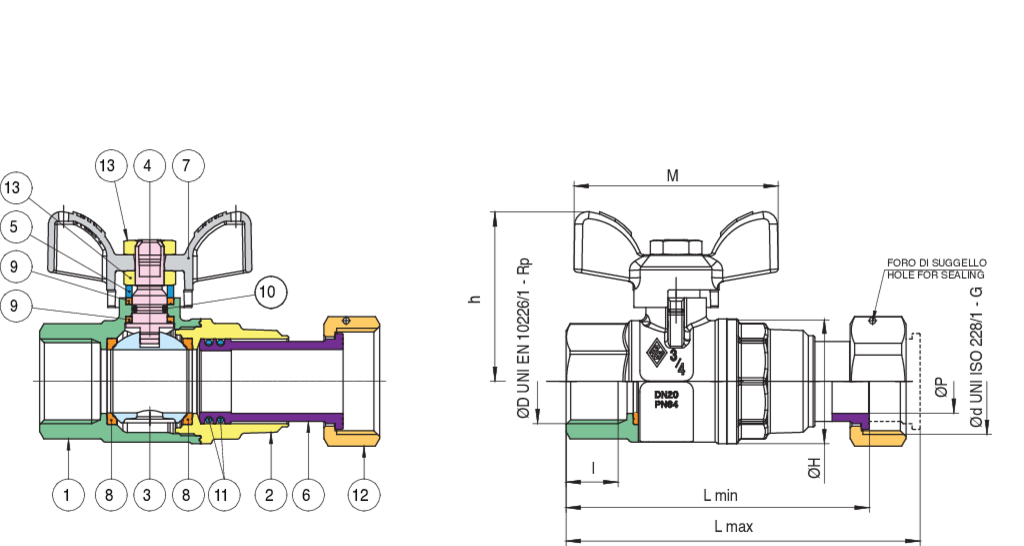

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
UNION TAIL
BRASS CW614N UNI EN 12164
1
7
T-HANDLE
ALUMINIUM EN-AC 46100
1
8
BALL SEAT
PTFE
2
9
STEM SEAL/THRUST WASHER
PTFE
2
10
O-RING
NBR
1
11
O-RING
NBR
2
12
NUT
BRASS CW617N UNI EN 12420
1
13
NUT
STEEL CL 04
2
ØD x Ød
BOX
MASTER BOX
CODE
ØP
I
Ch
ØH
L min
L max
h
M
Kv
PN
Kg
1/2" x 3/4"
10
40
2027260000
15
15
27
33
87,5
101
41
50
16,3
64
0,32
3/4" x 1"
10
20
2027580000
20
16,3
32
39
95
111
53
64
29,5
64
0,49
