BALL VALVES SERIES
/
MINI-LUX
/
3730
MINI-LUX
3730

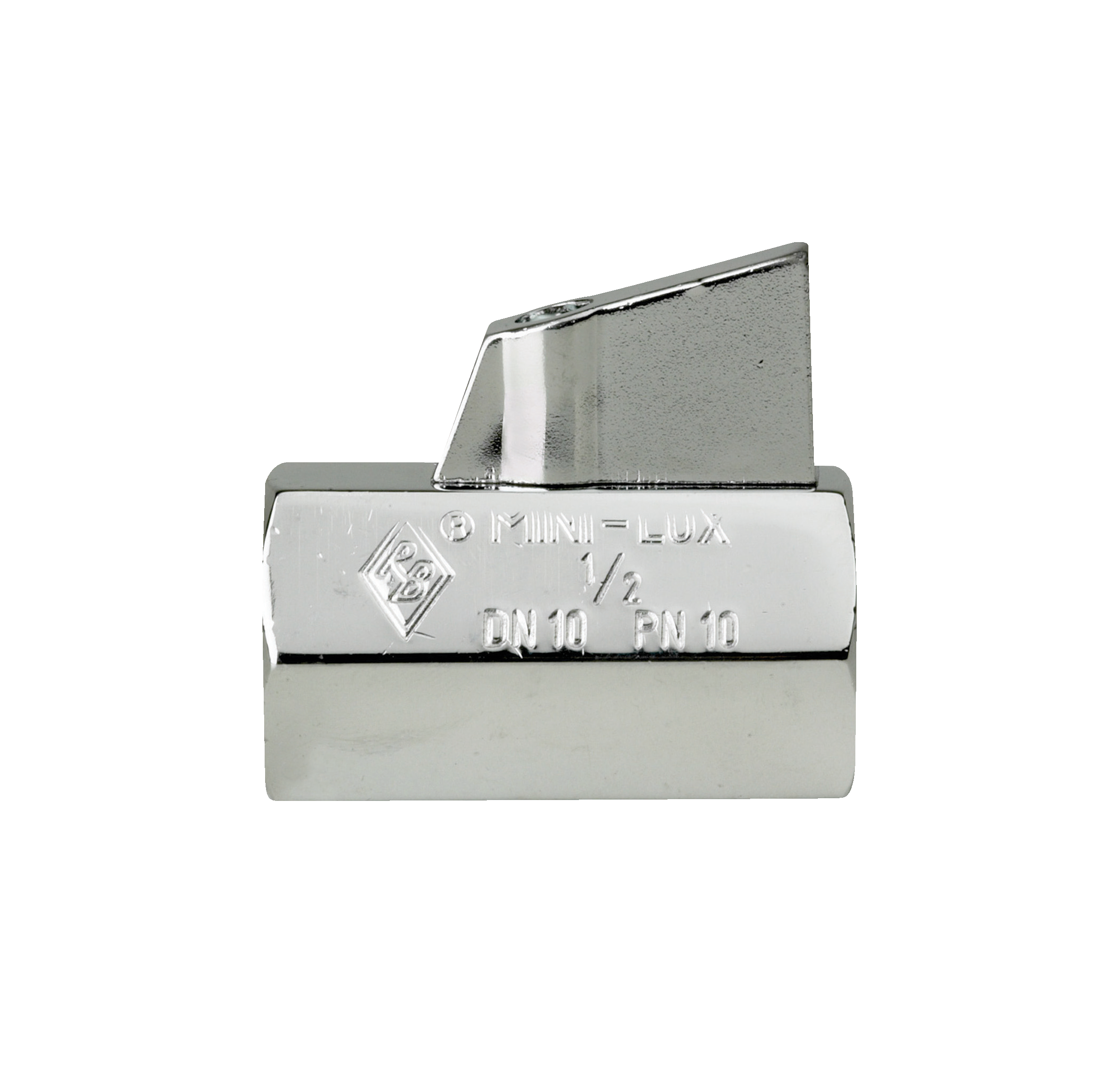

Ball valve, F/F threaded, chrome plated, with handle.

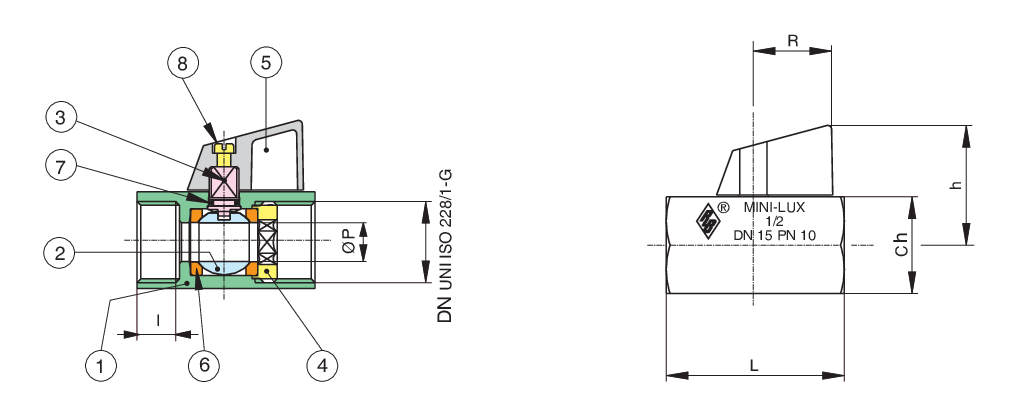

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12165
1
2
BALL
BRASS CW614N UNI EN 12164
1
3
STEM
BRASS CW614N UNI EN 12164
1
4
WASHER
BRASS CW614N UNI EN 12164
1
5
HANDLE
ABS
1
6
BALL SEAT
PTFE
1
7
O-RING
NBR
1
8
SCREW
STEEL DD11
1
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
L
h
Ch
R
Kv
PN
Kg
1/8"
6
30
180
3730010000
8
8
41
29
21
20,5
4,3
10
0,11
1/4"
8
30
180
3730020000
8
10
41
29
21
20,5
4,3
10
0,10
3/8"
10
30
180
3730030000
8
10
41
29
21
20,5
2,7
10
0,08
1/2"
15
20
120
3730040000
10
11
46
31
25
20,5
5,4
10
0,13
Temperature range: -20°C +90°C.
