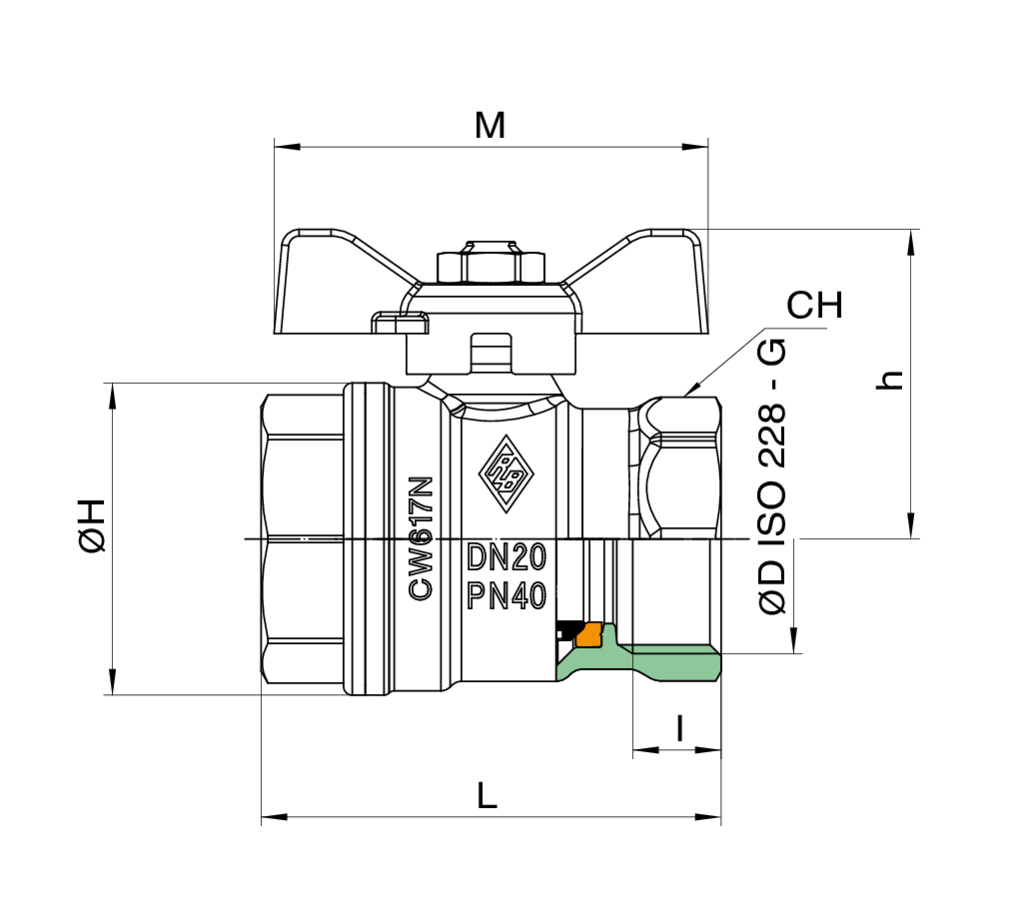

Technical specifications
SIZE DN BOX MASTER BOX CODE I L ØH Ch M h Kv PN Kg
1/2'' 15 20 80 1320040000 11 46,5 28,5 25 50 33 16,3 40 0,13
3/4" 20 10 40 1320050000 12 53 36 31 50 36 29,5 40 0,20
1" 25 10 20 1320060000 14 63,5 43,5 37,5 60 43 43 40 0,33

Temperature range: -20°C + 160°C.
