CLICK-SFER

9638

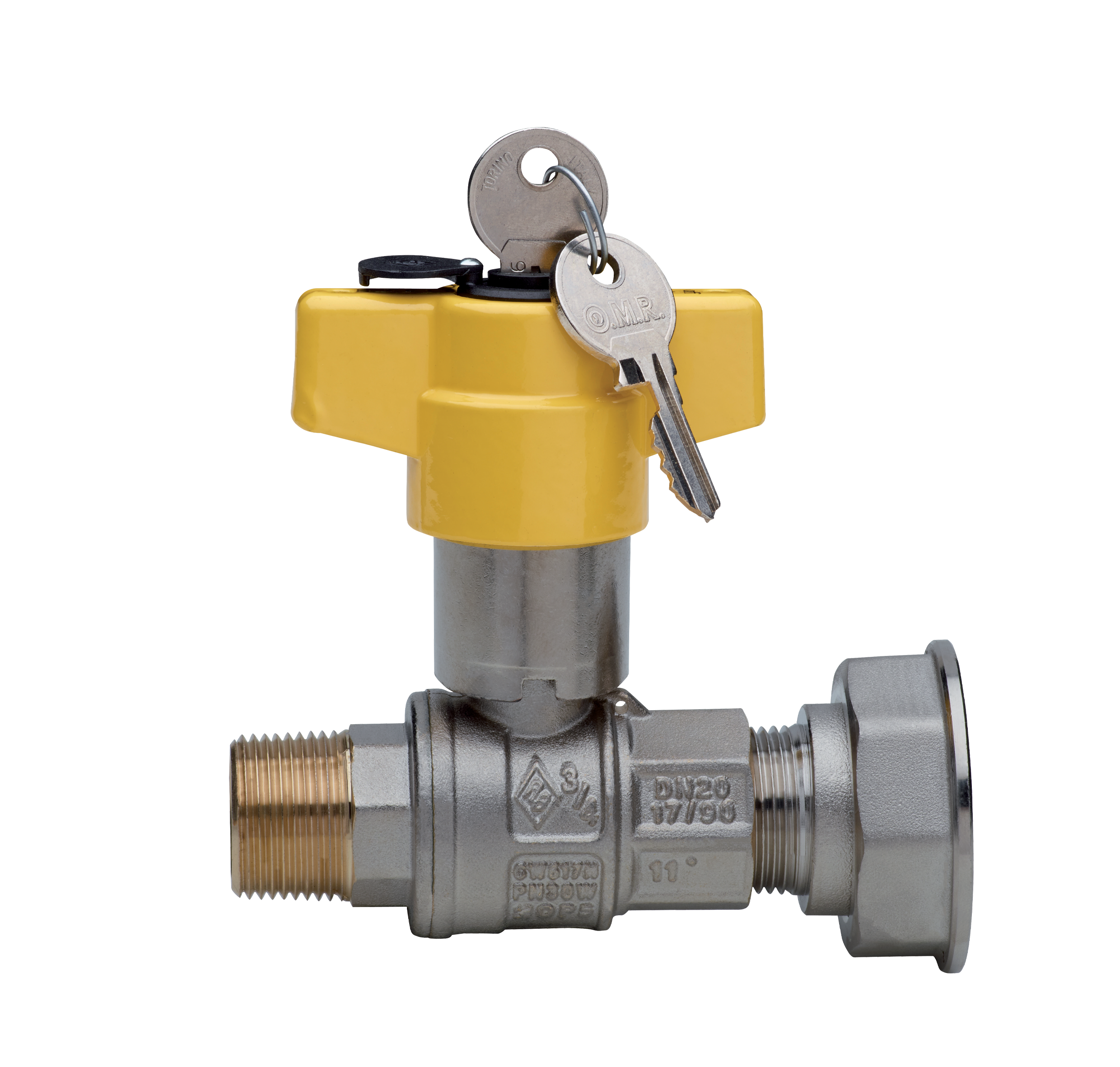

Full bore ball valve for gas, male thread with connection for gas meter, extractable and replaceable security lock.

Technical specifications

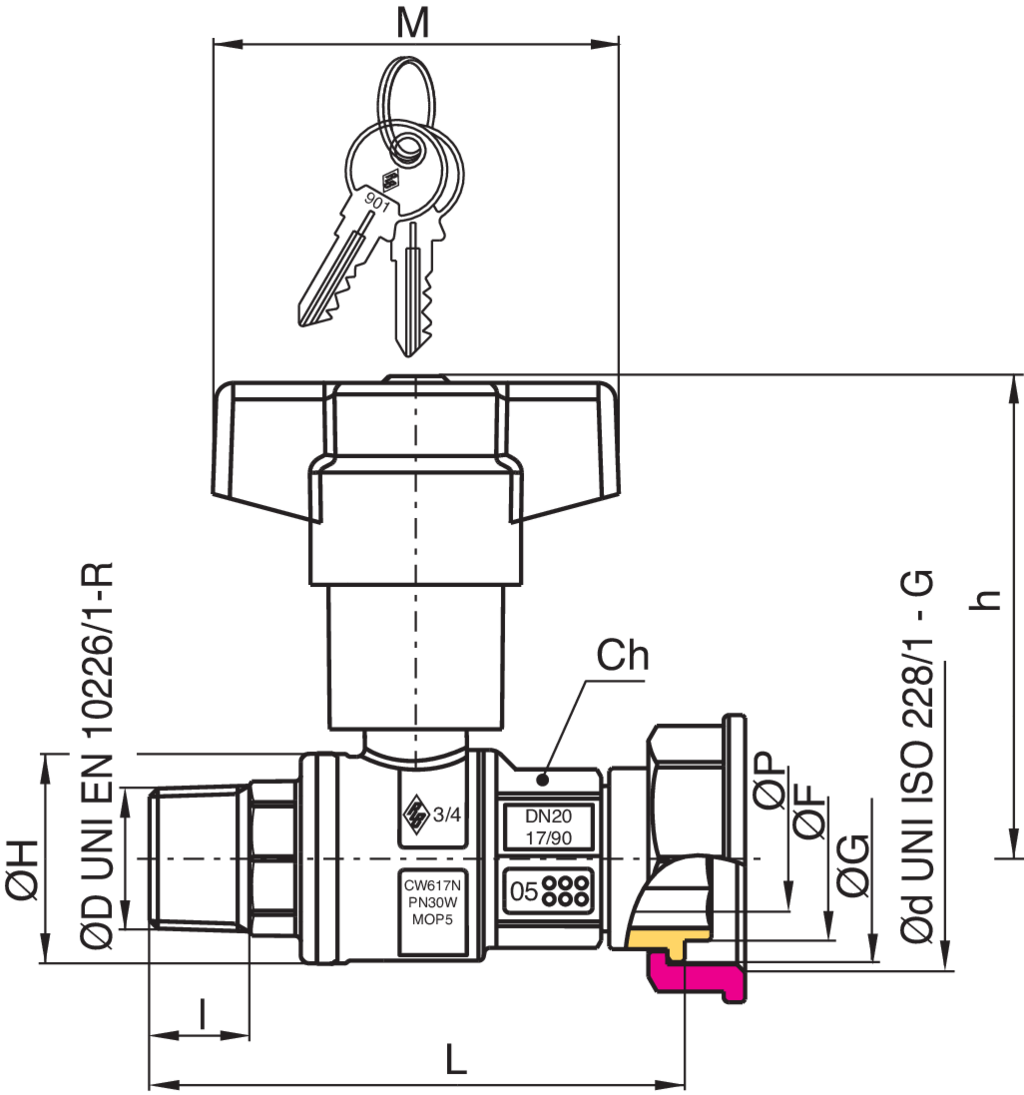

ØD x Ød	MASTER BOX	CODE	ØP	I	Ch	ØH	L	h	ØF	ØG	M	MOP	Kg
3/4" x 1"1/4	25	9638280925	20	16,3	46	39	99	86	31	39,5	70	5	0,88
1" x 1"1/4	25	9638290925	25	19,1	46	49	114	86	31	39,5	70	5	0,69

Temperature range: -20°C +60°C.
