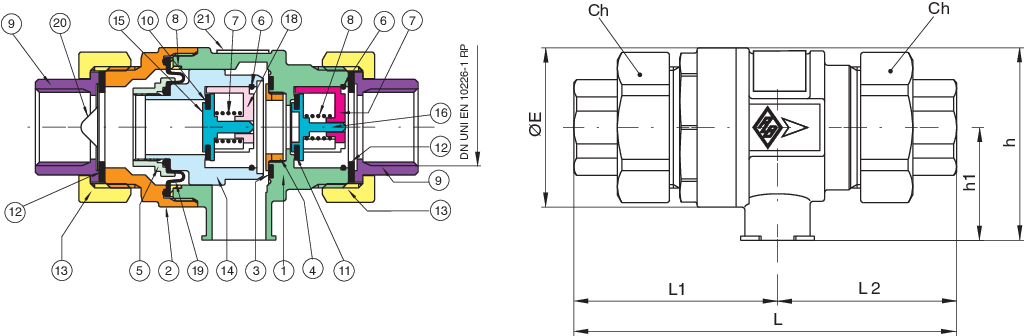

| 1 |
BODY |
BRASS CW617N UNI EN 12165 |
1 |
| 2 |
END CONNECTION |
BRASS CW617N UNI EN 12165 |
1 |
| 3 |
BUSH |
BRASS CW614N UNI EN 12164 |
1 |
| 4 |
RING NUT |
BRASS CW614N UNI EN 12164 |
1 |
| 5 |
RING NUT |
BRASS CW617N UNI EN 12165 |
1 |
| 6 |
SEEGER |
STAINLESS STEEL AISI 302 |
2 |
| 7 |
SPRING |
STAINLESS STEEL AISI 302 |
1 |
| 8 |
SPRING |
STAINLESS STEEL AISI 302 |
1 |
| 9 |
CONNECTION |
BRASS CW617N UNI EN 12165 |
2 |
| 10 |
FLAT SEAT |
NBR |
1 |
| 11 |
FLAT SEAT |
NBR |
4 |
| 12 |
FLAT SEAT |
FIBER |
2 |
| 13 |
NUT |
BRASS CW617N UNI EN 12165 |
2 |
| 14 |
OBSTRUCTOR |
BRASS CW617N UNI EN 12165 |
1 |
| 15 |
OBSTRUCTOR |
BRASS CW617N UNI EN 12165 |
1 |
| 16 |
OBSTRUCTOR |
BRASS CW617N UNI EN 12165 |
1 |
| 17 |
OBSTRUCTOR GUIDE |
BRASS CW617N UNI EN 12165 |
1 |
| 18 |
OBSTRUCTOR GUIDE |
BRASS CW617N UNI EN 12165 |
1 |
| 19 |
MEMBRANE |
NBR |
1 |
| 20 |
STRAINER |
STAINLESS STEEL AISI 304 |
1 |
| 21 |
METALLIC LABEL |
ALUMINIUM EN-AC 46100 EN 1706 |
1 |
